TotalAlert Infinity™ HTM Medical Gas Notification System

4.4 Setting Up a Central Alarm

The central alarm monitors whether source equipment
is working properly.
The information for the signals connected in the field
needs to be entered into the alarm using the touch
screen interface.

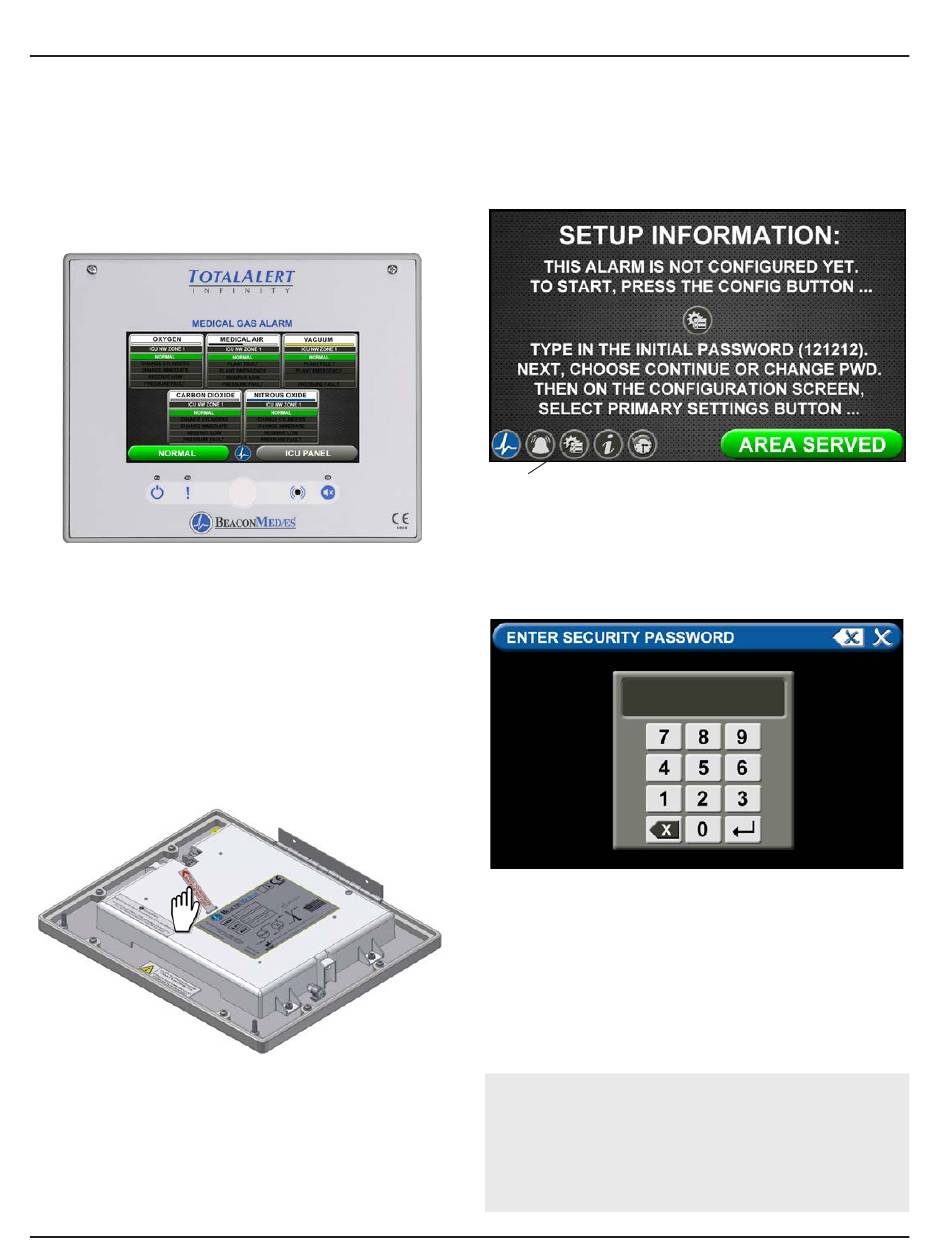

Figure 44: Central Alarm Main Screen
To set up or change the configuration of an alarm,
follow the steps outlined under Alarm Type Tab.
4.4.1 Initial Setup of an Unconfigured
Central Alarm
To begin setup of the alarm, first pull the battery tab
located on the back of the front panel to activate
battery backup of the alarm.
Figure 45: Battery Pull Tab
4107 9016 60.01
The SETUP INFORMATION screen is the first screen that
users will see on an unconfigured alarm.
(The MAIN screen is the first screen that users will see
on a configured alarm).
• Touch the Configuration button.
Configuration
Button
Figure 46: Setup Information Screen
Entering the Password
The ENTER SECURITY PASSWORD screen appears.
Figure 47: Entering the Security Password
• Enter the security password. (The default password
is 121212.)
• Touch the Enter button.
• Touch Continue to advance to the CONFIGURATION
screen.
• The CONFIGURATION screen will display as
unconfigured and ready for setup
Note:
If you would like to change the password, touch
Change Password. Enter a 4-10 digit password, and
touch the Enter button. Confirm the new password.
Touch the X button in the upper right to close the
SECURITY PASSWORD screen.
4-14
