TotalAlert Infinity™ HTM Medical Gas Notification System

1.2.2 Central Alarm

Features:
Displays a maximum of 24 signals. Combinations can
include:
• Locally wired BeaconMedaes Line Contact
Monitored Signals (Up to 20)
• Medipoint/Shire Network signals
• Ethernet Wired signals (From up to 8 panels)
1.2.3 Area Alarm
Features:
Monitors up to 8 Digital gas sensors.
• Digital pressure/vacuum read out with Low/
Normal/High indicators
• Customizable gas ID labels with user-defined
location labels for each monitored gas
• 1/4" BSPP connection on gas sensors
• Gas Specific Digital ID for each gas sensor

1.2.4 Combination Alarm

Monitors a mix of BeaconMedaes plant signals, digital
gas sensor modules, and 4-20mA transducers.
Features:
• User-defined values for monitoring any two or
three-wire 4-20mA transducer
4107 9016 60.01

1.2.5 Boards

NOTE:
I = 4-20mA Inputs
X = Source Signal Inputs
Y = Dry-Contact Relay Outputs
D = Digital Gas Sensor Inputs
B03 Advance Board
Features:
Contains hardware for advanced features of the
TotalAlert Infinity™ Alarm.

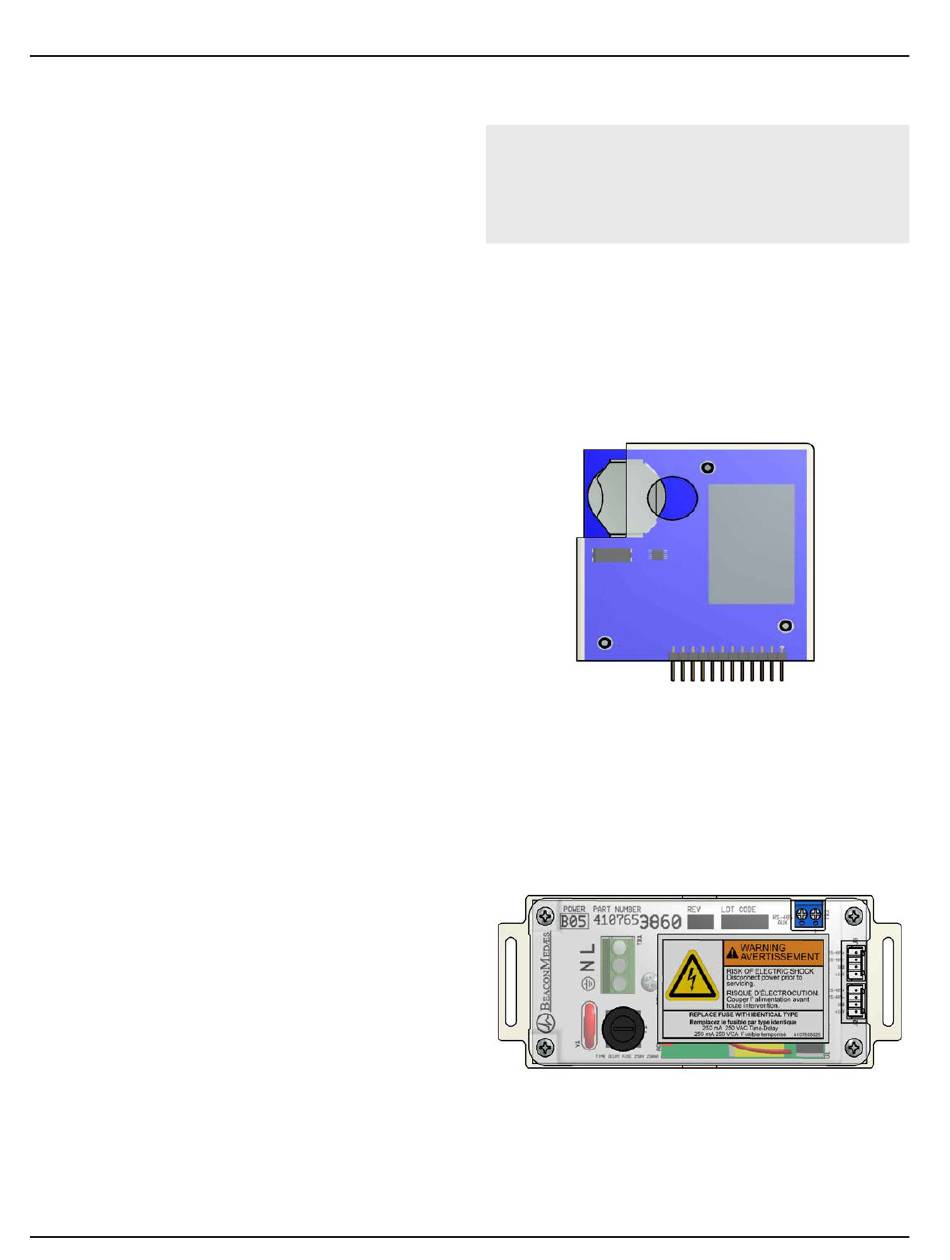

Figure 1.3: B03 Advanced Board
B05 Power Supply Board
Features:
• Supplies 24VDC to all circuit boards in the alarm.
Figure 1.4: B05 Power Board
1-2
