- Page 1 Service Manual Gemini, ® ® Diamond II and Diamond Medical Gas Outlets for Concealed Piping and Console Applications Andersen Medical Gas 12 Place Lafitte Madisonville, LA 70447 http://www.TheMedicalGas.com 1-866-288-3783 Text MAN 01-049 Part No. 6-847706-00 Rev. B00 Pg. 1...
-
Page 2: Table Of Contents
Table of Contents Definition of Statements General Product Description.........3 Statements in this manual preceded by the following words are of special significance. Tools and Service Materials ........4 WARNING: Means there is a possibility Cleaning and Lubrication ........4 of injury or death to yourself or others. Inspection and Testing ..........4 CAUTION: Means there is a possibility Outlet Identification ..........5... -
Page 3: General Product Description
General Product Description BeaconMedæs medical gas and vacuum quick- DISS outlets are typically used in ceilings of connect outlets provide a means of connecting to operating rooms or in place of quick-connect medical gas piping system. When appropriate outlets. Connection to outlet is by means of a nut adapter is inserted into outlet, primary valve is and nipple. -
Page 4: Tools And Service Materials
Tools and Service Materials Description Manufacturer Lubricant Krytox GPL205 ® BeaconMedæs P/N 6812-2000-403 No. 2 Phillips screwdriver Local source No. 2 Flat-blade screwdriver Local source Oxygen compatible leak detector solution Sherlock or equivalent Cleaning and Lubrication BeaconMedæs outlets are cleaned for oxygen or the indicated service. -
Page 5: Outlet Identification

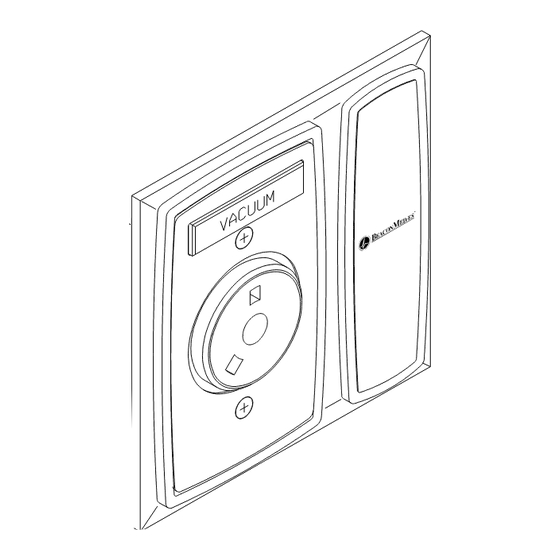

Outlet Identification Before servicing medical gas outlets, it is very important to identify exact type and vintage of outlet. Wall Outlets Gemini wall outlets are identified by a Beacon Medical or BeaconMedæs logo on right hand side of outlet. ® Diamond III/DISS III wall/ceiling outlets may be identified by the words “Hill-Rom”... -
Page 6: Outlet Assembly Ordering
Outlet Assembly Ordering Complete assemblies for concealed piping and console applications. Gemini Assembly Numbers Outlet Rough-in Finish Type Service Assembly Assembly Gemini Oxygen 6-234510-00 6-234610-00 Concealed Nitrous Oxide 6-234511-00 6-234611-00 Quick-Connect 6-234512-00 6-234612-00 Vacuum 6-234513-00 6-234613-00 WAGD 6-234519-00 6-234619-00 Vacuum Slide 6-234500-00 6-234600-00 Blank... -
Page 7: Service
Service Notify appropriate hospital personnel when NOTE: performing service or maintenance to medical gas On recessed and surface mount outlet models, systems. Consult Troubleshooting Guide to screws are held in place by rubber washers; determine required repair. Outlets incorporate a console models use elastic stop nuts. -
Page 8: Troubleshooting Guide
Troubleshooting Guide Symptom Possible Cause Corrective Action Quick-Connect or DISS Valve Leaks… • without quick-connect adapter • Faulty primary seal • Replace primary seal in place. • Faulty rubber bushing • Replace rubber bushing • with quick-connect adapter in • Faulty primary seal •... -
Page 9: Replacement Components
Replacement Components Gemini and Diamond III Outlets ® Concealed Wall Outlet Back Body Console Wall Outlet Back Body Item Part Number Description 0203-3217-870 Spring (Bronze) for pressure gases (pkg of 10) 0203-3218-870 Spring (Stainless Steel) for vacuum and WAGD (pkg of 10) Rubber Bushing 6-525344-00 Secondary Check (each) - Page 10 Replacement Components Gemini and Diamond III Outlets ® Gemini Quick-Connect Concealed Wall Outlet ® Diamond III Quick-Connect Wall Outlet Item Part Number Description Item Part Number Description 6-833436-PG Spring (pkg of 10) 6-833436-PG Spring (pkg of 10) 0221-1587-870 Piston (pkg of 10) 0221-1587-870 Piston (pkg of 10) 6-622589-PG...
- Page 11 Replacement Components Gemini and Diamond III Outlets ® Gemini Quick-Connect Console Outlet ® Diamond III Quick-Connect Console Outlet Item Part Number Description Item Part Number Description 6-833436-PG Spring (pkg of 10) 6-833436-PG Spring (pkg of 10) 0221-1587-870 Piston (pkg of 10) 0221-1587-870 Piston (pkg of 10) 6-622589-PG...
- Page 12 For technical support or to place an order call: BeaconMedæs 13325 Carowinds Boulevard 1 888 4 MEDGAS Charlotte, NC 28273 (1-888-463-3427) Andersen Medical Gas Fax (866) 635-3296 Phone (704) 588-0854 www.beaconmedaes.com Fax (704) 588-4949 12 Place Lafitte Madisonville, LA 70447 http://www.TheMedicalGas.com...
