TotalAlert Infinity™ HTM Medical Gas Notification System

4.0 Operation

4.1 Overview

The TotalAlert Infinity™ Medical Gas Notification
System is a touchscreen gas pressure and system
monitoring alarm created for ease of use.

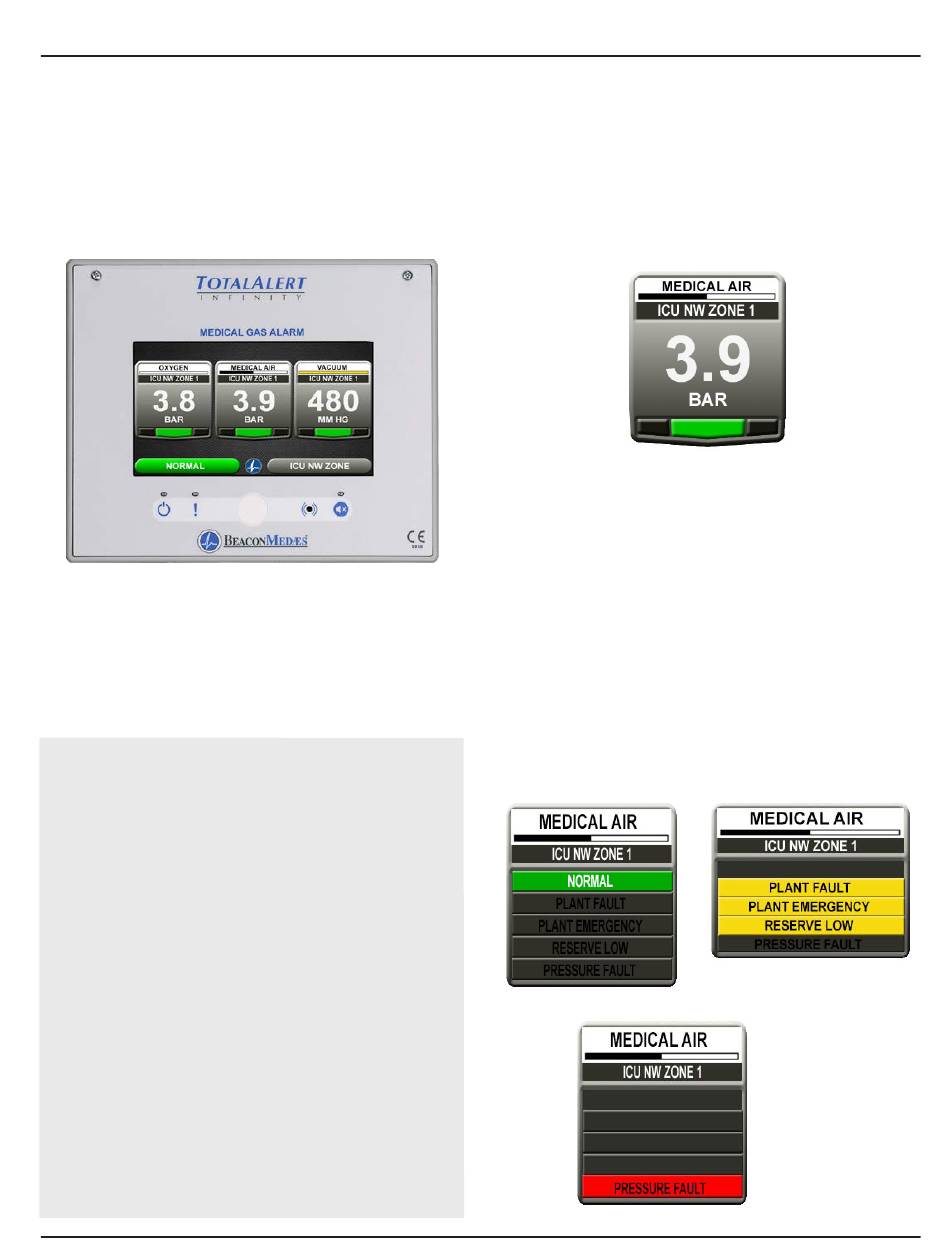

Figure 1: Area Alarm Main Screen

4.1.1 Main Screen

The first screen that users see on a configured unit is
the MAIN screen. The MAIN screen is the main view for
the alarm and shows the pressure status of all of the
gases or source signals the alarm is monitoring.
NOTES:
The main screen will appear different depending
on whether the alarm panel is configured as an
Area, Central or Combination.
An Area alarm main screen will show gas
pressure badges, a central alarm main screen will
show source badges, and a combiantion alarm
main screen will show both gas badges and source
badges.
To provide an aesthetic display and maintain
consistency in accordance with recognized and
established medical gas service sequencing, it is
recommended that displays are positioned in the
following order on each alarm panel starting with
the left hand column:
- Medical Oxygen
- Nitrous Oxide
- Oxygen/Nitrous Oxide Mix (50/50)
- Medical Air 400 kPa
- Medical Air 700 kPa
- Medical Vacuum

4.1.2 Gas Badge

Every gas monitored by the alarm will have a gas badge
which will show the following information:
• Gas being monitored
• Location where gas is being used
• Gas pressure value
• Gas pressure status (Low, Normal, or High)
Figure 2: Gas Badge

4.1.3 Source Signals

Every source signal monitored by the alarm will display
the following information once configured:
• Equipment being monitored
• Location of the source equipment
• Signal being monitored
• When all conditions are normal it will show
"NORMAL" in green (Figure 4.3). If the conditions are
out of normal range, it will show yellow (warning).
During a pressure fault condition it will show
"PRESSURE FAULT" in red and the normal message
will disappear (Figure 4.4).
Each source badge can show the status of up to 4
signals.
Normal
Figure 3: Source signal status
4-1
Warning
Pressure Fault
