TotalAlert Infinity™ HTM Medical Gas Notification System

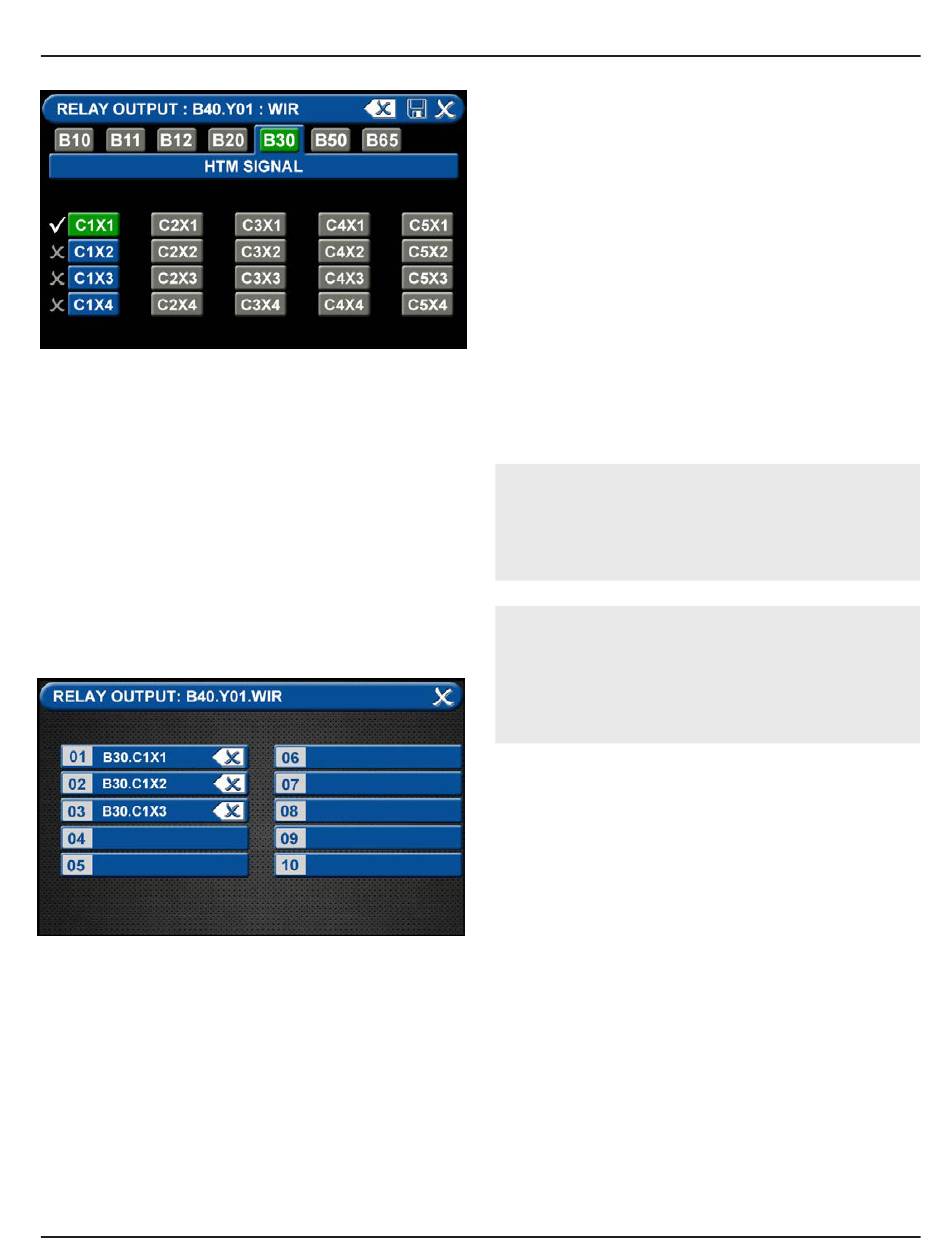

Figure 125: Relay Output One Signal
3.
"Many Signals" allows the user to group multiple
signals on a single relay output. If any of the signals
goes into alarm condition, the relay output will
report an alarm condition. Press "Many Signals"
to move to the Relay Output screen and select
from 1 to 10 signals to group together. Select the
number 01 to start, then select the first signal to
be grouped by pressing the corresponding number
on the Relay Output (such as C1X1 from the B30
board). Press Save to return to the Many Signal
Relay Output screen. Next select 02 to capture
the second signal to be monitored. Repeat up to a
grouping of 10 signals.
Figure 126: Relay Output Many Signals

4.7.3 Wired Ethernet Setup

The TotaAlert Infinity™ Notification System allows for
networking via standard Ethernet. Any alarm panel can
be remotely observed on the network using a standard
web browser.
IP Address using DHCP method: Upon power-up of
the system, the device will search for a DHCP server. If
a DHCP server is found, IP Address, subnet mask and
gateway are automatically obtained. If not found, the
device will check for a DHCP server every 30
seconds. When found, the IP Address, subnet mask and
gateway are automatically obtained.
IP Address using Static method: Upon power up of the
system, the device will immediately
begin using the fixed IP configuration.
Only facility information systems personnel should
set up the network interface. If the set up is done
improperly, equipment may not perform properly.
The information systems personnel should be no-
tified before changing any of the network settings.
Changing the settings could keep the equipment
from working properly.
4-37
CAUTION:
CAUTION:
4107 9016 60.01
