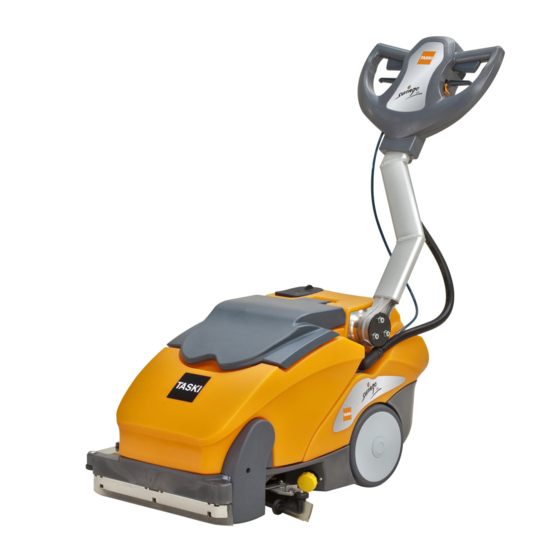

Taski swingo 350B Technical Manual

Hide thumbs Also See for swingo 350B:

User manual (390 pages)

Table Of Contents

100

101

102

103

page of 103

/ 103
Contents
Table of Contents
Bookmarks

Table of Contents

Quick Links

Need help?

Do you have a question about the swingo 350B and is the answer not in the manual?

Questions and answers

Summary of Contents for Taski swingo 350B

Page 1 Technical Manual Edition: V2.00/2013...
Page 2: Table Of Contents
Technical Manual Index Forward Target Technical Training Technical Manual Summary Elementary Health & Safety General General information 3.1.1 Part reference 3.1.2 Consumable supplies 3.1.3 Direction description 3.1.4 Power source Required material 3.2.1 Tools 3.2.2 Material Technical data Machine range Technical information 4.2.1 Machine profile 4.2.2...
Page 3 Technical Manual Guide bar 5.2.1 Adjusting of bowden cable handle 5.2.2 Removing of toothrocker 5.2.3 Mounting of toothrocker 5.2.4 Removing of bowden cable handle adjustment old setup 5.2.5 Mounting of bowden cable handle adjustment old setup 5.2.6 Removing of bowden cable handle adjustment new setup 5.2.7 Mounting of bowden cable handle adjustment new setup 5.2.8...
Page 4 Technical Manual 6.3.1 Removing of electronics 6.3.2 Mounting of electronics 6.3.3 Electronics connections Charger 6.4.1 Removing of charger 6.4.2 Mounting of charger 6.4.3 Charger connections Schematics 6.5.1 Battery connections 6.5.2 Electrical schematics Additional information Available GTS Newsletter/Instructions Revision Appendix Notes 26.
Page 6: Target
Technical Manual Foreword Target To serve our customers faster and more efficient it is important to achieve a general standard of technical know how with our partners in the market. Therefore we developed a Technical Training concept which is based on e-spares. The concept consists of a Technical Manual and a Technical Training.
Page 7: Summary
Technical Manual essential for the daily business. The Technical Manual can be downloaded from e- spares/documents. Summary We are convinced that the Technical Manual concept together with the Technical Training are powerful tools, which will help our service organisations to achieve a higher level of quality in repairs and customer satisfaction.
Page 9: Health & Safety
Technical Manual Elementary Health & Safety Scrubber dryers may be powered by mains electricity or batteries. There are risks asso- ciated with both, which call for proper precautions, such as the provision of good venti- lation and the elimination of risk of ignition. All work, carried out on such machines, should only be performed by trained personnel in accordance with local regulations.
Page 10 Technical Manual grees, that can be most damaging to electronical devices. Static electricity, is a natural phenomenon and consequently electrostatic discharge is the primary cause of countless problems affecting industry, business and personal life. These problems can be as simple as the shock resulting from walking across a carpet; as costly as the destruction of sensitive electronic components.
Page 12: General Information
Technical Manual General General information 3.1.1 Part reference Explicitly mentioned parts are defined by references corresponding to the e-spares spare parts list. E.g. Tank axle (02/118) corresponds to the parts list on e-spares, sub assembly 2, position 118. 3.1.2 Consumable supplies If you have to remove cable ties then position the new ones at the original place.
Page 13: Required Material
Technical Manual Required material 3.2.1 Tools • A standard range of tools is required e.g. • Fork spanners. • Allen keys. • Torx keys. 3.2.2 Material • No special tools are required. The above listings are only a recommendation for the technical training.
Page 15: Machine Range
BMS with battery * Table 1: Machine range Remarks * only for DDM countries (Direct Delivery Machines). SKU‘s for all TASKI swingo 350 types are the „naked machine“. Brush and batteries have to be ordered separately. 26. March 2013 Edition: V2.00/2013...
Page 16: Technical Information
Technical Manual Technical information 4.2.1 Machine profile Pos. Value Theoretical performance (m²/h) 1140 Practical performance (m²/h) Working width (mm) Squeegee width (mm) Solution tank Recovery tank Table 2: Machine profile 4.2.2 Technical data Pos. Value Noise level (dB(A)) <70 Vibration (m/s2) Approvals CE;...
Page 17: Machine Speed
Technical Manual 4.2.3 Machine speed Pos. Value Transportation speed (km/h) Cleaning speed (km/h) Ramp max. Table 4: Machine speed 4.2.4 Dimensions and weights Pos. Value Dimensions L/W/H (mm) 790/450/430 Door pass through (without) squeegee (mm) 530 (450) Net weight; empty tank, incl. batteries (kg) Weight, ready to use (kg)
Page 18: Battery
Technical Manual Picture 1: Dimensions 4.2.5 Battery 4.2.5.1 Battery compartment Pos. Value Battery compartment L/W/H (mm) 195/268/180 Table 6: Battery compartment 26. March 2013 Edition: V2.00/2013 Copyright © 2013, Diversey Inc.
Page 19: Battery Specifications
Technical Manual Picture 2: Battery compartment 4.2.5.2 Battery specifications Please use batteries from Exide/Sonnenschein, as this is our preferred partner. For the correct connection of the batteries, pay attention to the voltage of each battery and the correct connection. Therefore refer to e-spares.
Page 20: Charger
Technical Manual Supplier Type Excide Sonnenschein GF12025YG Table 7: Dry (gel) batteries 4.2.6 Charger Pos. Value Primary 110-127/220- Primary (Hz) 50 - 60 Secondary Secondary Protection type Approval UL, in process Cable length/BMS cable Table 8: Charger 4.2.7 Brush system Pos.
Page 21: Suction Power
Technical Manual 4.2.8 Suction power Pos. Value Vacuum motor Max. air flow (l/s) Max. vacuum (mbar) Max. vacuum (kPa) 11.8 Table 10: Suction power 4.2.9 Additional Pos. Value Brush lifting mechanical Squeegee lifting mechanical Table 11: Additional 26. March 2013 Edition: V2.00/2013 Copyright ©...
Page 22: Accessories & Additional Parts
Cylindrical brush hard 38cm (bristle yellow) 7518532 Active fibre pad roll 7516868 Battery 12V 25Ah (1 unit) ** Table 12: Accessories Remarks ** SKU contains 1 battery but TASKI swingo 350 requires 2 units! 4.3.2 Additional parts Article 4128587 Blades 41.5/2.5x585 (squeegee: back) 4128588 Blades 41.5/2.5x565 (squeegee: front)
Page 24: Handle
Technical Manual Handle 5.1.1 Removing of handle cover and electronics Picture 1: Handle without cover • Move handle to the front side so you can access the screws. • Remove the screw (01/106) for the cover (01/105) for USB access. •...
Page 25: Mounting Of Handle Cover And Electronics
Technical Manual Handle 5.1.2 Mounting of handle cover and electronics Picture 3: Handle without cover and electronics • Connect the ribbon cable to dashboard. • Position the electronics. Ensure that the loop of the ribbon cable is positioned correctly and does not touch the switch levers.
Page 26 Technical Manual • Tighten the handle cover with the 12 screws and 4 screws into electronics. • Position the cover for USB access. • Mount the fixation screw. 26. March 2013 Edition: V2.00/2013 Copyright © 2013, Diversey Inc.
Page 27: Removing Of Switch Lever
Technical Manual Handle 5.1.3 Removing of switch lever Picture 5: Switch lever • Remove handle cover according to chapter REMOVING OF HANDLE COVER AND ELECTRONICS. • Remove screw (01/102) for left switch lever and screw (01/102) for right switch lever. Picture 6: Switch lever screws •...
Page 28: Mounting Of Switch Lever
Technical Manual Handle 5.1.4 Mounting of switch lever Picture 7: Switch lever screws • Mount switch levers onto the handle. Adjustment Ensure that the gear teeth of the switch levers are correctly positioned. The switch levers have to be horizontally in one line. •...
Page 29: Removing Of Wiping Blade Lever
Technical Manual Handle 5.1.5 Removing of wiping blade lever Picture 9: Wiping blade lever • Remove handle cover according to chapter REMOVING OF HANDLE COVER AND ELECTRONICS. • Remove the wiping blade lever (01/116). • Remove the end bolt of the bowden cable (01/119) for wiping blade.
Page 30: Mounting Of Wiping Blade Lever
Technical Manual Handle 5.1.6 Mounting of wiping blade lever Picture 11: Wiping blade lever removed • Mount the end bolt of the bowden cable for the wiping blade. • Mount wiping blade lever onto handle. Picture 12: Wiping blade lever Ensure that the wiping blade lever has the bolt with magnet (01/118) mounted.
Page 31: Removing Of Handle Adjustment Lever
Technical Manual Handle 5.1.7 Removing of handle adjustment lever Picture 13: Handle adjustment lever • Remove handle cover according to chapter REMOVING OF HANDLE COVER AND ELECTRONICS. • Remove wiping blade handle according to chapter REMOVING OF WIPING BLADE LEVER. •...
Page 32: Mounting Of Handle Adjustment Lever
Technical Manual Handle 5.1.8 Mounting of handle adjustment lever Picture 15: Handle adjustment lever • Mount the end bolt of the bowden cable for the handle adjustment. • Mount handle adjustment lever onto handle. Remarks When exchanging the lever, ensure that you also mount the lever (01/ 103) for floating handle adjustment.
Page 33: Guide Bar
Technical Manual Guide bar 5.2.1 Adjusting of bowden cable handle Picture 17: Bowden cable handle • Remove the upper two screws (02/104) and only loosen the lower two screws. • Remove cover (02/103). • Release the counter nut with a 10mm fork spanner. •...
Page 34: Removing Of Toothrocker
Technical Manual Guide bar 5.2.2 Removing of toothrocker Picture 18: Toothrocker • Remove the cover (02/103) and release the tension of the bowden cable according to chapter ADJUSTING OF BOWDEN CABLE HANDLE. • Lift the bowden cable out of the articulation (02/113). •...
Page 35 Technical Manual Picture 20: Remove toothrocker Remarks By pulling out the axle, the distance disc (02/120) will fall out by itself. • Remove the two toothrockers (02/116,117) from the axle of the bowden cable (02/101). • Remove the two springs (02/115). 26.
Page 36: Mounting Of Toothrocker
Technical Manual Guide bar 5.2.3 Mounting of toothrocker Picture 21: Toothrocker detail • Mount the two toothrockers onto the axle of the bowden cable. Remarks The two toothrockers are different in shape. The mounting position doesn't matter. • Position the two springs into the articulation and insert the toothrockers.
Page 37 Technical Manual Service Lubricate the axle with grease (02/140). • Mount the retaining washer onto the axle. • Mount the distance disc between the two toothrockers on the axle. Service Lubricate the toothrockers with grease (02/140). • Mount the cover onto the articulation. •...
Page 38: Removing Of Bowden Cable Handle Adjustment Old Setup
Technical Manual Guide bar 5.2.4 Removing of bowden cable handle adjustment old setup Picture 24: Guide bar • Remove cover (02/103) according to chapter ADJUSTING OF BOWDEN CABLE HANDLE ADJUSTMENT. • Release the counter nut with a 10mm fork spanner. •...
Page 39: Mounting Of Bowden Cable Handle Adjustment Old Setup
Technical Manual Guide bar 5.2.5 Mounting of bowden cable handle adjustment old setup Picture 26: Guide bar • Thread in the bowden cable. Remarks The adjustment side of the bowden cable is at the articulation side. • Position end bolt of bowden cable on the handle adjustment lever.
Page 40: Removing Of Bowden Cable Handle Adjustment New Setup
Technical Manual Guide bar 5.2.6 Removing of bowden cable handle adjustment new setup Picture 27: Guide bar • Remove the cover (02/103) and release the tension of the bowden cable according to chapter ADJUSTING OF BOWDEN CABLE HANDLE. • Remove the toothrockers according to chapter REMOVING OF TOOTHROCKER.
Page 41: Mounting Of Bowden Cable Handle Adjustment New Setup
Technical Manual Guide bar 5.2.7 Mounting of bowden cable handle adjustment new setup Picture 29: Guide bar • Thread the bowden cable into the guide bar. Remarks The adjustment side of the bowden cable is at the articulation side. • Position the end bolt of the bowden cable on the handle adjustment lever.
Page 42: Removing Of Articulation Old Setup
Technical Manual Guide bar 5.2.8 Removing of articulation old setup Picture 31: Articulation • Remove cover (02/103) according to chapter ADJUSTING OF BOWDEN CABLE HANDLE. • Release the counter nut with a 10mm fork spanner. • Loosen the tension on the bowden cable with a 8mm fork spanner.
Page 43 Technical Manual Picture 32: Articulation detail • Remove articulation (02/113) from bracket (02/112). • Remove lock of handle position (02/110). • Remove the two remaining screws (02/104) to release the guide bar. • According to what you need to exchange, remove the existing parts from the articulation and place it on the new one.
Page 44: Mounting Of Articulation Old Setup
Technical Manual Guide bar 5.2.9 Mounting of articulation old setup Picture 33: Articulation detail • Mount lock of handle position into the articulation. Service Apply ball bearing grease (02/120) on the lock of handle position (02/ 110). • Mount articulation onto bracket. Picture 34: Articulation 26.
Page 45 Technical Manual Ensure the O-ring (02/107) is placed correctly. • Mount sustaining disc. Ensure the O-ring (02/107) is placed correctly. • Position the three screws and tighten them. Adjustment Tighten the screws with 20 Nm. • Position the end bolt of the bowden cable at the lock (02/110) of the handle position.
Page 46: 5.2.10 Removing Of Articulation New Setup
Technical Manual Guide bar 5.2.10 Removing of articulation new setup Picture 35: Articulation • Remove the cover (02/103) and release the tension of the bowden cable according to chapter ADJUSTING OF BOWDEN CABLE HANDLE. • Remove the toothrockers according to chapter REMOVING OF TOOTHROCKER.
Page 47: 5.2.11 Mounting Of Articulation New Setup
Technical Manual Guide bar 5.2.11 Mounting of articulation new setup Picture 37: Mount articulation • Place the articulation into the guide bar. • Mount the two lower screws. Adjustment Do not tighten the screws yet as the cover (02/103) will be placed later.
Page 48: Squeegee
Technical Manual Squeegee 5.3.1 Removing of front blade Picture 38: Squeegee front side • Remove the two handles, star knobs (03/102). • Press out the squeegee inlet (03/112). • Remove the front blade (03/117) by tearing it off of the squeegee inlet.
Page 49: Mounting Of Front Blade
Technical Manual Squeegee 5.3.2 Mounting of front blade Picture 40: Front blade fixation • Position new front blade onto the pins of squeegee inlet. • Mount the squeegee inlet into squeegee body. • Tighten the two handles. Ensure that the blade is mounted correctly and the squeegee inlet fits into the squeegee body.
Page 50: Removing Of Back Blade
Technical Manual Squeegee 5.3.3 Removing of back blade Picture 41: Squeegee back side • Remove the two handles (03/102). • Press out the squeegee inlet (03/112). • Remove the back blade (03/114) by tearing it off of the squeegee inlet. Picture 42: Back blade fixation 26.
Page 51: Mounting Of Back Blade
Technical Manual Squeegee 5.3.4 Mounting of back blade Picture 43: Back blade fixation • Position new back blade onto the pins of squeegee inlet. • Mount the squeegee inlet into squeegee body. • Tighten the two handles. Ensure that the blade is mounted correctly and the squeegee inlet fits into the squeegee body.
Page 52: Base
Technical Manual Base 5.4.1 Removing of pump Picture 44: Pump • Remove clear water tank assembly according to chapter REMOVING OF CLEAR WATER TANK ASSEMBLY. Ensure that no water is in the fresh water system before you disconnect the hoses. •...
Page 53: Mounting Of Pump
Technical Manual Base 5.4.2 Mounting of pump Picture 45: Pump • Connect wires with the plugs. Remarks If you removed the charger, please mount it again. • Thread in the new pump into the pump holder. • Mount the front holder. •...
Page 54: Adjusting Of Bowden Cable Wiping Blade
Technical Manual Base 5.4.3 Adjusting of bowden cable wiping blade Picture 46: Adjusting bowden cable wiping blade • Remove tank cover complete (06/101). • Remove recovery tank (06/121). • Release the counter nut of the bowden cable with a 10mm fork spanner.
Page 55: Removing Of Bowden Cable Wiping Blade
Technical Manual Base 5.4.4 Removing of bowden cable wiping blade Picture 47: Bowden cable wiping blade • Remove tank cover complete (06/101). • Remove recovery tank (06/121). • Release the counter nut with a 10mm fork spanner. • Loosen the tension of the bowden cable (01/119) with a 10mm fork spanner.
Page 56: Mounting Of Bowden Cable Wiping Blade
Technical Manual Base 5.4.5 Mounting of bowden cable wiping blade Picture 48: Bowden cable wiping blade • Thread in the bowden cable. Remarks The adjustment side of the bowden cable is at chassis side. • Position end bolt of bowden cable on the wiping blade lever. •...
Page 57: Tank Cover And Tank
Technical Manual Tank cover and tank 5.5.1 Removing of clear water tank assembly Picture 49: Clear water tank assembly • Remove tank cover complete (06/101). • Remove recovery tank (06/121). • Remove the threaded adaptor (04/101) of the suction hose (04/ 102).
Page 58 Technical Manual Picture 50: Clear water tank fixation • Loosen the screw (08/104) with two 13mm fork spanners as it has a self locking nut. • Lift clear water tank (06/116) with guide bar off the chassis. • Lay the clear water tank and guide bar on the LH side. 26.
Page 59: Mounting Of Clear Water Tank Assembly
Technical Manual Tank cover and tank 5.5.2 Mounting of clear water tank assembly Picture 51: Clear water tank assembly • Position clear water tank on the chassis. Thread in the suction hose (04/102) and angle hose (07/102) correctly. Ensure that the clear water tank fits nicely onto the chassis. •...
Page 60: Removing Of Clear Water Tank
Technical Manual Tank cover and tank 5.5.3 Removing of clear water tank Picture 52: Clear water tank • Remove clear water tank assembly according to chapter REMOVING OF CLEAR WATER TANK ASSEMBLY. • Remove handle cover according to chapter REMOVING OF HANDLE COVER AND ELECTRONICS.
Page 61: Mounting Of Clear Water Tank
Technical Manual Tank cover and tank 5.5.4 Mounting of clear water tank Picture 53: Clear water tank • Mount necessary parts onto the new clear water tank. • Mount guide bar onto the bracket. • Position the three screws and tighten them. Adjustment Tighten the screws with 20 Nm.
Page 62: Vacuum Unit
Technical Manual Vacuum unit 5.6.1 Removing of vacuum motor Picture 54: Vacuum motor • Remove clear water tank assembly according to chapter REMOVING OF CLEAR WATER TANK ASSEMBLY. • Lift the vacuum motor (07/106) with seals out of the chassis. •...
Page 63: Mounting Of Vacuum Motor
Technical Manual Vacuum unit 5.6.2 Mounting of vacuum motor • Position seals, guiding ring and cover correctly. • Position the angle hose. Remarks The sequence of the seals, guiding ring and cover is described in the spare parts list. Picture 55: Vacuum motor details •...
Page 64: Brush & Motor
Technical Manual Brush & Motor 5.7.1 Removing of brush motor belt Picture 56: Brush and motor • Remove tank cover complete (06/101). • Remove recovery tank (06/121). • Remove screw (08/107) for belt cover (08/106). • Remove belt cover (08/106). •...
Page 65: Mounting Of Brush Motor Belt
Technical Manual Brush & Motor 5.7.2 Mounting of brush motor belt • Mount the brush motor belt. • Tension the belt by lifting up the brush motor. Remarks You can lift up the brush motor with a screw driver. Place the screw driver from the front side into the 12mm hole of the bracket (08/105).
Page 66: Removing Of Brush Motor
Technical Manual Brush & Motor 5.7.3 Removing of brush motor Picture 58: Brush motor • Remove clear water tank assembly according to chapter REMOVING OF CLEAR WATER TANK ASSEMBLY. • Remove brush motor belt according to chapter REMOVING OF BRUSH MOTOR BELT. •...
Page 67: Mounting Of Brush Motor
Technical Manual Brush & Motor 5.7.4 Mounting of brush motor Picture 59: Brush motor • Mount the brush motor. • Position the brush motor fixation screws. • Connect brush motor wires at the connection block. Remarks If you removed the charger and connection block, please mount them again.
Page 68: Removing Of Brush Pulley
Technical Manual Brush & Motor 5.7.5 Removing of brush pulley Picture 60: Brush pulley • Remove brush motor belt according to chapter REMOVING OF BRUSH MOTOR BELT. • Remove handle (08/116) for brush holder (08/118). • Remove brush holder (08/118). •...
Page 69: Mounting Of Brush Pulley
Technical Manual Brush & Motor 5.7.6 Mounting of brush pulley Picture 61: Brush pulley • Position the brush pulley assembly. • Mount the 3 self locking nuts with a 10mm fork spanner/nut. • Mount the brush. • Mount the brush holder. •...
Page 70: Adjusting Of Brush Height
Technical Manual Brush & Motor 5.7.7 Adjusting of brush height Picture 62: Adjusting brush height • Remove handle (08/116) for brush holder (08/118). • Remove brush holder. • Remove the brush take up from the brush holder with a 8mm fork spanner/nut.
Page 71: Removing Of Wiping Blade
Technical Manual Brush & Motor 5.7.8 Removing of wiping blade Picture 63: Wiping blade assembly • Put machine into parking position with lever (05/116). • Remove cover (08/127) for wiping blade. Picture 64: Remove wiping blade cover Remarks Press the wiping blade with on hand down and release with your other hand the latches on squeegee holder (08/129) and pull it towards you.
Page 72: Mounting Of Wiping Blade
Technical Manual Brush & Motor 5.7.9 Mounting of wiping blade Picture 65: Wiping blade • Position new wiping blade onto the pins. Ensure that the blade is mounted correctly. • Position cover for wiping blade and snap it on. Picture 66: Mount wiping blade Ensure that the cover for the wiping blade is mounted correctly.
Page 73: Filter
Technical Manual Filter 5.8.1 Removing of filter Picture 67: Filter • Remove clear water tank assembly according to chapter REMOVING OF CLEAR WATER TANK ASSEMBLY. Ensure that no water is in the fresh water system before you disconnect the hoses. •...
Page 74: Mounting Of Filter
Technical Manual Filter 5.8.2 Mounting of filter Picture 69: Filter alone • Take new filter. • Connect fresh water hoses to the filter. • Thread the filter into the chassis. • Position fixation screws an tighten them. Picture 70: Mount filter •...
Page 76: System Architect
Technical Manual System architect 6.1.1 General Remarks The following instructions are for TASKI swingo 350B/455B as they have the same electronics. • The firmware is memorised only on the power electronics. • The foil keyboard visualises the states of the machine. It also functions as a connection between the power electronics and the devices (e.g.
Page 77: Start Up/Self Holding
Technical Manual Picture 2: System overview 455B 6.1.3 Start up/Self holding The machine is switched ON by pressing the ON/OFF button for 3 seconds and feeds the power electronics with power. The power electronics get power and it enables the proc- essor to start and go into the self holding.
Page 78: Dashboard
Technical Manual Dashboard 6.2.1 Removing of dashboard Picture 3: Dashboard • Remove handle cover according to chapter REMOVING OF HANDLE COVER AND ELECTRONICS in the mechanics section. • Remove the dashboard foil. 26. March 2013 Edition: V2.00/2013 Copyright © 2013, Diversey Inc.
Page 79: Mounting Of Dashboard
Technical Manual Dashboard 6.2.2 Mounting of dashboard Picture 4: Dashboard • Clean the surface where the dashboard will be placed. • Position the new dashboard foil. • Complete assembling according to the chapter MOUNTING OF HANDLE COVER AND ELECTRONICS. Ensure that the loop of the ribbon cable is positioned correctly and does not touch the switcher levers.
Page 81 06.14.30 dashboard - connections - 350B_V1.00.fm Technical Manual Pos. Plug Description [plug] Description [pin] Main power Main power LED (+3.3VDC) Dosing Adjusting button (+) Dosing ON/OFF ON/OFF button Dosing ON/OFF ON/OFF LED (green) Dosing Level 3 LED (green) Dosing Level 2 LED (green) Dosing Level 1 LED (green) Vacuum ON/OFF...
Page 82 06.14.30 dashboard - connections - 350B_V1.00.fm Technical Manual Pos. Plug Description [plug] Description [pin] Charger GND of charger ** = 1 LED with two colours LED (green and red) Table 1: Dashboard connector description 26. March 2013 Edition: V2.00/2013 Copyright © 2013, Diversey Inc.
Page 83: Reset Service Hour Counter
Dashboard 6.2.4 Reset service hour counter The swingo 350B has no dashboard service functionality. There is one exception: reset of the service hour counter. To reset the service hour counter LED you have to perform the following steps: Picture 6: Dashboard foil service LED reset •...
Page 84: Electronics
Technical Manual Electronics 6.3.1 Removing of electronics Picture 7: Electronics • Remove handle cover according to chapter REMOVING OF HANDLE COVER AND ELECTRONICS in the mechanics section. • Disconnect the wires to the power electronics. • Remove electronics (01/109). 26. March 2013 Edition: V2.00/2013 Copyright ©...
Page 85: Mounting Of Electronics
Technical Manual Electronics 6.3.2 Mounting of electronics Picture 8: Electronics • Mount the electronics. • Connect the wires to the power electronics. • Complete assembling according to the chapter MOUNTING OF HANDLE COVER AND ELECTRONICS. Tighten the connectors with the correct torque. Refer to adjustment or the spare parts list.
Page 87 06.18.27 electronics - connections - 350B_455B_V1.01.fm Technical Manual Pos. Plug Description [plug] Description [pin] Vacuum motor Vacuum motor Brush motor Brush motor +24VDC +24VDC Dosing valve 350B: Not used / 455B: Filter +24VDC Dosing pump 350B: Pump / 455B: Not used Charger communication Charge (yellow) Charger communication...
Page 88 06.18.27 electronics - connections - 350B_455B_V1.01.fm Technical Manual Pos. Plug Description [plug] Description [pin] Type B SMD (for Service Tool) Hall sensor Brush start Hall sensor 350B: Wiping blade Label software: - Firmware version - Boot version Label of electronics: - Name of machine - Hardware version - Production number...
Page 89: Charger
Technical Manual Charger 6.4.1 Removing of charger Picture 10: Charger • Remove the 4 screws (06/112) for the battery cover (06/113). Remarks Disconnect the battery plug and unthread the charging mains. • Remove battery cover (06/113). • Remove the charger (05/101). Remarks Just pull the charger towards you as it is only mounted on slides without any fixation screw.
Page 90: Mounting Of Charger
Technical Manual Charger 6.4.2 Mounting of charger Picture 11: Charger • Mount the connection block with screw. • Connect the wires and the communication plug. • Mount the charger. • Position battery cover. • Mount the 4 screws for battery cover. 26.
Page 91: Charger Connections
Technical Manual Charger 6.4.3 Charger connections Picture 12: Charger connections 1 Picture 13: Charger connections 2 26. March 2013 Edition: V2.00/2013 6-16 Copyright © 2013, Diversey Inc.
Page 92 06.20.20 charger - connections - 350B_V1.00.fm Technical Manual Pos. Plug Description [plug] Description [pin] Charger communication Not connected/used Charger communication Not connected/used Charger communication Immobiliser Charger communication Immobiliser Charger communication Charger communication Failure (red) Charger communication Charge (yellow) Charger communication Charged (green) Power supply Mains (connection block)
Page 96: Available Gts Newsletter/Instructions
08.1 swingo 350B - additional information_V1.00.fm Technical Manual Additional information Available GTS Newsletter/Instructions To find the up to date available GTS Newsletters and instructions refer to e-spares. Newsletter Date of issue Machine Subassembly Topic/Modification Serial number 2011/01 25.01.2011 TASKI swingo 350B, 755B, Service tool Service Tool Update Version 4.04...
Page 97 08.1 swingo 350B - additional information_V1.00.fm Technical Manual Newsletter Date of issue Machine Subassembly Topic/Modification Serial number 2012/30 17.12.2012 TASKI swingo 350, 455, Service Tool Service Tool Update Version 6.04 755, 760 855, 1255, 1260, 1650, 1850, XP, 4000, 5000 2013/01 13.02.2013...
Page 99 09.1 swingo 350B - revision_V1.00.fm Technical Manual Revision Date Chapter Content Description Revision 08.05.2011 Adjustment to series machine V1.10 10.01.2013 The whole book Complete new concept and template V2.00 10.01.2013 Mechanical/ Harmonization work on chapters and pictures V2.00 Electrical 10.01.2013...
Page 101 Technical Manual Glossar Accessories 4-8 Electronics 5-2, 6-9, 6-10 Additional 4-7 Electronics connections 6-11 Additional information 7-1 Electronics connector descriptions 6- Additional parts 4-8 Adjusting of brush height 5-47 Elementary 2-1 Angle hose 5-34 Emergency loop 6-2 Articulation 5-19, 5-23 ESD 2-1 Back blade 5-27, 5-28 Filter 5-50, 5-51...
Page 102 Technical Manual Required material 3-2 Reset service hour counter 6-8 Revision 8-1 Squeegee 5-25, 5-26, 5-27, 5-28 Squeegee inlet 5-25, 5-27 Start up/Self holding 6-2 Static discharge 2-2 Suction hose 5-34 Suction power 4-7 Summary 1-2 Sustaining disc 5-19 Switch lever 5-4 System architecture 6-1 System overview 6-1 Technical data 4-1, 4-2...
