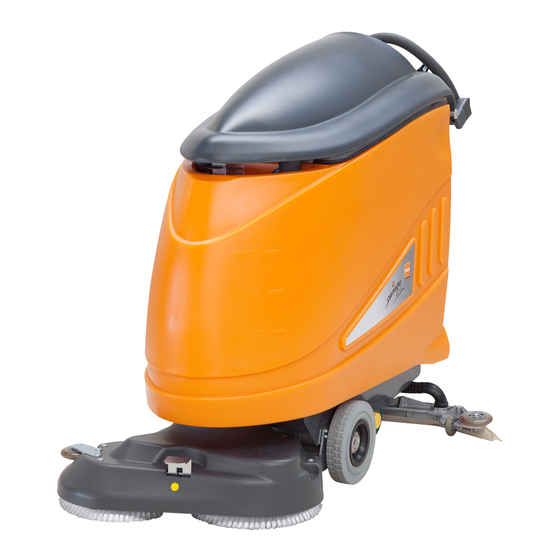

Taski swingo 1650 Conversion Procedure

Parts Needed:
- (4) 6V wet batteries - 192-9009
- (1) Battery charger - 292-5276
- (1) Wet battery kit - 292-5257
- (1) Prop - 292-5258
- (3) Screws - 192-0509
- (3) Nuts - 192-6346
- (1) Lock assembly - 292-5259
- (1) Battery tray - 192-9382
- (1) Charger plug and wire kit - 292-5260
- (36") 6 gauge wire (red) - 998-0055
- (36") 6 gauge wire (black) - 998-0056
- (2) Screw - 192-0549
- (2) 6 gauge Nylon ring 5/16" stud - 998-0065
- (1) 50amp charger plug (red) - 991-2103
- (1) Charger switch with wiring harness - 192-9941
- (1) Switch lever - 192-8784
- Misc. - Zip Ties and Electrical Tape
Log in to USAfi x
swingo 1650/1850 Wet Cell Conversion

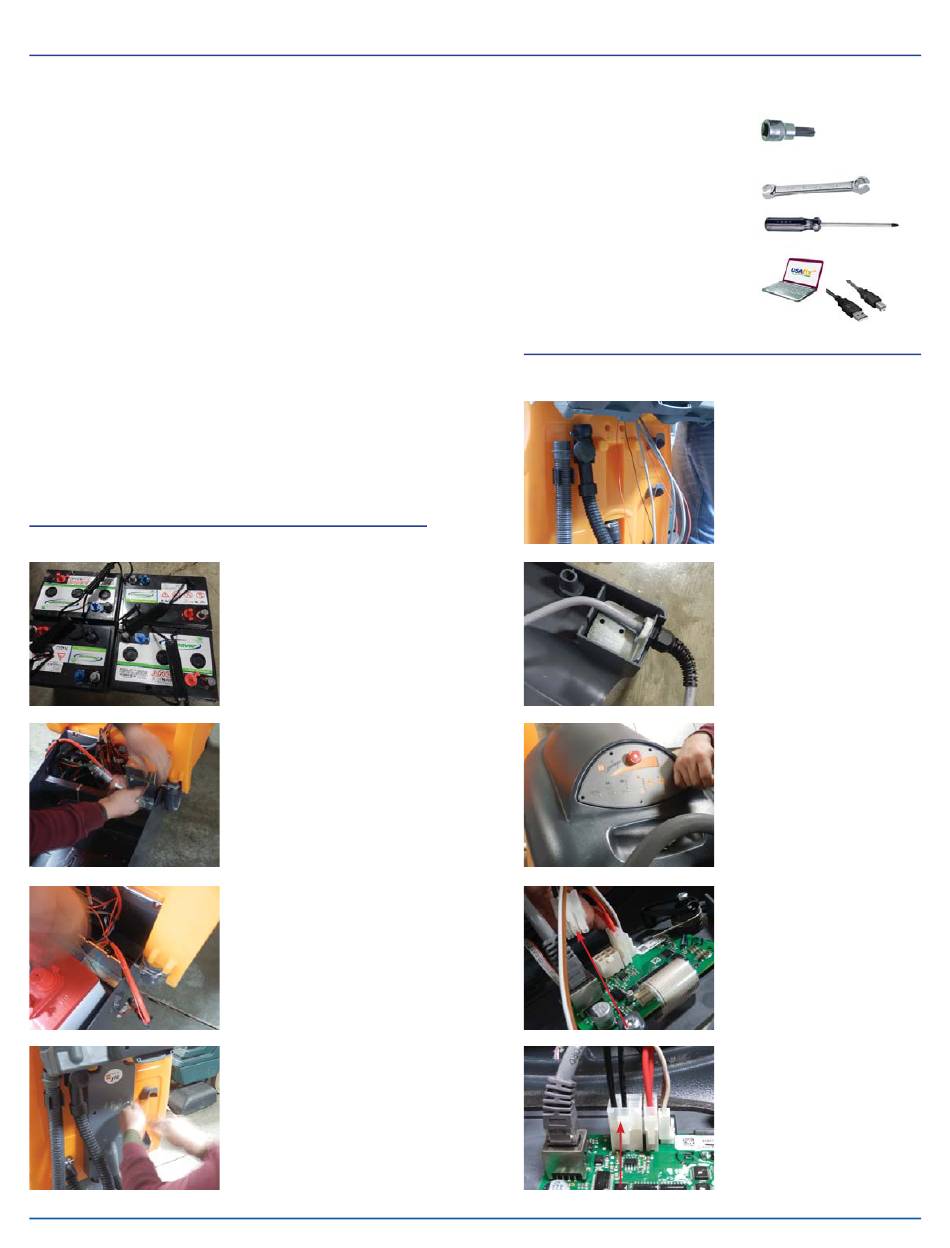

1. Remove existing AGM
batteries
2. Remove charger and then
disconnect the connected wires.
3. Remove charger bracket.
4. Remove rear gray panel with
a T30 screwdriver
at www.usaclean.com
™
Tools Needed:
- T30 torx screwdriver
- T25 torx screwdriver
- T15 torx screwdriver
- 10mm wrench
- 13mm wrench
- Small Phillips screwdriver
- Laptop (Windows XP/7)
- USB Cable
- Service Tool / Firmware
(download at www.usaclean.com)
Old
New
1-800-USA-CLEAN (800-872-2532)
5. Cords should now be
exposed.
6. Using a T15 screwdriver
remove the cord and metal
bracket.
7. Using a T25 screwdriver
remove the control panel cover.
8. Unplug the 6 pin connector
with the old wiring harness and
replace with the new switch
wiring harness.
Tip: Using electrical tape, attach
the old wiring harness to the
new wiring harness to help fi sh
it up to the control panel.
