Port Statistics

Use the Port Statistics menu to display Etherlike or RMON statistics for
any port on the switch. The statistics displayed are indicated in the
following figure and table.

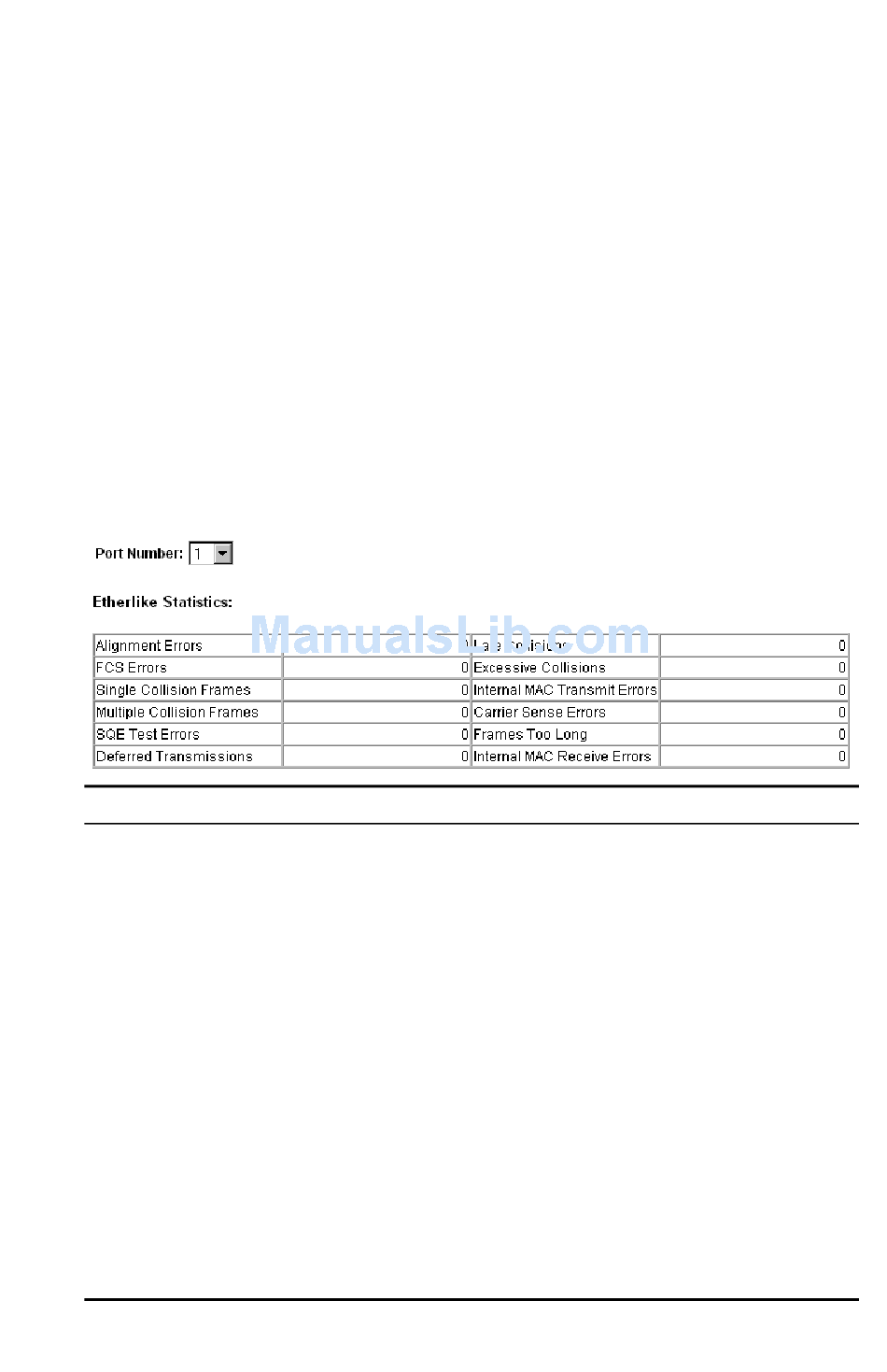

Etherlike Statistics

Etherlike Statistics display key statistics from the Ethernet-like MIB for
each port. Error statistics on the traffic passing through each port are
displayed. This information can be used to identify potential problems
with the switch (such as a faulty port or unusually heavy loading). Values
displayed have been accumulated since the last system reboot.
Parameter
Alignment Errors
FCS Errors
Single Collision
Frames*
Multiple Collision
Frames*
SQE Test Errors*
Deferred
Transmissions*
Late Collisions
3-54
Description
The number of alignment errors (mis-synchronized data
packets).
The number of frames received that are an integral number
of octets in length but do not pass the FCS check.
The number of successfully transmitted frames for which
transmission is inhibited by exactly one collision.
A count of successfully transmitted frames for which
transmission is inhibited by more than one collision.
A count of times that the SQE TEST ERROR message is
generated by the PLS sublayer.
A count of frames for which the first transmission attempt
on a particular interface is delayed because the medium was
busy.
The number of times that a collision is detected later than
512 bit-times into the transmission of a packet.
