Port Menus

Port Information

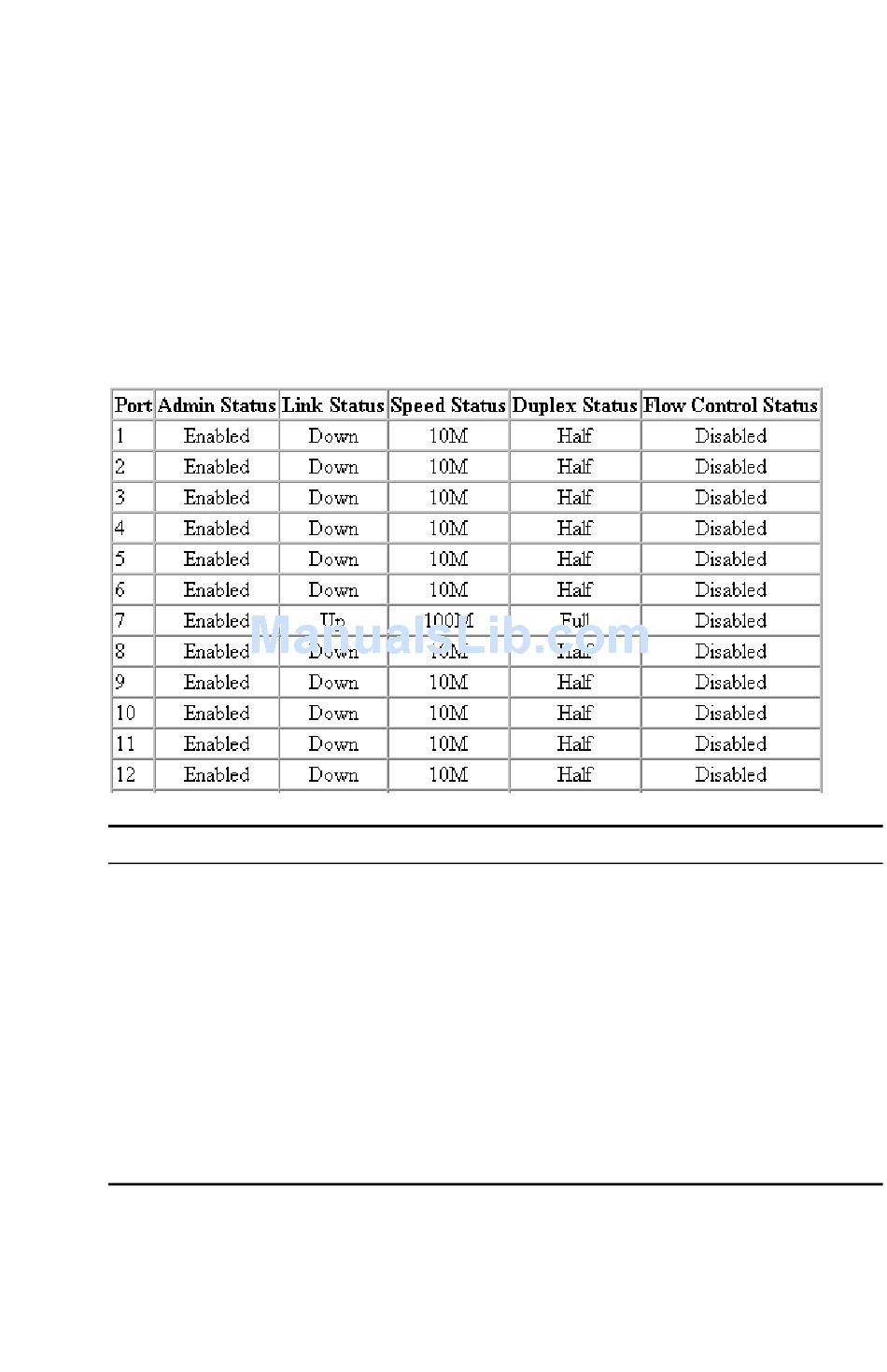

The Port Information screen displays the port status, link state, the
communication speed and duplex mode, as well as the flow control in use.
To change any of the port settings, use the Port Configuration menu. The
parameters are shown in the following figure and table.
Parameter
Admin Status
Link Status
Speed Status
Duplex Status
Flow Control
Status
Description
Shows if the port is enabled or not.
Indicates if the port has a valid connection to an external
device.
Shows the port speed (10M, 100M or 1000M).
Displays the current duplex mode.
Shows the flow control type in use. Flow control can
eliminate frame loss by "blocking" traffic from end stations
connected directly to the switch. Back pressure is used for
half duplex and IEEE 802.3x for full duplex. Note that flow
control should not be used if a port is connected to a hub.
P M
ORT ENUS
3-45
