Using a Port Mirror for Analysis

You can mirror traffic from any source port to a target port for real-time
analysis. You can then attach a logic analyzer or RMON probe to the target
port and study the traffic crossing the source port in a completely
unobtrusive manner. When mirroring port traffic, note that the target port
must be included in the same VLAN as the source port. (See "VLAN
Static List" on page 3-36.)

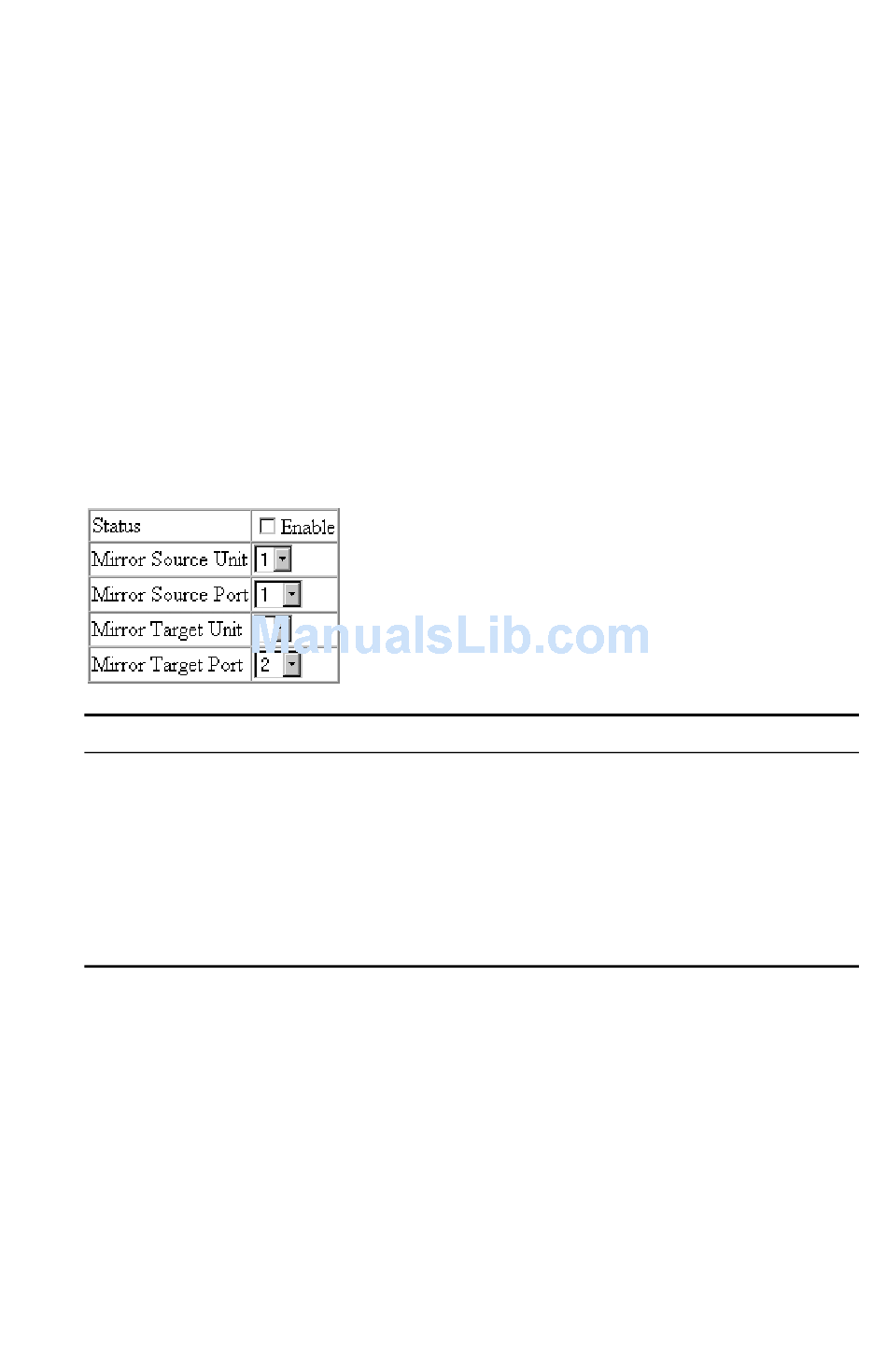

You can use the port mirror configuration screen to designate a single port
pair for mirroring as shown below.
Parameter
Status
Mirror Source Unit
Mirror Source Port
Mirror Target Unit
Mirror Target Port
3-50
Description
Enables/disables port mirroring.
The switch containing the mirror source port.
The port whose traffic will be monitored.
The switch containing the mirror target port.
The port that will duplicate or "mirror" all the traffic
happening on the monitored port.
