Console Configuration

If you are having difficulties making an out-of-band console connection to
the serial port on the agent module, you can display or modify the current

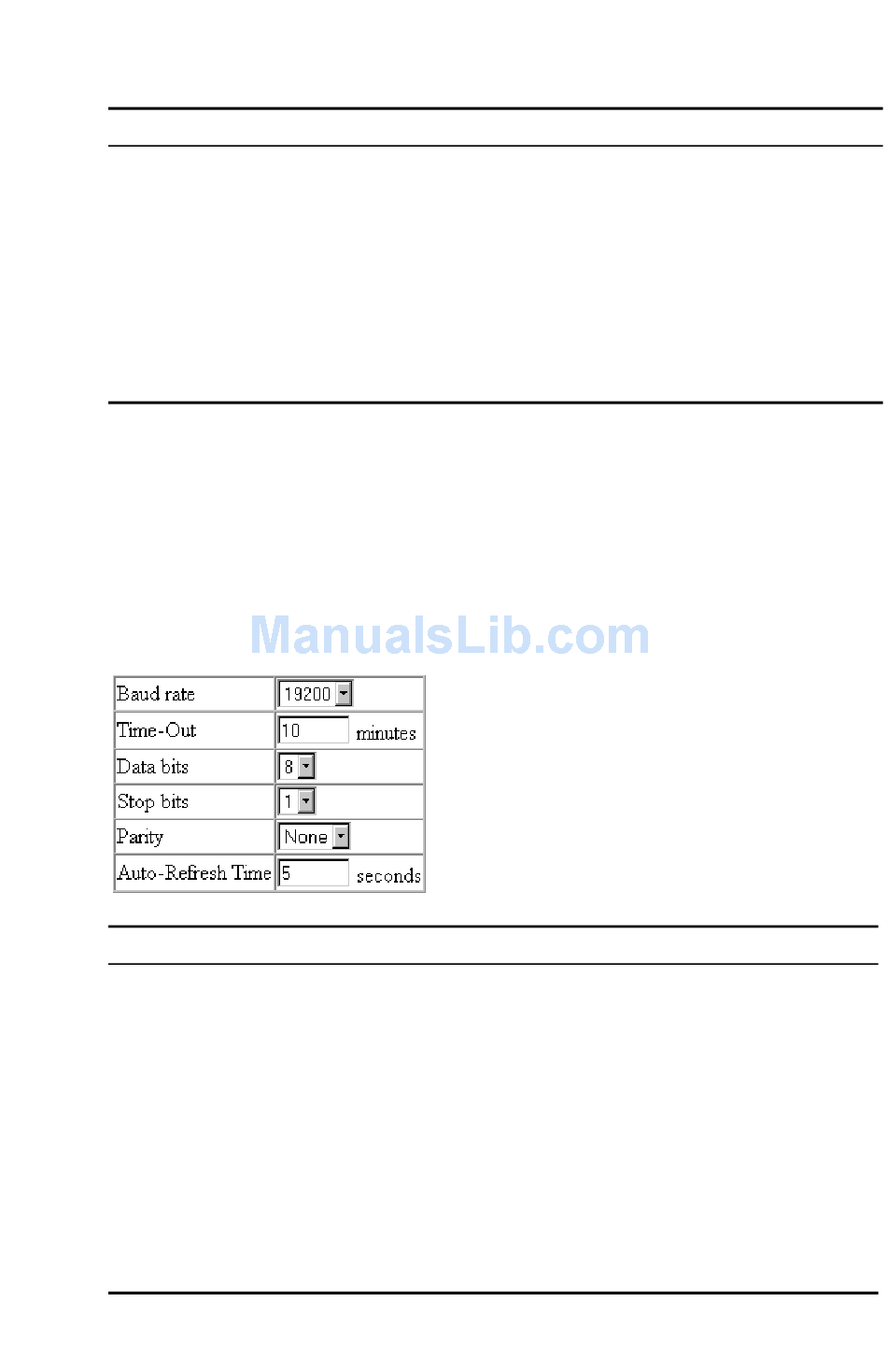

settings for the serial port through the Web agent. Click on the serial port
icon in the switch image to display or configure these settings, as shown
below.
Parameter
Baud rate
Time-Out
Description
Indicates the current port speed.
Indicates the port's current duplex mode.
Shows the flow control type in use. Flow control can
eliminate frame loss by "blocking" traffic from end stations
connected directly to the switch.
The VLAN ID assigned to untagged frames received on this
port. Use the PVID to assign ports to the same untagged
VLAN.
Default Description
19200 bps The rate at which data is sent between devices.
Options : 2400, 4800, 9600, 19200, and auto
detection.
Note that when AUTO is selected, you need to
first press the Enter key once to set the data rate
and initialize the connection.
10 minutes If no input is received from the attached device
after this interval, the current session is
automatically closed.
Range : 0 - 100 minutes; 0: disabled
