Console Port Pin Assignments

The DB-9 serial port on the switch's rear panel is used to connect to the
switch for out-of-band console configuration. The on-board menu-driven
configuration program can be accessed from a terminal, a PC running a
terminal emulation program, or from a remote location via a modem
connection. The pin assignments used to connect to the serial port are
provided in the following tables.

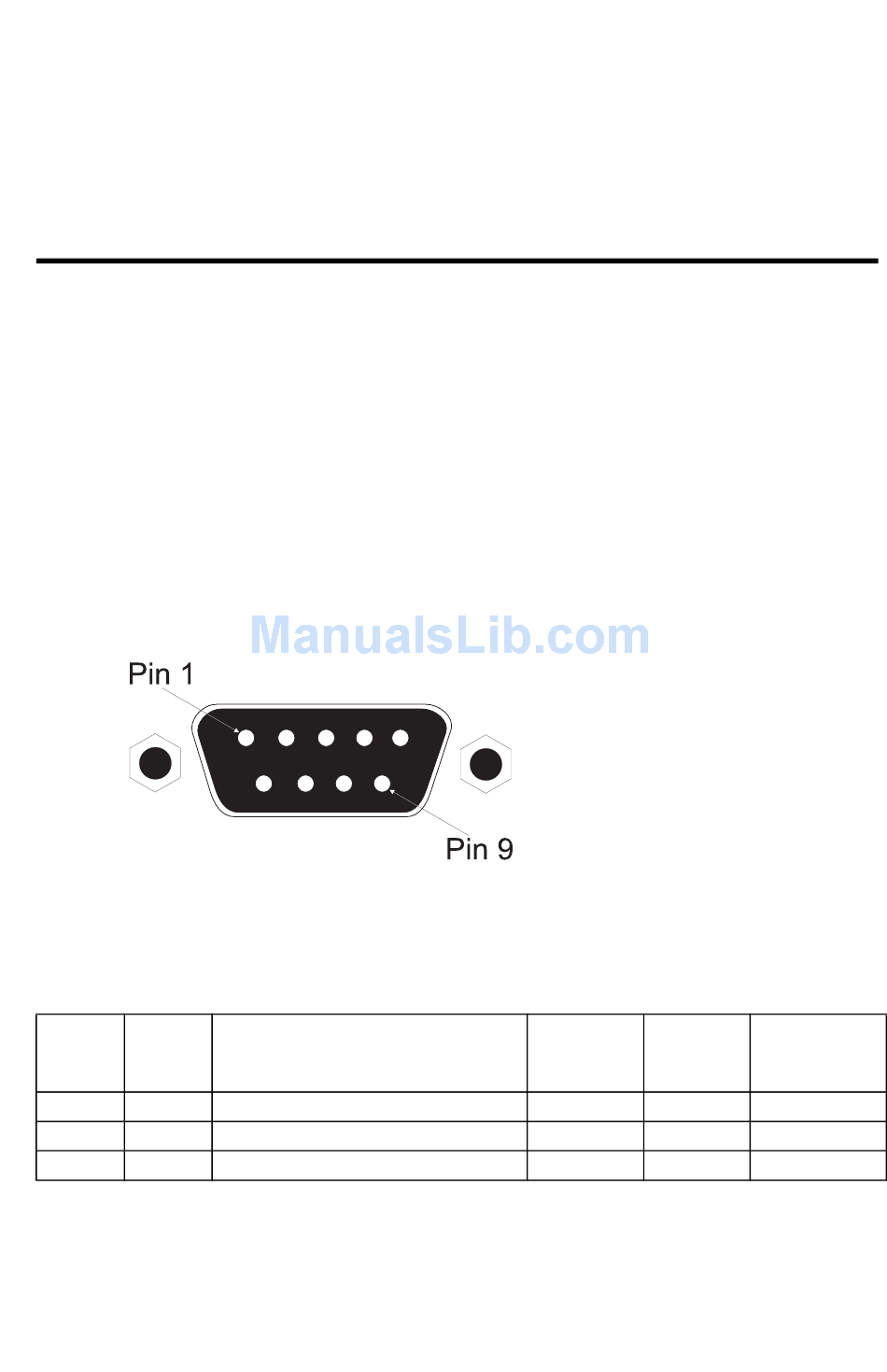

Figure B-1. DB-9 Console Port Pin Numbers

DB-9 Port Pin Assignments

EIA CCITT
Circuit Signal
BB 104
BA 103
AB 102
No other pins are used.
P
Description
RxD (Received Data)
TxD (Transmitted Data)
SGND (Signal Ground)
A
PPENDIX
A
IN SSIGNMENTS
Switch's
DB9 DTE
Pin #
2
3
5
PC DB9 Signal
DTE Direction
Pin # DCE-DTE
2 ------>
3 <------
5 --------
