Spanning Tree

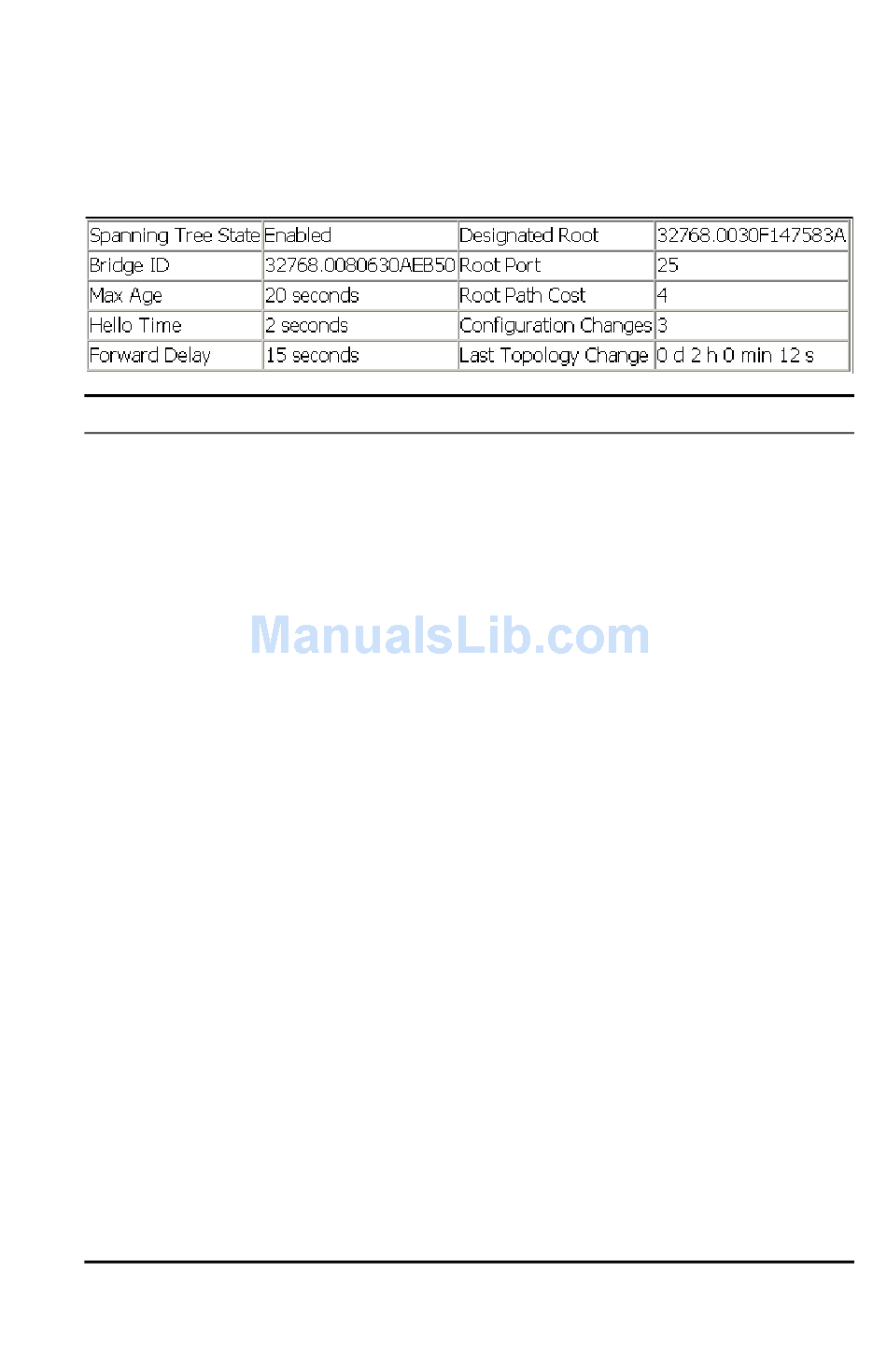

The parameters shown in the following figure and table describe the
current bridge STA Information.
Parameter
Spanning Tree State
Bridge ID
Max Age
Hello Time
Forward Delay
Designated Root
Root Port
Root Path Cost
Configuration Changes The number of times the spanning tree has been
Last Topology
Change
3-22
Description
Shows if the switch is enabled to participate in an
STA-compliant network.
A unique identifier for this bridge, consisting of bridge
priority plus MAC address (where the address is normally
taken from the agent).
The maximum time (in seconds) a device can wait
without receiving a configuration message before
attempting to reconfigure.
The time interval (in seconds) at which the root device
transmits a configuration message.
The maximum time (in seconds) the root device will wait
before changing states (i.e., listening to learning to
forwarding).
The priority and MAC address of the device in the
spanning tree that this switch has accepted as the root
device.
The number of the port on this switch that is closest to
the root. This switch communicates with the root device
through this port. If there is no root port, then this switch
has been accepted as the root device of the spanning tree
network.
The path cost from the root port on this switch to the
root device.
reconfigured.
The time since the spanning tree was last reconfigured.
