VLAN Port Configuration

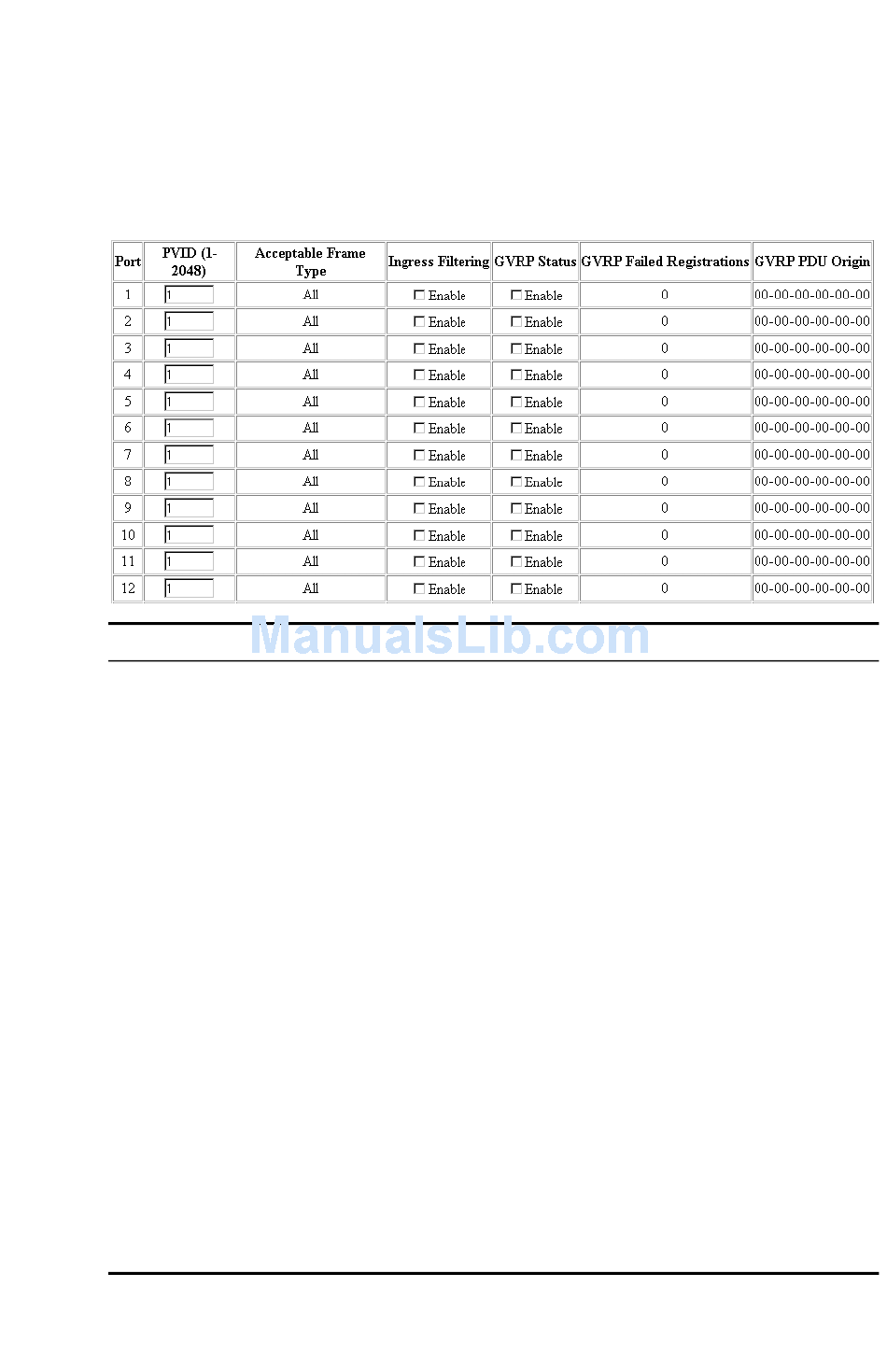

Use this screen to configure port-specific settings for IEEE 802.1Q
VLAN features.
Parameter
PVID
Acceptable Frame
Type
Ingress Filtering
GVRP Status*
GVRP Failed
Registrations*
GVRP Last PDU
Origin*
* GVRP is not available for the current firmware release.
Description
The VLAN ID assigned to untagged frames received on this
port. Use the PVID to assign ports to the same untagged
VLAN.
This switch accepts "All" frame types, including VLAN
tagged or VLAN untagged frames. Note that all VLAN
untagged frames received on this port are assigned to the
PVID for this port.
If set to "True," incoming frames for VLANs which do not
include this port in their member set will be discarded at the
inbound port.
Enables or disables GVRP for this port. When disabled, any
GVRP packets received on this port will be discarded and
no GVRP registrations will be propagated from other ports.
Note that GVRP must be enabled for the switch before this
setting to take effect. (See "Configuring Bridge MIB
Extensions" on page 3-29.)
The total number of failed GVRP registrations, for any
reason, on this port.
The Source MAC Address of the last GVRP message
received on this port.
C V
ONFIGURING
LAN
IRTUAL S
3-41
