2.5
Basic Connections Setup
This section is designed to take your through the initial setup steps in order to allow you
to communicate with and configure your VelaSync.

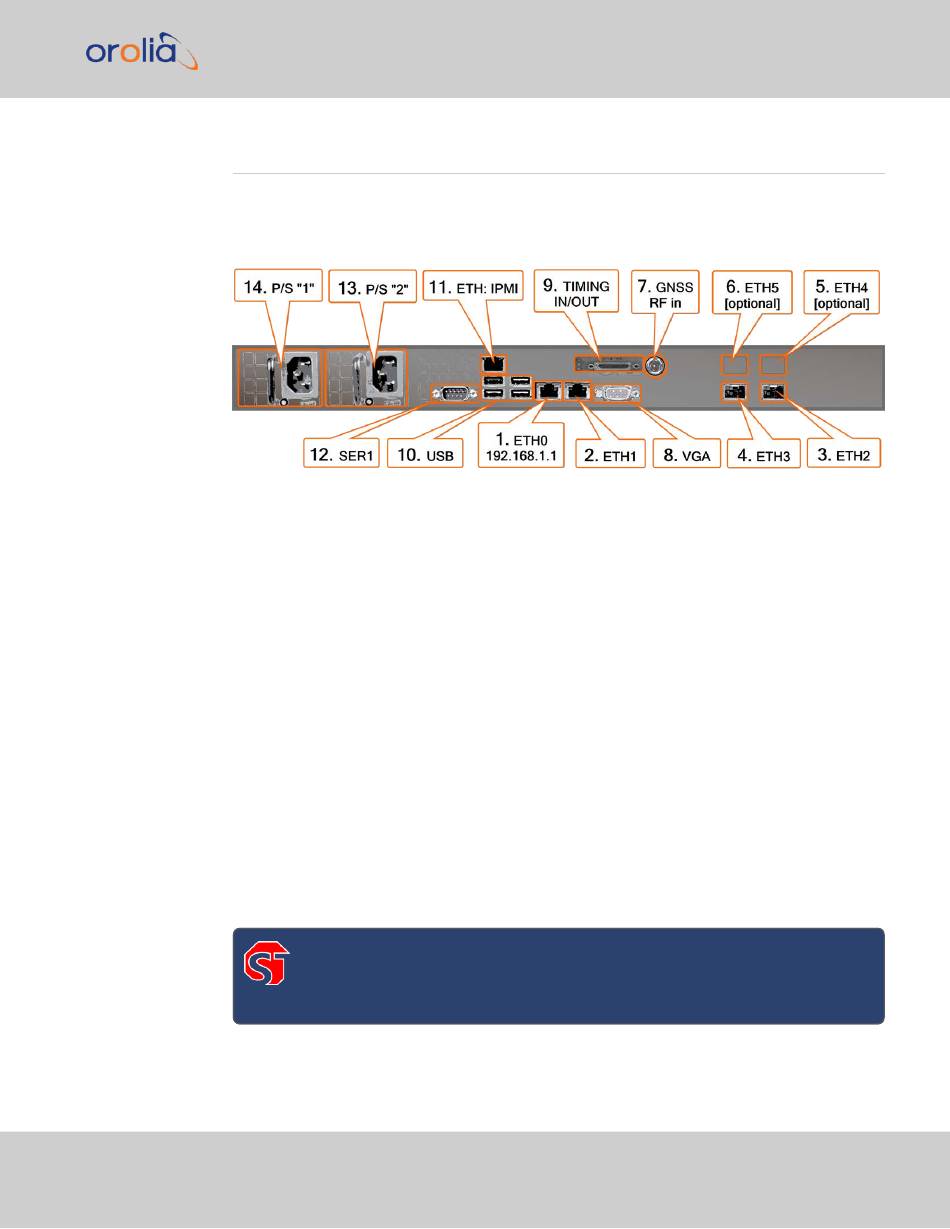

Figure 2-4:
2.5.1
Connecting the GPS Antenna
For instructions on how to install a
ies such as
ation Guide that came with the respective equipment.
For additional information regarding the
a GNSS Antenna Location" on
1. Connect the GPS/GNSS antenna to the GNSS RF connector (see illustration
2.5.2
Connecting Power
Before connecting power to the unit, make sure that you have read all safety inform-
ation detailed in section
CHAPTER 2 • VelaSync User's Manual Rev. 3
VelaSync rear panel
surge
protectors,
page 235.
above, item number 7), using the supplied Type-N adapter cable, and an LMR-400
equivalent cable with surge suppressor and active GPS L1 antenna, such as Spec-
tracom model 8230.
Note the GNSS receiver connection provides 5V
"YOUR SAFETY" on
DANGER!
When installing the product, use only the provided or des-
ignated power cables. Using any other cables and adaptors could cause
a malfunction or a fire.
GPS/GNSS
antenna, the
weatherproofing
kits, or amplifiers, refer to the Install-
GPS antenna location
DC
page 17.
2.5 Basic Connections Setup
signal
cable, and accessor-
selection, see
"Choosing
power for the antenna.
29
