1.7 The VelaSync Web UI
The Primary Navigation Bar
HOME: Return to the HOME screen (see above)
INTERFACES: Access the configuration pages for ...
MANAGEMENT: Access the NETWORK setup screens, and OTHER setup
screens e.g., to configure Reference Priorities, System Time, and the Oscillator.
TOOLS: Opens a drop-down menu for access to the system maintenance
screens and system logs.
HELP: Provides Spectracom Service Contact Information and high-level system
configurations you may be required to furnish when contacting Spectracom Ser-
vice.
1.7.2

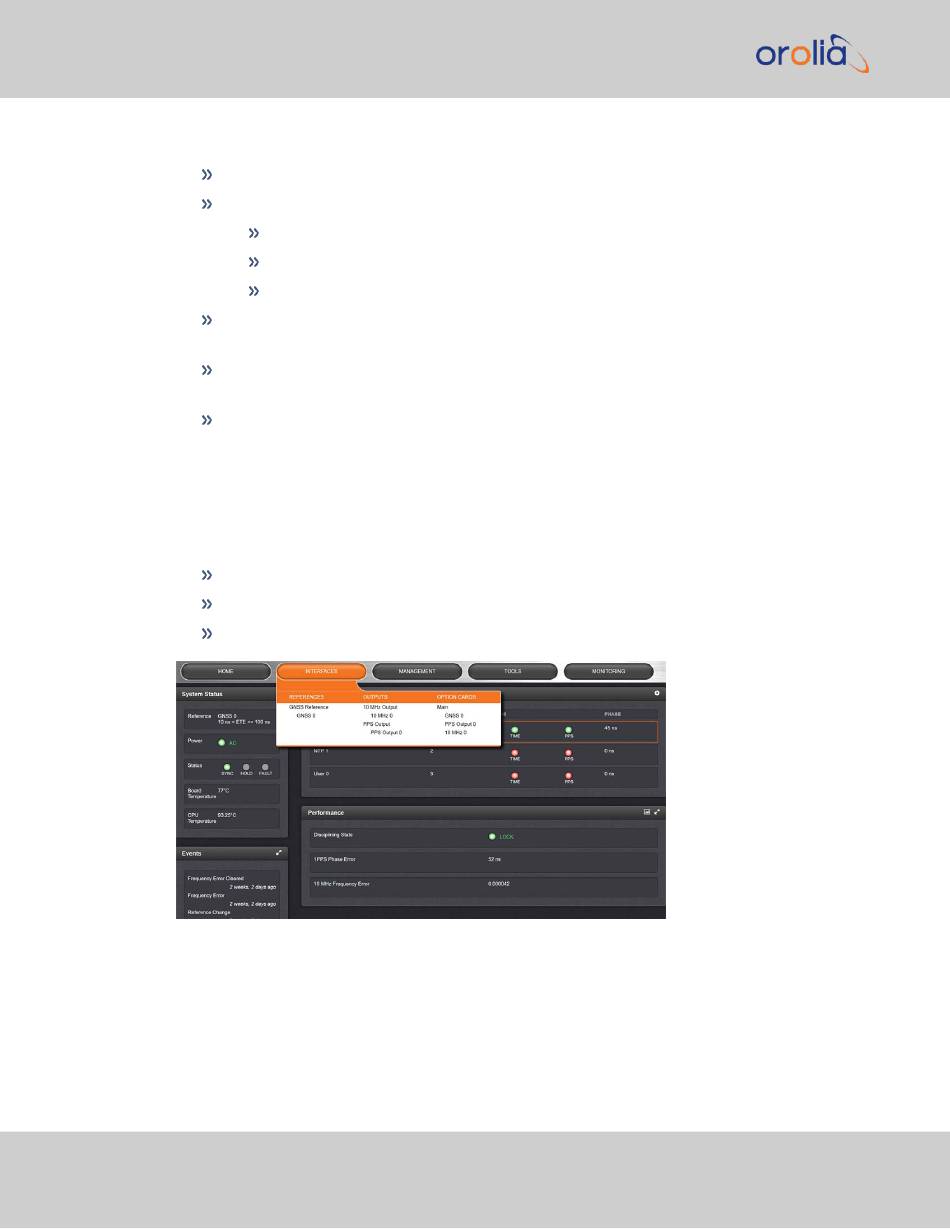

The INTERFACES Menu

The INTERFACES
External REFERENCES e.g., the GNSS reference input
Detected OUTPUTS, such as 10 MHz and 1PPS
Installed OPTIONS.
Clicking on any of the line items will open a status screen, providing real-time inform-
ation on the selected interface e.g., availability, performance data and events history.
To configure settings for the selected interface, click the GEAR icons or buttons
provided on most of the status screens. Icons like the INFO symbol provide access to
more detailed status information and history data.
14
provides access to all menus:
... references (e.g., GNSS, NTP)
... outputs (e.g. 10 MHz, PPS, NTP) and
... installed input/output option cards.
menu on the Main screen provides access to VelaSync's:
