Proceed as follows:
Removing the bezel
Removing the HDD carrier
1. The HDDs are installed in carriers. To release a carrier, press down its red release
2. Swing the handle out all the way.
3. Pull out the carrier from the chassis, using the handle.
CHAPTER 4 • VelaSync User's Manual Rev. 3
Remove the front bezel from the chassis, by unlocking it with the key, then press-
ing the red release knob, then removing the bezel with both hands. While the
bezel is removed, check if the filter requires cleaning or replacement.

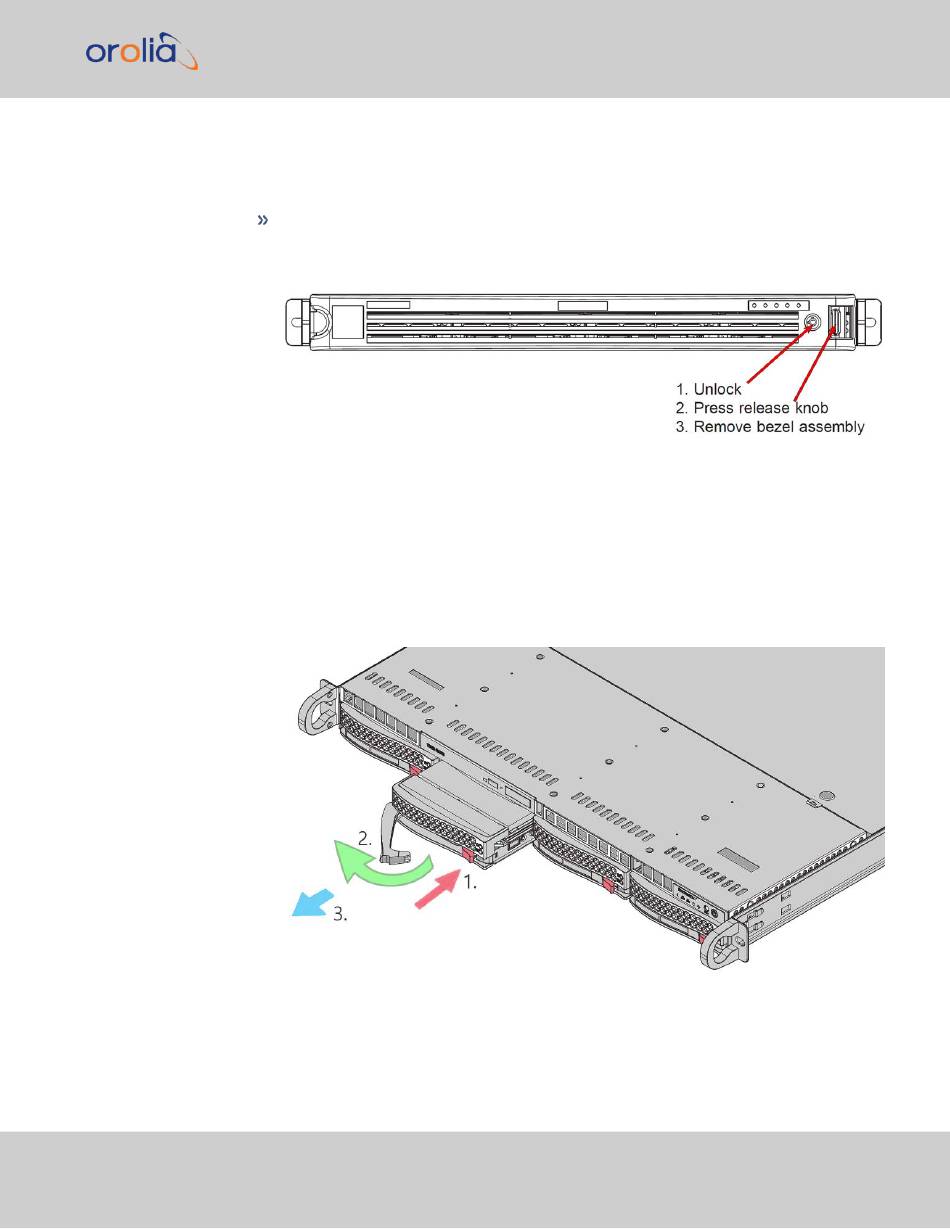

Figure 4-2:
Removing the front bezel
button next to the drive LEDs. The handle will be released.
Figure 4-3:
Removing a HDD carrier
4.3 Hardware Tasks
