1. Navigate to
The data displayed is linked to a specific Ethernet port e.g., ETH0. If you enable addi-
tional Ethernet ports, their throughput data will also be displayed.
In the
in two graphs. Drag the handles at the bottom of the graphs to zoom in on a particular
time frame.
In the
In the
played, including throughput statistics and error statistics. The Mode field indicates
which transmission mode is being used for the given Ethernet port:
Note that the Mode is auto-negotiated by VelaSync. It can be changed only via the
switch VelaSync is connected to, not by using the VelaSync Web UI.
4.7.1.3 NTP Status Monitoring
VelaSync's
formance parameters relevant to your VelaSync at a glance.
CHAPTER 4 • VelaSync User's Manual Rev. 3

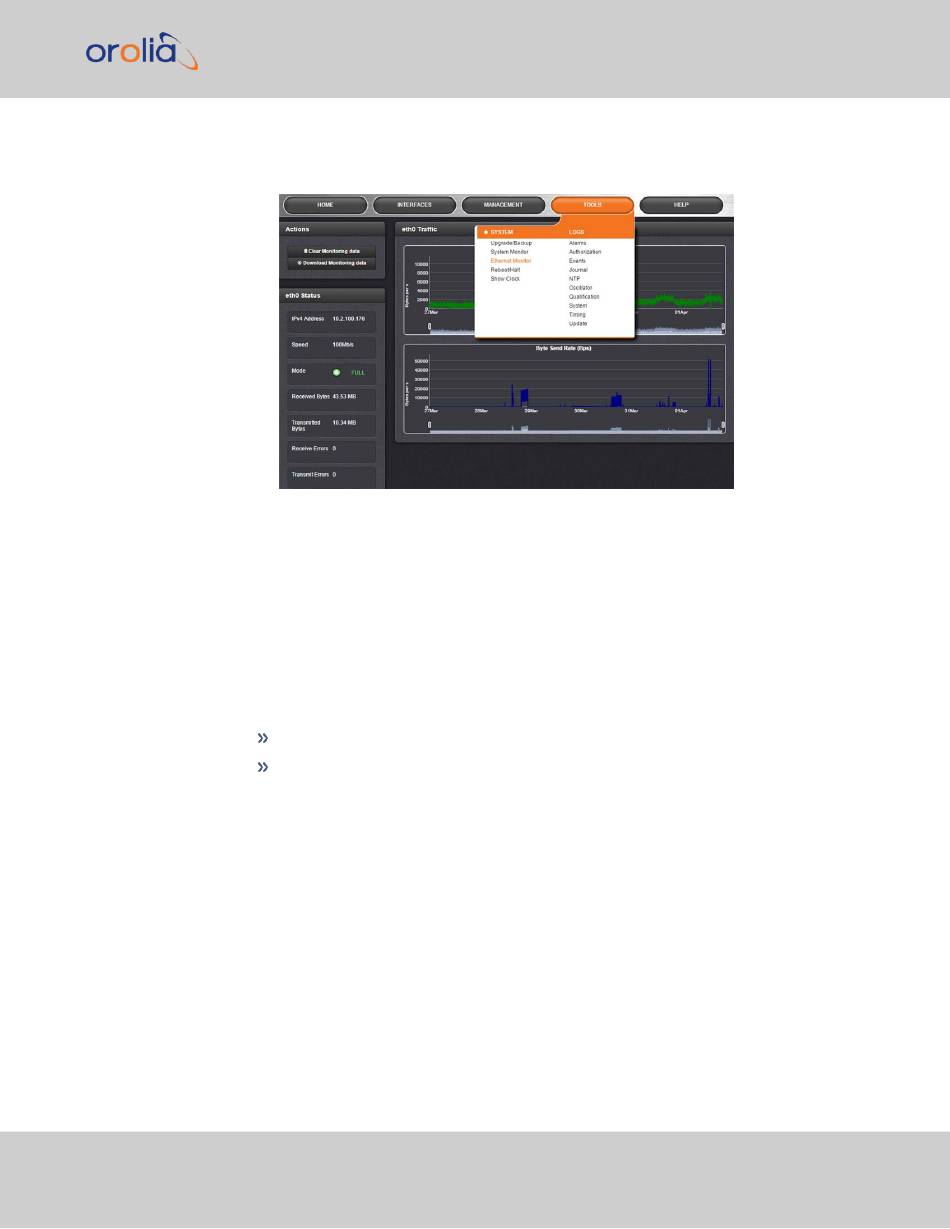

TOOLS > SYSTEM: Ethernet
screen opens:
Traffic pane on the right the traffic throughput in Bytes per second is displayed
Actions panel on the left, you can clear or download monitoring data.
Status panel on the left, information pertaining to the given Ethernet port is dis-
FULL duplex, or
HALF duplex.
NTP Status Summary
Monitor. The Ethernet monitoring
provides a means to monitor NTP status and per-
4.7 Quality Management
