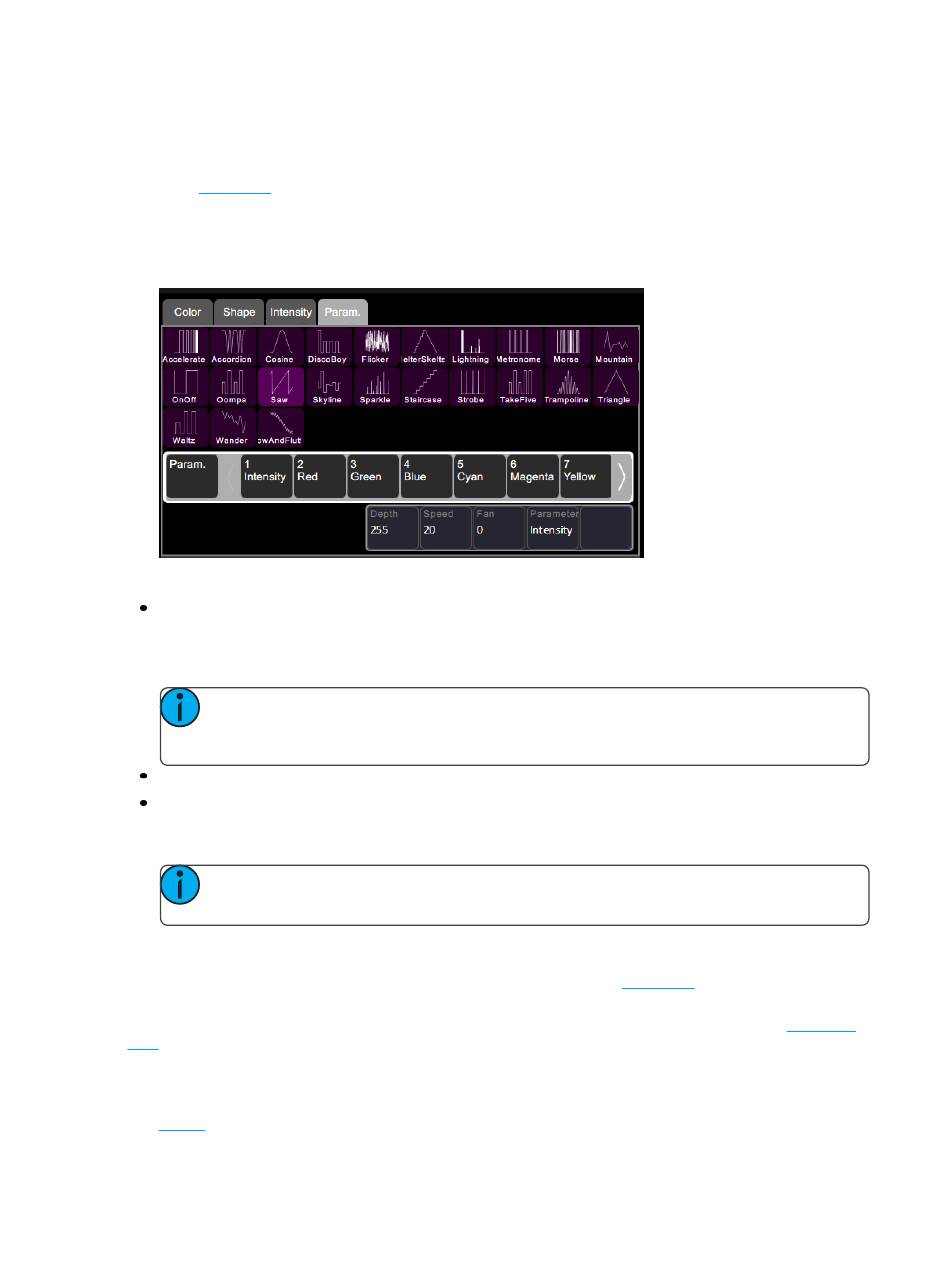

How to Apply a Parameter Effect
1. Select some channels.
2. Go to Controls>Effects.
3. Press
4. Choose the parameter tab from the tab area.
5. Select a pattern.
6. Choose the parameter to be affected, you will see the effect start.
7. Adjust the effect settings for the desired result.
Effect Settings
Depth- The amount that the effect deviates from the static value set on that parameter of the light.
When set to full the parameter follows the effect entirely, and will range from zero to full. When set to
50% the resulting effect will be half way between the light's static rest-state for that parameter (the
value it was before the effect was chosen), and so on.
Speed- The speed or rate that the effect runs at.
Fan- The amount the effect is spread-out over the selected lights. With no fan all the lights change
together at the same time. With increasing values of fan the lights respond to different parts of the
effect, offset from each other.
Running Effect Control
When effects run an icon is displayed in the vertical area to the right of the
any time to manipulate the effects.
Effects may be edited, removed or reduced via the wheel control when they are playing back from
or cues.

Add Effect

To use effects, select some lights and then press Add Effect. Choose an effect type in the tab area, select a
pattern, and then adjust the effect settings for the desired result.
Using Effects
Add Effect.
Note:
For the parameter to vary fully between zero and full you should set the rest-state
value to 50%, then the effect can both raise and lower the parameter value by the full
amount possible.
Note:
The order in which the lights are selected will affect how they are spread-out by the
fan setting.
stage map. This may be selected at
playbacks
