Page 1
ETC Quick Guide ™ ColorSource Relay and Wireless DMX Transmitter Overview Note: ETC fixtures manufactured before July of 2015 require the Universal Yoke Mount Kit. Corporate Headquarters Middleton, Wisconsin, USA Tel +608 831 4116 Service: (Americas) service@etcconnect.com ...
Page 2

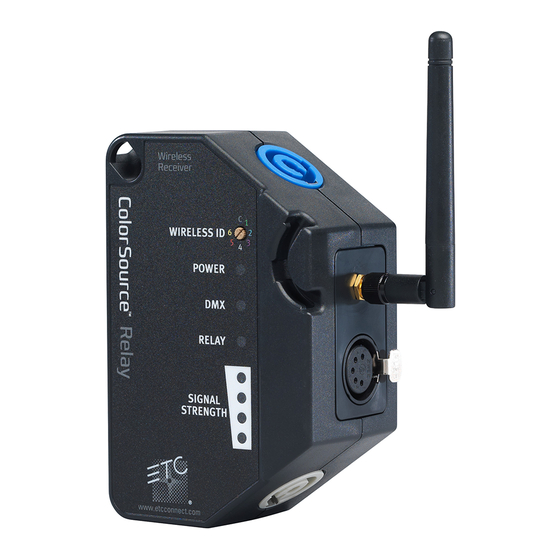

ETC Quick Guide ColorSource Relay and Wireless DMX Transmitter ColorSource Relay manages power switching and DMX for a connected chain of equipment. Relays fire at zero cross and automate a randomized turn on delay up to 2 seconds to minimize effects of inrush while turning on multiple fixtures on a circuit or many circuits in a system.
Page 3
ETC Quick Guide ColorSource Relay and Wireless DMX Transmitter Wireless ID Settings The wireless IDs for the transmitter and receiver Color Source SHoW ID City Theatrical Description SHoW Baby Relay must match.The color of Green Neo Adaptive the Power LED changes...
Page 4
ETC Quick Guide ColorSource Relay and Wireless DMX Transmitter Specifications Note: Only connect this equipment to branch protected circuits of 20A or less. Input Voltage: 90-250V; 47-63hz Environmental: 0-40°C; 5-95% humidity Switching Current: 2 pole; 16A max Mechanical Endurance: 1,000,000 cycles...
