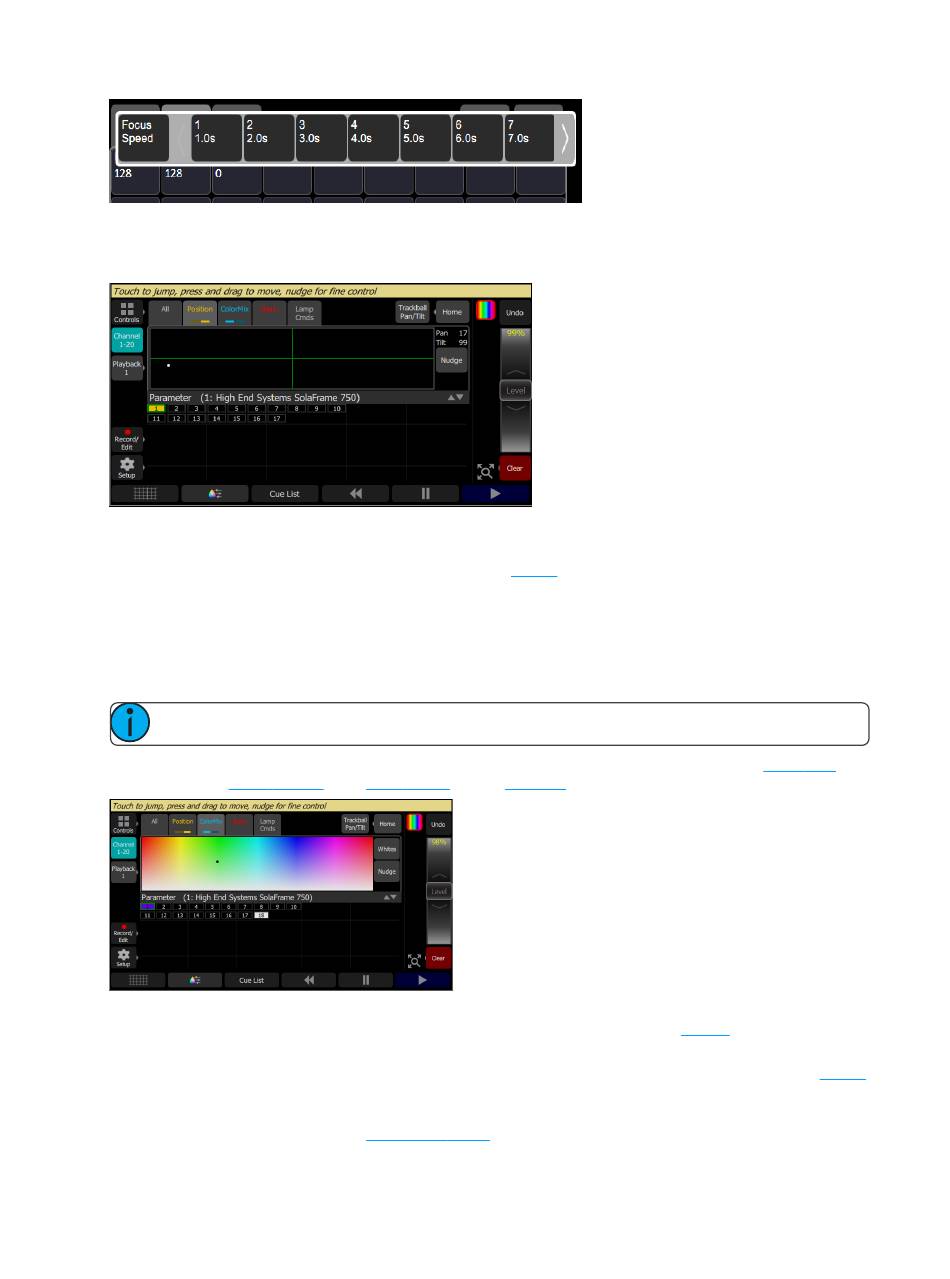

Pick the value box with one press to open a filmstrip view of the available settings. The filmstrip may be
scrolled left or right to see all the choices.
The second page displays a cross hair pan and tilt control. Tap the tab twice to get to the second page.
A white dot is used to indicate the current location. The actual pan and tilt values will display above the Nudge
button. Press anywhere within the crosshairs to move your device.
For fine control of pan and tilt, use the Nudge button. See
Parameter, ColorMix
Lights that have a color mixing system may be operated from this tab. There are two pages of color mixing
tools and one page for direct emitter control. The first page displays the color picker, and the second page dis-
plays the color chips. Tap the tab twice to get to the second page, and three times to get to the direct emitter
page.
Note:
Lights must be selected before a color choice can be applied to them. Select some lights on the
view, or with the
The color picker is a diagram of the visible spectrum varying by hue from left to right and by saturation (pale-
ness) from top to bottom. The color picker can be set to colors or whites mode. See
ation.
A black dot is used to indicate the color selected. Press Nudge to put the color picker in fine mode. See
for more information.
The second page displays the color chips. Color chips are a set of preset color chips. Color chips may be pro-
grammed to carry any color mix. See
Controlling Your Lighting System
The Param button is only present if you have patched lights with those capabilities.
bump buttons if the fader mode
Setup Color Chips
Nudge for more information.
is set to channels, and then pick a color or try several colors.
for more information.
stage map
Whites for more inform-
Nudge
