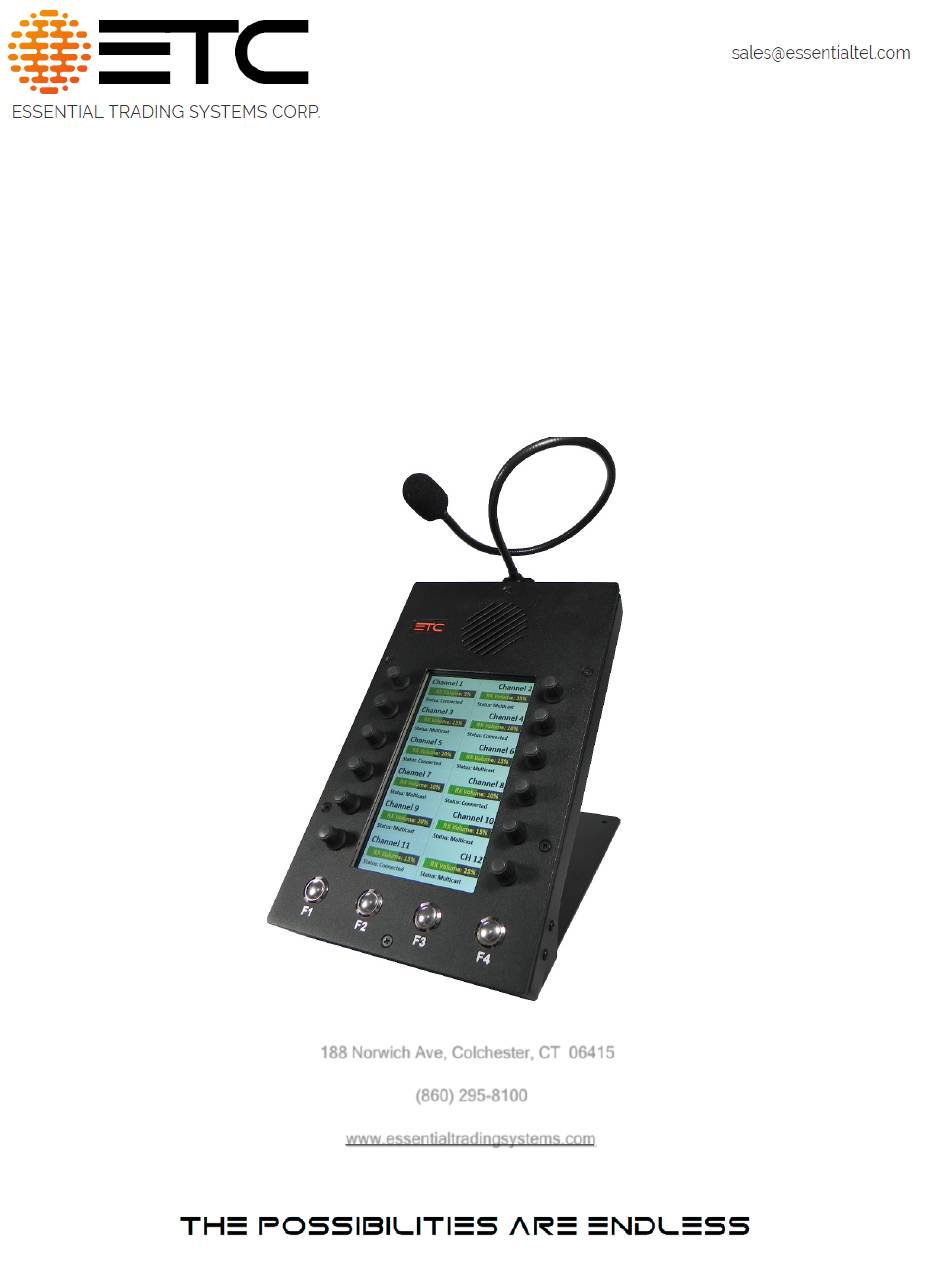

- Page 1 CS-808/812 Administration & Setup Guide 188 Norwich Ave, Colchester, CT 06415 (860) 295-8100 www.essentialtradingsystems.com...
-
Page 2: Table Of Contents
Table of Contents Product Overview ............................4 Product Description ..........................4 Product features ............................4 Administration ............................... 5 Login ................................5 System Settings ............................6 System Information Page ........................8 Networking Page............................. 9 SIP Configuration Page ........................10 DTMF Steering Page ................Error! Bookmark not defined. LMR / EIA Tone Settings ........................ - Page 3 Release notes: 5/23/2022 Ver 1.0.16 Incoming Audio Indication Delay introduced 4/25/2022 Ver 1.0.12 Headset Only mode introduced 2/1/2022 Ver 1.0.7 Initial release firmware REMAINDER OF THIS PAGE LEFT BLANK INTENTIONALLY CS-812 Administration and Set Up Guide Page 3 Essential Trading Systems Corp.
-
Page 4: Product Overview

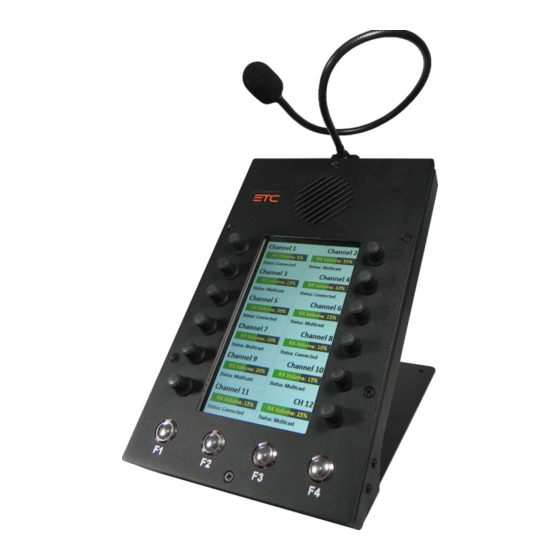

F1-F4 Buttons – These buttons have been added to provide expanded capability of the device. These buttons can be used for numerous different functions such as DTMF steering, EIA Tones, Group call etc. • Handset or Headset – The CS-812 can be equipped with the option to connect either a mono headset or PTT handset. -
Page 5: Administration
IP address. This address will be indicated on the device’s display during boot up. ETC recommends using Chrome or Firefox to ensure best browsing experience. IE9 and above can be used as well. -
Page 6: System Settings
System Settings After logging in, you are brought to the Home page. See Figure 2. Figure 2 Admin Password Change – The administrator password can be changed from any screen by pressing the icon highlighted on figure 2b below. Figure 2b CS-812 Administration and Set Up Guide Page 6 Essential Trading Systems Corp. - Page 7 2.3 Menu Options The menu selections are displayed as tabs across the left side of the web page. Each section will be explained in more detail later in the guide. Figure 3 shows the options available. Figure 3 • System Information – This page displays device information and administrator definable fields for device name.
-
Page 8: System Information Page
System Information Page The System Information page displays pertinent information about the device such as IP address, serial number, firmware version etc. Additionally, there is a Device Name field which the administrator may use to identify the specific device. See Figure 4 below. -
Page 9: Networking Page
Networking Page The Network Settings page allows the administrator to configure the device with a static IP address or configure using DHCP. Device is default DHCP, and IP address will be indicated on the display during boot up. See Figure 5 below. Figure 5 •... -
Page 10: Sip Configuration Page
Lines/channels can be set for different modes of operation, turned on or off, etc., depending on specific application needs. Each channel (N1-N12) is configured in a separate channel tab. See Figure 6 below for SIP channel more, Figure 8 for Multicast channel mode and Figure 9 for Unicast channel mode). - Page 11 (ex. loudspeaker, strobe light etc.). Operator may clear the code by pressing the F4 button. Upon clearing of the alert by the operator an automatic Answer Tone is transmitted. Once Man Down feature is enabled an Answer Tone Frequency and Answer Tone Delay may be configured o Answer Tone Frequency –...
- Page 12 Multicast Port - This field allows the administrator to assign ports associated with each channel multicast address. Note: ETC highly recommends using different and even number ports for each of the multicast channels. This ensures compatibility with other 3rd party VoIP applications.
- Page 13 Unicast Channel Mode Figure 9 • Enabled - Allows the administrator to turn on / off the respective channel/line. • Channel Name – This field allows the administrator to assign a name to the respective channel. This name will be displayed on the device. It is recommended that the name does not exceed 10 characters.
- Page 14 Unicast Channel Mode cont. DTMF Steering – The DTMF Steering section allows an administrator to configure multiple radio ID’s and DTMF codes for each channel as indicated in Figure 8 below. These Radio ID’s will be indicated on the CS-812 display for each channel. The first Radio ID in each channel column will be displayed upon save and reload.
-
Page 15: Lmr / Eia Tone Settings
2.7 LMR / EIA Tone Settings The LMR Settings page allows the administrator to enable and configure Land Mobile Radio EIA tones for each channel of the CS-812 Figure 11 • EIA Tone Remote Enable – Checking this box enables the EIA Tone Remote feature within the CS-812. -
Page 16: Audio Settings Page
Audio Settings Page The Audio Settings page allows the administrator to adjust specific device properties not covered in other configuration pages such as master volume settings and other feature settings. See Figure Figure 12 • Channel VU’s – Allows the administrator to look at channel activity of all 12 channels. •... -
Page 17: Update Firmware
Volume Control/PTT button (aka VCB). This channel will have a visual indication in a form of a checkbox. User can now simply press the PTT button on the ETC Handset or the Headset Belt Pack PTT button to transmit on the selected channel. The VCB can also be used to transmit on any channel including the selected on using the gooseneck microphone. - Page 18 Figure 12 NOTE: AFTER UPDATING FIRMWARE YOU MUST (Shift F5) REFRESH YOUR BROWSER WINDOW FOR NEW FEATURES TO BE DISPLAYED. Most browsers will cache previous pages of the device and therefore a refresh must be performed after a firmware update. Select Man down WAV File –...
-
Page 19: Diagnostics Page
Diagnostics Page The Diagnostics page has been provided to allow an administrator access to troubleshooting tools such as Activity Log. These tools will be useful in providing ETC information specific to the device to aid in diagnosing problems. See Figure 13. -
Page 20: Frequently Asked Questions
Q: Channel is not registering? A: Via device web page, check to make sure the respective channel is enabled and has the correct SIP connection information i.e., SIP server IP, extension, password, etc. Q: How do I change channel’s label? A: Labels can be changed on each channel tab. -
Page 21: Appendix
Appendix Specifications Media • Bandwidth - supports codecs: G.711 80 kbps, G.729 Channels 8kbps and Speex. • (12) SIP/Multicast/Unicast Lines • SIP, UDP • Linux OS, • Call Types Audio – 300Hz – 3kHz, 1 Watt RMS, EIA Tones, DTMF •... -
Page 22: Cs-812 Limited Warranty
(2) to refund the price paid, provided that the hardware is returned to the point of purchase or such other place as ETC may direct with a copy of the sales receipt or dated itemized receipt.
