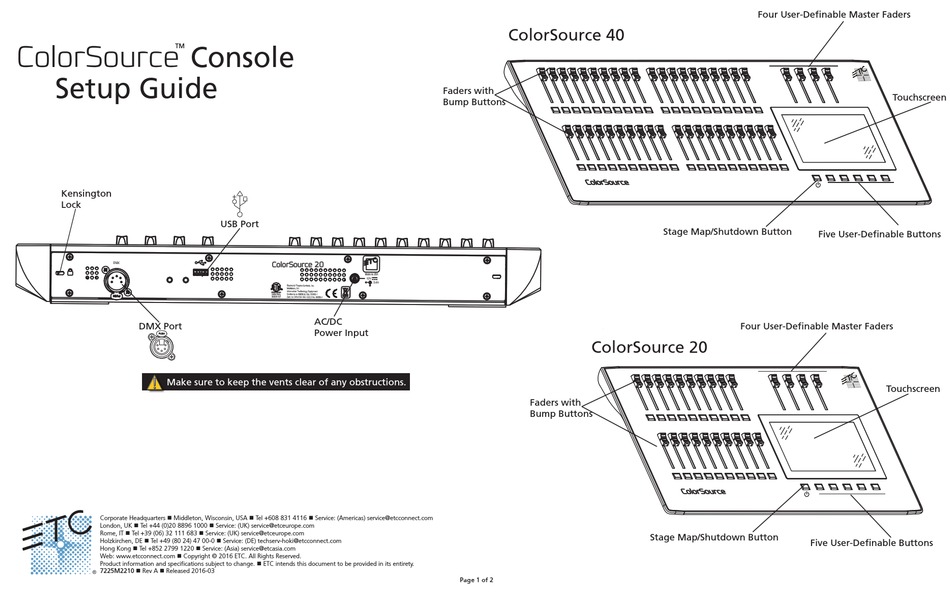

Console
TM

Setup Guide

Kensington
Lock
USB Port
DMX Port
Make sure to keep the vents clear of any obstructions.
Corporate Headquarters  Middleton, Wisconsin, USA  Tel +608 831 4116  Service: (Americas) service@etcconnect.com
London, UK  Tel +44 (0)20 8896 1000  Service: (UK) service@etceurope.com
Rome, IT  Tel +39 (06) 32 111 683  Service: (UK) service@etceurope.com
Holzkirchen, DE  Tel +49 (80 24) 47 00-0  Service: (DE) techserv-hoki@etcconnect.com
Hong Kong  Tel +852 2799 1220  Service: (Asia) service@etcasia.com
Web: www.etcconnect.com  Copyright © 2016 ETC. All Rights Reserved.
Product information and specifications subject to change.  ETC intends this document to be provided in its entirety.
7225M2210  Rev A  Released 2016-03
Faders with
Bump Buttons
AC/DC
Power Input
Page 1 of 2
ColorSource 40
Stage Map/Shutdown Button
ColorSource 20
Faders with
Bump Buttons
Stage Map/Shutdown Button
Four User-Definable Master Faders
Touchscreen
Five User-Definable Buttons
Four User-Definable Master Faders
Touchscreen
Five User-Definable Buttons
