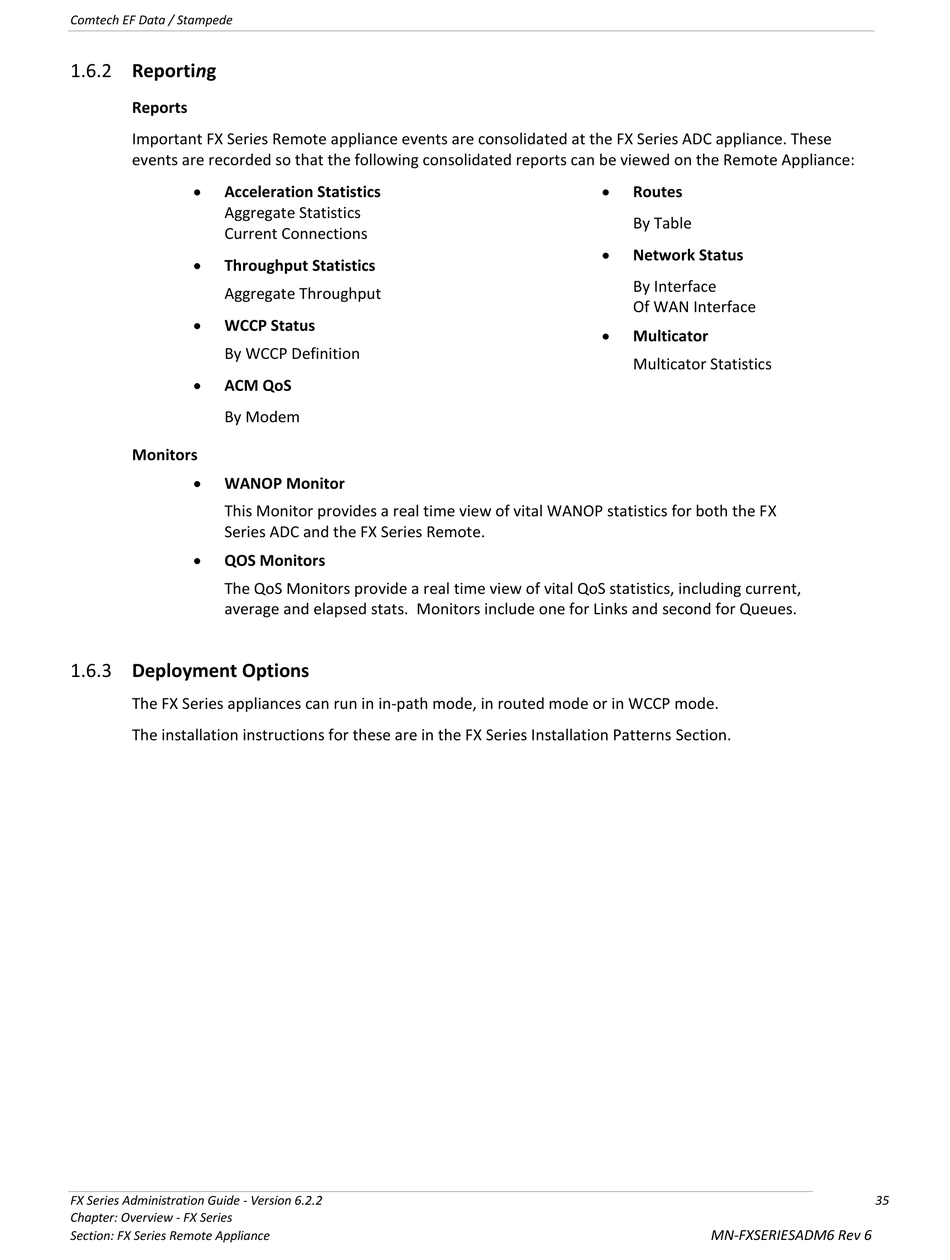

1.6.2 Reporting

Reports
Important FX Series Remote appliance events are consolidated at the FX Series ADC appliance. These
events are recorded so that the following consolidated reports can be viewed on the Remote Appliance:

Acceleration Statistics
Aggregate Statistics
Current Connections

Throughput Statistics
Aggregate Throughput

WCCP Status
By WCCP Definition

ACM QoS
By Modem
Monitors

WANOP Monitor
This Monitor provides a real time view of vital WANOP statistics for both the FX
Series ADC and the FX Series Remote.

QOS Monitors
The QoS Monitors provide a real time view of vital QoS statistics, including current,
average and elapsed stats. Monitors include one for Links and second for Queues.

1.6.3 Deployment Options

The FX Series appliances can run in in-path mode, in routed mode or in WCCP mode.
The installation instructions for these are in the FX Series Installation Patterns Section.
FX Series Administration Guide - Version 6.2.2
Chapter: Overview - FX Series
Section: FX Series Remote Appliance

Routes
By Table

Network Status
By Interface
Of WAN Interface

Multicator
Multicator Statistics
