Back Panel
4 System CPU Fans
Power-on Switch
AC Power-in socket -
Power Supply Fan
Summary of Specifications
Network Interface (11) 10/100/1000,
Power Supply – UL Approved 200 W (Auto 100V – 200V)
Rack Mounting
Rack mounting hardware is included with FX-1010 appliance
FX Series Administration Guide - Version 6.2.2
Chapter: Overview - FX Series
Section: FX Series Appliances Data Sheet

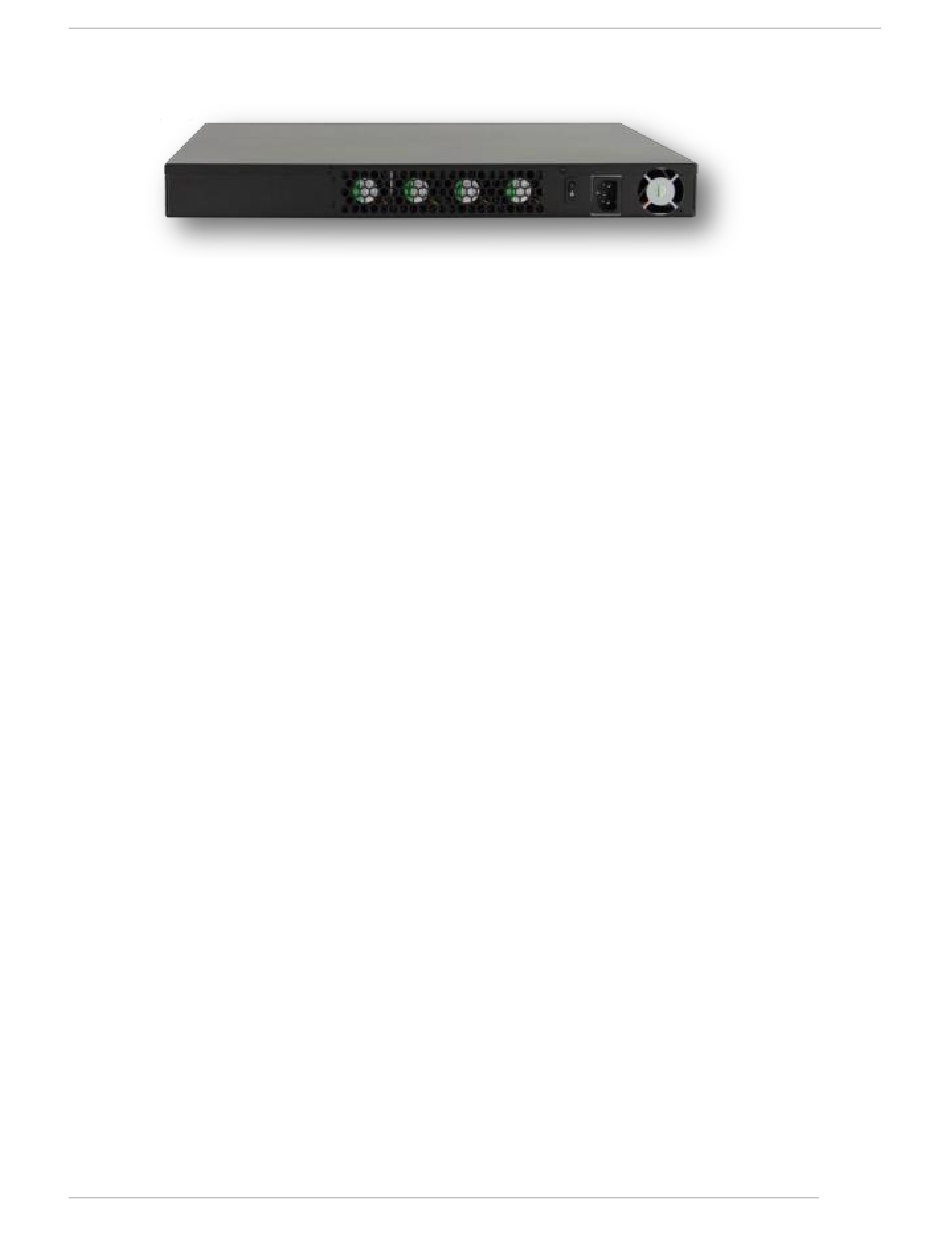

Figure 1-11 FX Series FX-1010 Rear Panel

200W ATX power supply unit with input range of 90~264V@47-63Hz.
