6 FX Series Status

6.1

FX Series ADC Status

This section provides the reporting options and statistics on a current and aggregate basis of many
parameters which are monitored on the FX Series.
QOS Monitors (see Section 6.2 below)
The QoS Monitors by Queue and by Link provide real time views of vital QoS statistics, including
current, average and elapsed statistics.
WANOP Monitor
Perform real-time monitoring of the acceleration activity via our JavaScript status monitor applet. In
order to run this applet, JavaScript must be enabled in your browser settings.
View Current Status
View XML formatted reports of current acceleration statistics, traffic control, network interfaces, routes,
current connection, and current throughput.
FX Series Administration Guide - Version 6.2.2
Chapter: FX Series Status
Section: FX Series ADC Status

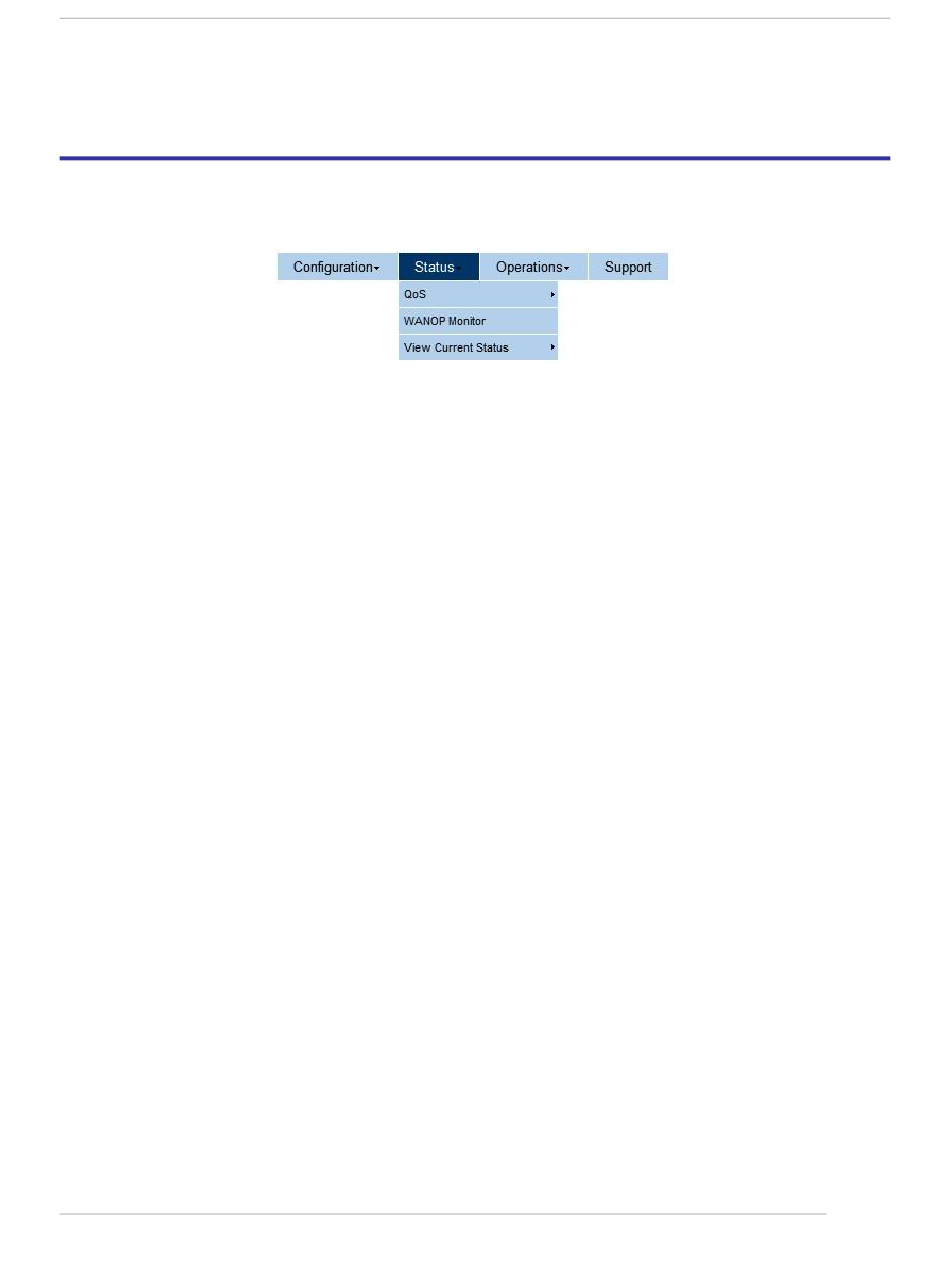

Figure 6-1 FX Series Status Menu
