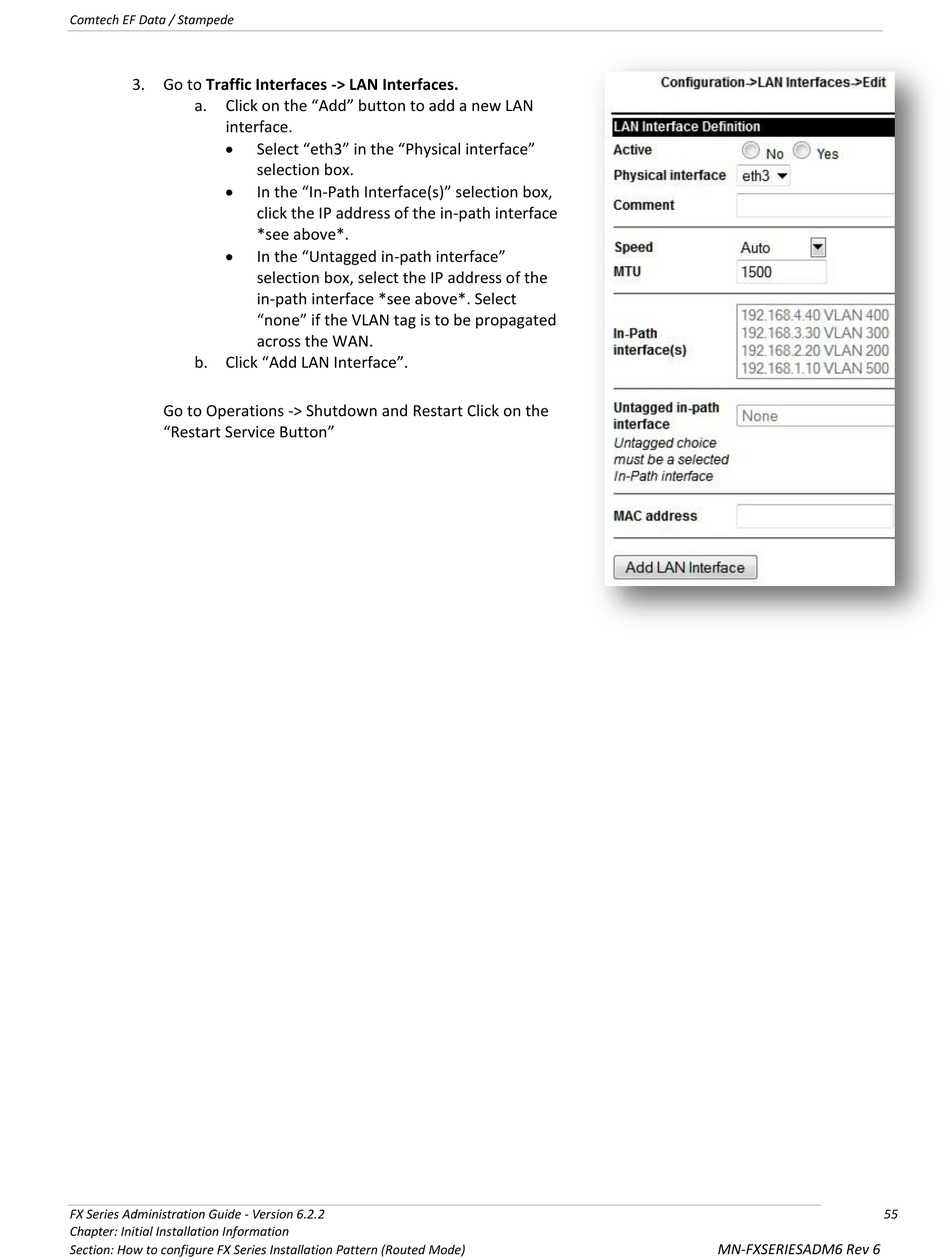

3. Go to Traffic Interfaces -> LAN Interfaces.
a. Click on the "Add" button to add a new LAN
interface.



b. Click "Add LAN Interface".
Go to Operations -> Shutdown and Restart Click on the
"Restart Service Button"
FX Series Administration Guide - Version 6.2.2
Chapter: Initial Installation Information
Section: How to configure FX Series Installation Pattern (Routed Mode)
Select "eth3" in the "Physical interface"
selection box.
In the "In-Path Interface(s)" selection box,
click the IP address of the in-path interface
*see above*.
In the "Untagged in-path interface"
selection box, select the IP address of the
in-path interface *see above*. Select
"none" if the VLAN tag is to be propagated
across the WAN.
