6.2 QOS Monitors
The QOS Monitors provide a real time view of vital QoS statistics, including current, average and elapsed stats. All
elapsed and average stats begin with the last reset of the screen.

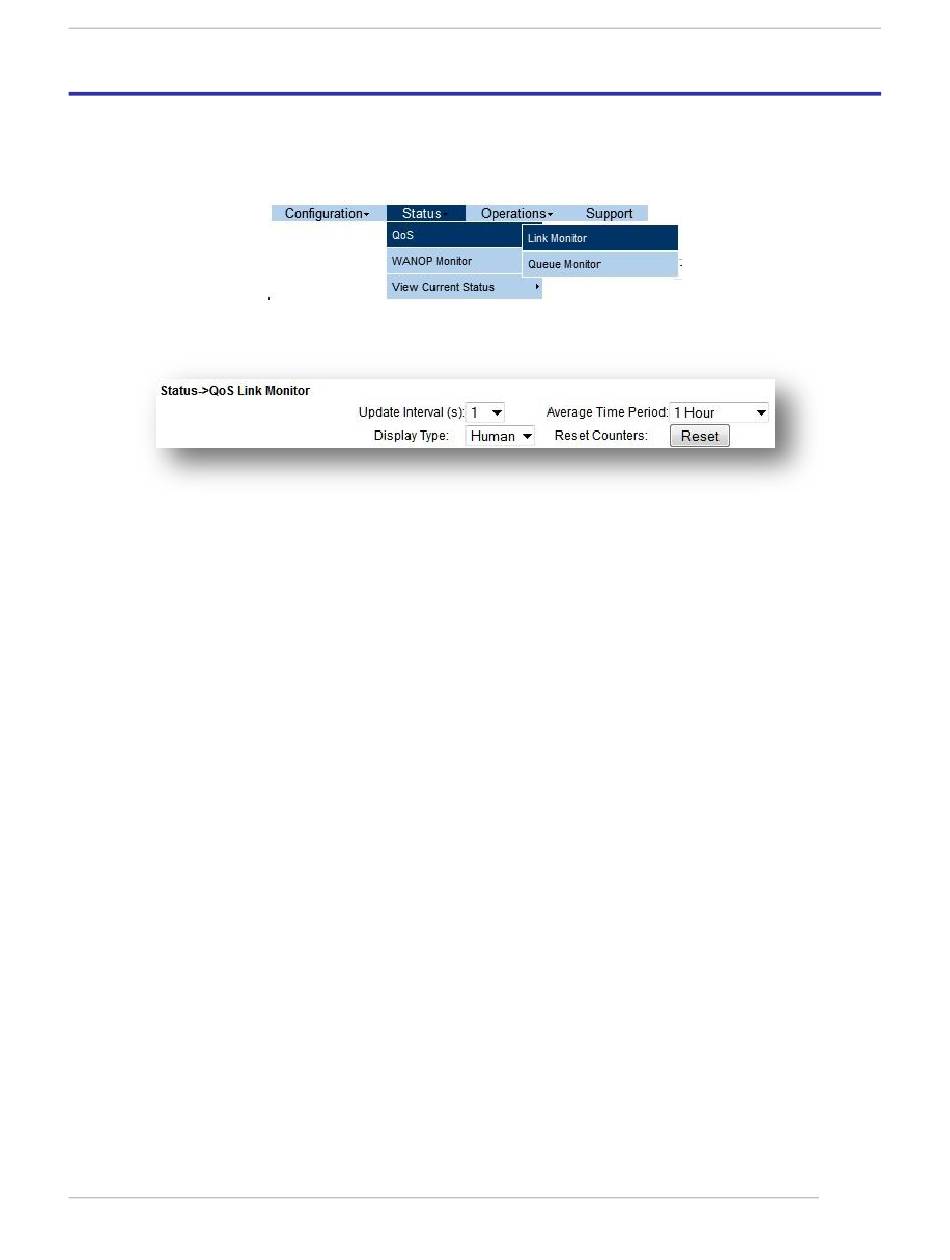

QOS Monitor Options
Pull Downs
Update Interval:
This determines the rate at which the screen is updated. There are selectable rates from 1 to 60
seconds. Every time the screen is updated, the browser gets the statistics from the FX. Keep in
mind the RTT to the appliance as well as the network capacity in setting this parameter.
Average Time Period:
This selects the time for which stats are averaged in the associated field. Options are 1, 24, 72
hours and 30 days.
Display Type:
Raw shows the raw number. Human readable uses metric conventions. All data rate numbers
are given as powers of 10. In this case, K = 10
data rate and total number of packets sent.
When referring to the number of bytes or packets sent, the convention is powers of 2. In this
case, K = 2
Reset Button:
The Reset button clears and restarts all statistics.
View QoS Queue Settings:
This is a hyperlink to the queue screen.
FX Series Administration Guide - Version 6.2.2
Chapter: FX Series Status
Section: QOS Monitors
10
20
30
, M = 2
, G = 2
and T = 2
3
6
9
, M – 10
, G = 10
, and T = 10
40
.
12
. This refers to both
123
MN-FXSERIESADM6 Rev 6
