Comtech EF Data / Stampede
6.3
FX Series Remote Status
6.3.1 FX Series Remote WANOP Monitor
The WANOP Monitor provides a real time view of vital server statistics.
Real-Time Statistics
CPU (%):
This represents the CPU utilization of the FX for all system tasks.
Memory usage (%):
This shows the percent of RAM being consumed by the FX Series Remote including both the WAN
optimization service and the operating system. When this value approaches 90%, the appliance
will automatically reduce its memory resource consumption to prevent service disruption.
Active Flows:
The number of UDP and TCP connections currently flowing through the FX Remote and also the
maximum capacity is shown. If the current number of active flows reaches 99% of capacity, then
the FX will either go into "Fail-To-Wire" mode or not allow new connections to be established.
Throughput:
This is the throughput, in bits per second, since the last refresh interval.
WAN bytes processed:
Total number of bytes processed, both sent and received, by the acceleration server for traffic
between clients and the acceleration server.
WAN bytes saved:
This represents the reduction in traffic due between clients and the acceleration server due to
various acceleration techniques such as data compression, cache differencing, JPEG reduction,
Dynamic Data Suppression etc.
FX Series Administration Guide - Version 6.2.2
Chapter: FX Series Status
Section: FX Series Remote Status

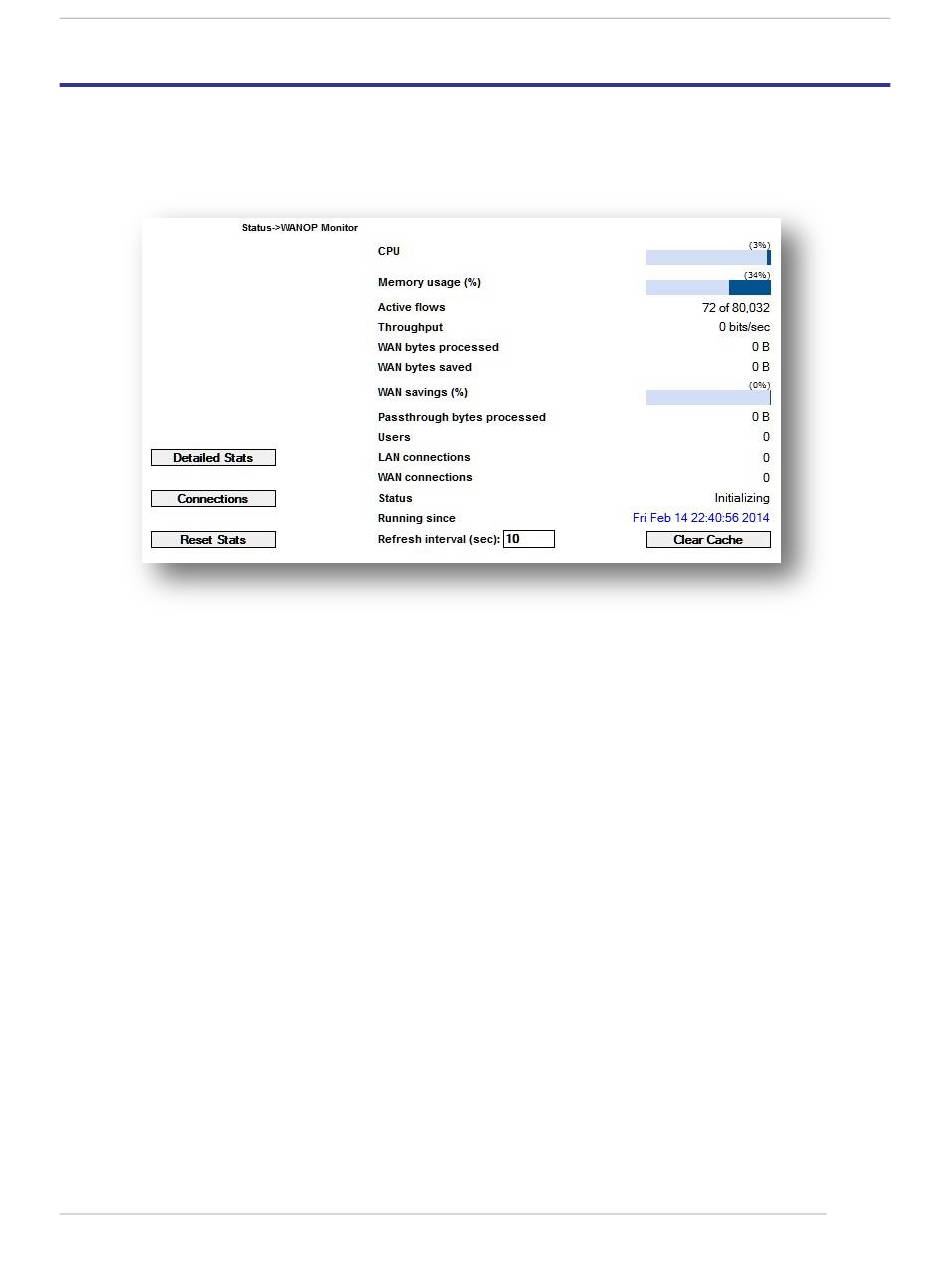

Figure 6-6 FX Series Remote Real-Time Monitor Screen
129
MN-FXSERIESADM6 Rev 6
