Comtech EF Data / Stampede
6.2.1 QoS Link Monitor
The QOS Link Monitor provides a real time view of vital QoS statistics, including current, average and
elapsed stats. All elapsed and average stats begin with the last reset of the screen
Link
All defined links are represented in the list
Name:
This is the name of the link and is a hyper link to the configuration screen for that link.
Queues:
This is a hyper link to the QOS Queue Monitor screen with only the queues associated for this link
displayed.
Max Data Rate:
If ACM is enabled, this is the rate that the modem is currently running at. If ACM is not enabled, this is
the configured clear sky data rate.
ACM:
This is a flag that indicates if ACM is enabled for the link.
Current
There are three parameters associated with the current WAN Rate
WAN Rate:
This shows the data rate averaged over the previous 5 seconds.
PPS:
This is the current Packet/second rate averaged over the previous 5 seconds
Compression (%)
This indicates the percentage bandwidth reduction due to header and payload compression.
Drop Rate:
This shows the drop rate averaged over the previous 5 seconds.
Average Rates:
This average is set with the average time period pull down menu shown above. Average time can be 1, 24, 72
hours or 30 days.
The fields in Average Section update at intervals that are a function of the Average Time Period. When
the Average Time Period is set at 1 Hour, the fields update every minute on the minute as given by the
"Since Last Reset" timer and represent the statistics for the previous hour. If the total time is less than an
hour, then the fields represent the data since the last reset. For example, if it's been 37 minutes, 14
seconds since the reset, then the data represents the first 37 minutes of traffic.
FX Series Administration Guide - Version 6.2.2
Chapter: FX Series Status
Section: QOS Monitors

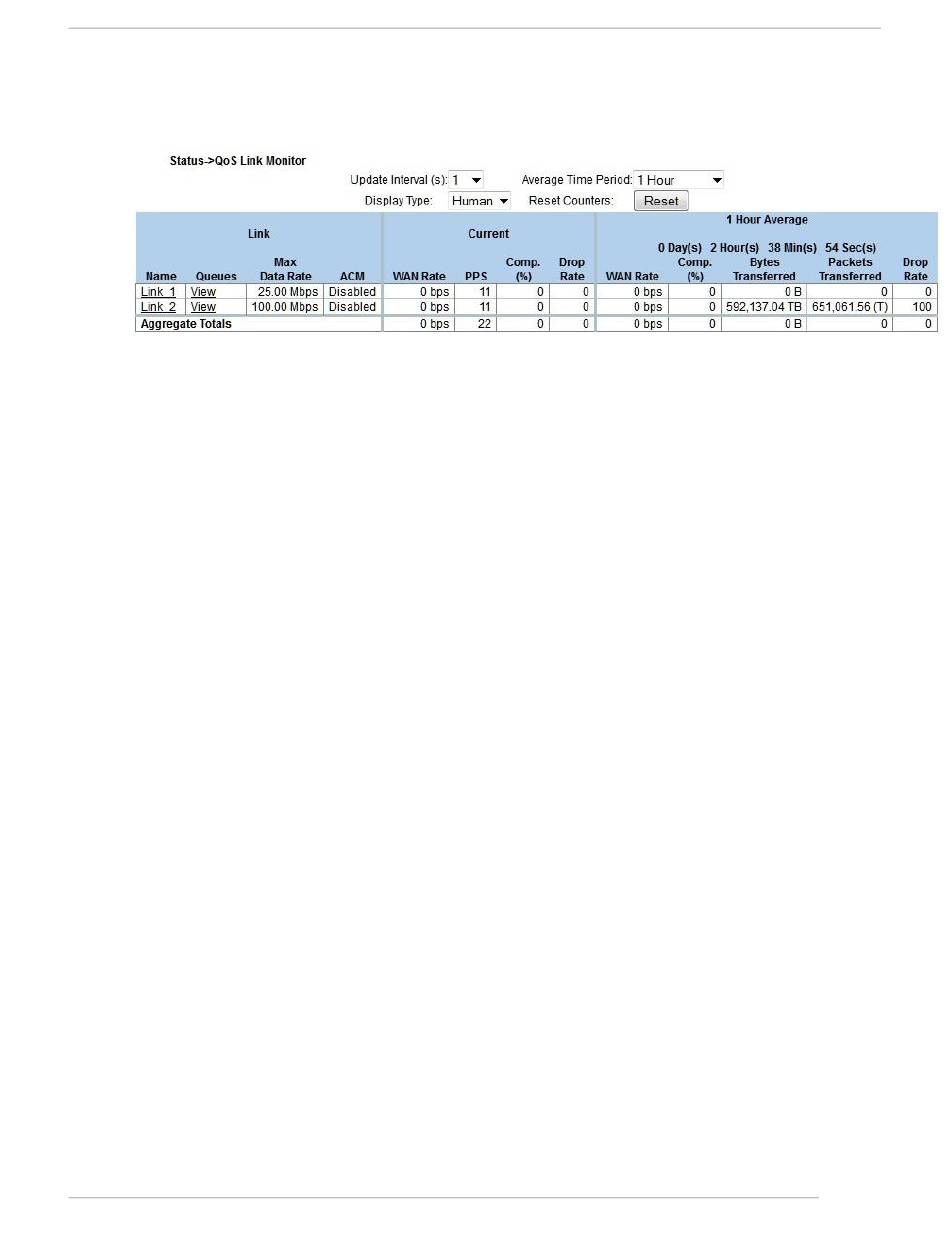

Figure 6-4 FX Series QOS Monitor by Link
124
MN-FXSERIESADM6 Rev 6
