6.3.2 FX Series Remote Current Status Reports

This page allows you to view various reports generated by the FX Series Remote. On most of the reports,
you can press the "F5" key and your browser will update the report. See the ADC Current Status Reports
section 6.1.2 above for examples of the screens not included here.
Acceleration Statistics
Aggregate Statistics:
This is a recording of the acceleration tallies that have accumulated since the last time that they
were cleared or since the acceleration server software was last restarted.
Current Connections:
This report shows the user names, connection type, and other data of each currently active
connection to the acceleration server.
Throughput Statistics
Aggregate Throughput:
This is a recording of acceleration server throughput statistics based on current statistics since
either the last time that the statistics were cleared or the configured "throughput statistics
interval" has elapsed. The "delta" value in the upper-left corner of the report indicates the
number of seconds that elapsed in the throughput interval.
Aggregate Throughput Calculation:
A snapshot of the current statistics was taken "delta" seconds ago; each counter in this
snapshot is then subtracted from corresponding counter in the "current statistics". The
remainders are then divided by the "delta" value to yield throughput values on a "per
second" basis.
Other Status Reports
WCCP Status > by WCCP Definition:
This provides a summary status of all of the service groups that the FX Series Remote is a
member. This report includes redirection maps and other important counters.
ACM QoS > by Modem:
This provides a summary status of the satellite modems if modem polling is enabled. If the polled
data rate exceeds the licensed data rate, then the licensed data rate will be shown in the modem
status table.
FX Series Administration Guide - Version 6.2.2
Chapter: FX Series Status
Section: FX Series Remote Status

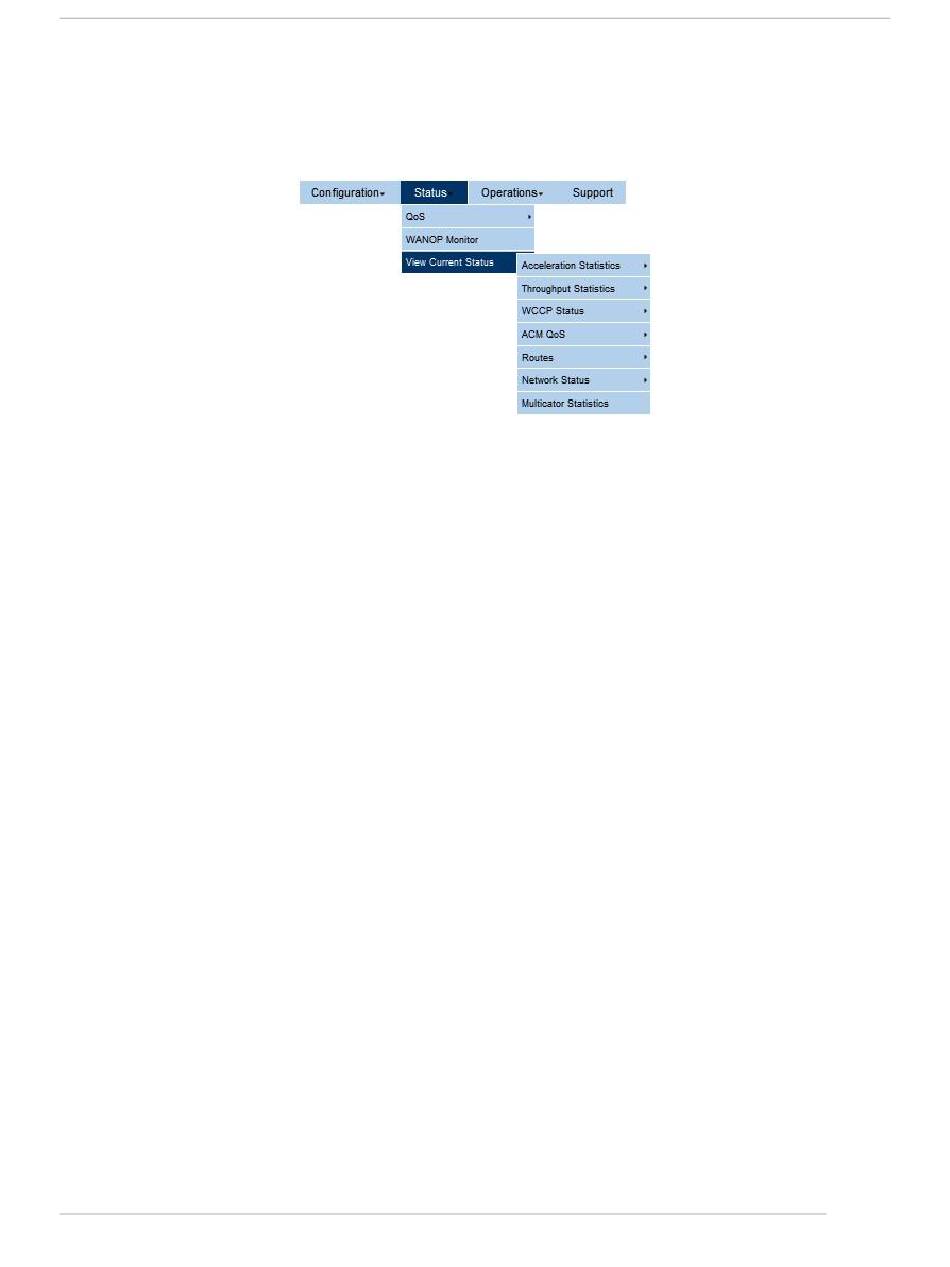

Figure 6-7 FX Series Remote Current Status Menu

NOTE: It is possible that some of the values in the report are negative, meaning that
a counter declined at a certain rate (for example CPU utilization may go down) over
the throughput interval. The size of the throughput log file is relatively constant.
