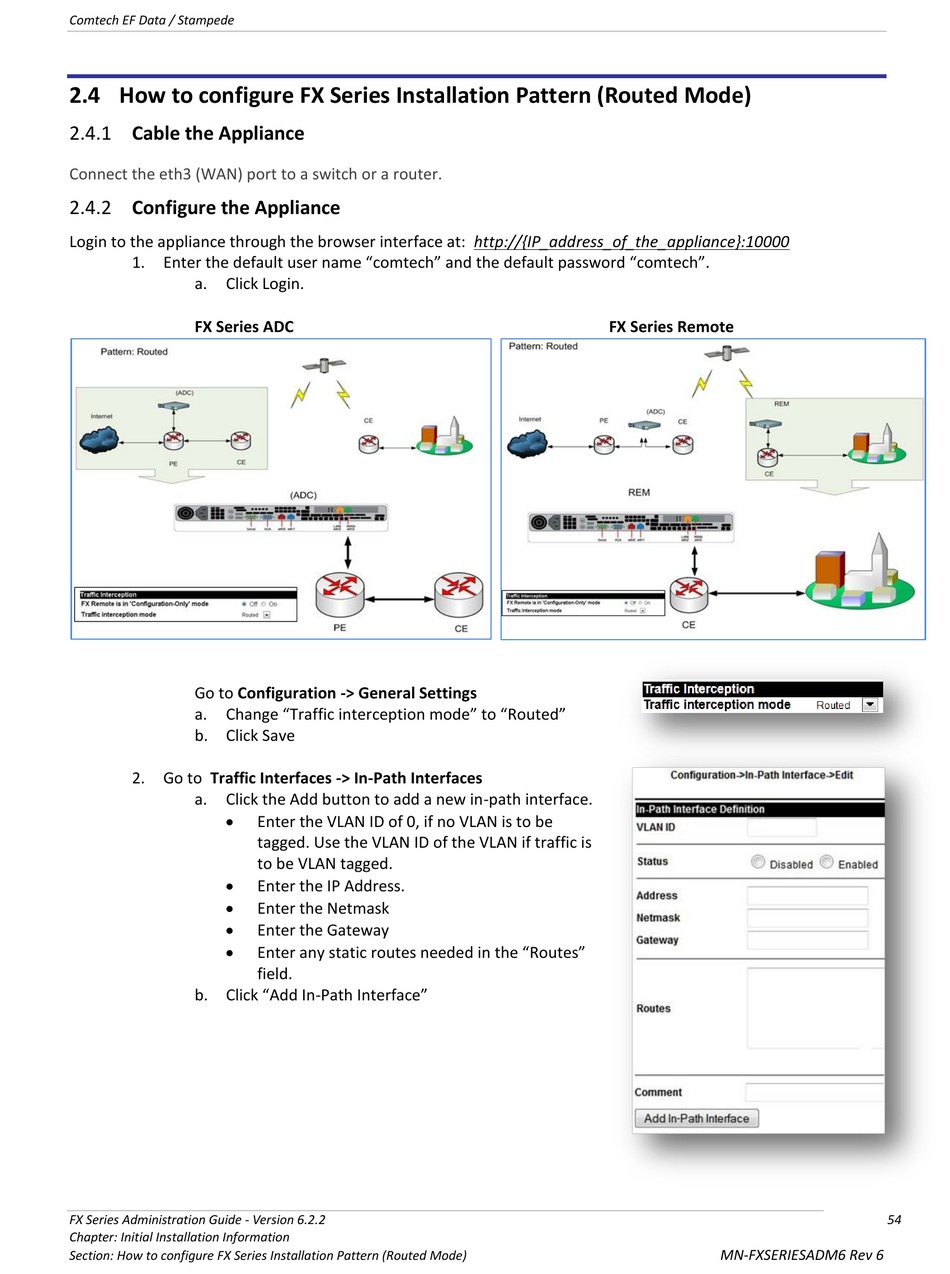

2.4 How to configure FX Series Installation Pattern (Routed Mode)

2.4.1 Cable the Appliance

Connect the eth3 (WAN) port to a switch or a router.

2.4.2 Configure the Appliance

Login to the appliance through the browser interface at: http://{IP_address_of_the_appliance}:10000
1. Enter the default user name "comtech" and the default password "comtech".
a. Click Login.
FX Series ADC
Go to Configuration -> General Settings
a. Change "Traffic interception mode" to "Routed"
b. Click Save
2. Go to Traffic Interfaces -> In-Path Interfaces
a. Click the Add button to add a new in-path interface.





b. Click "Add In-Path Interface"
FX Series Administration Guide - Version 6.2.2
Chapter: Initial Installation Information
Section: How to configure FX Series Installation Pattern (Routed Mode)
Enter the VLAN ID of 0, if no VLAN is to be
tagged. Use the VLAN ID of the VLAN if traffic is
to be VLAN tagged.
Enter the IP Address.
Enter the Netmask
Enter the Gateway
Enter any static routes needed in the "Routes"
field.
