3.3 Traffic Interface Settings

3.3.1 How to Configure In-Path Interfaces

The In-Path Interfaces settings allow you to maintain in-path interfaces. A list of previously defined in-
path interfaces are displayed in the order in which they were defined. An existing entry may be chosen by
clicking on the IP Address. The user adds interfaces by clicking the "Add" button. Interfaces can be
"enabled" or "disabled" by checking box to the left of the IP address and clicking on the enable or disable
button. Clicking on the Interface "Name" will allow you to modify that Interface. Each of those actions
will then lead to an In-Path Interface screen.
FX Series Administration Guide - Version 6.2.2
Chapter: FX Series Configuration
Section: Traffic Interface Settings

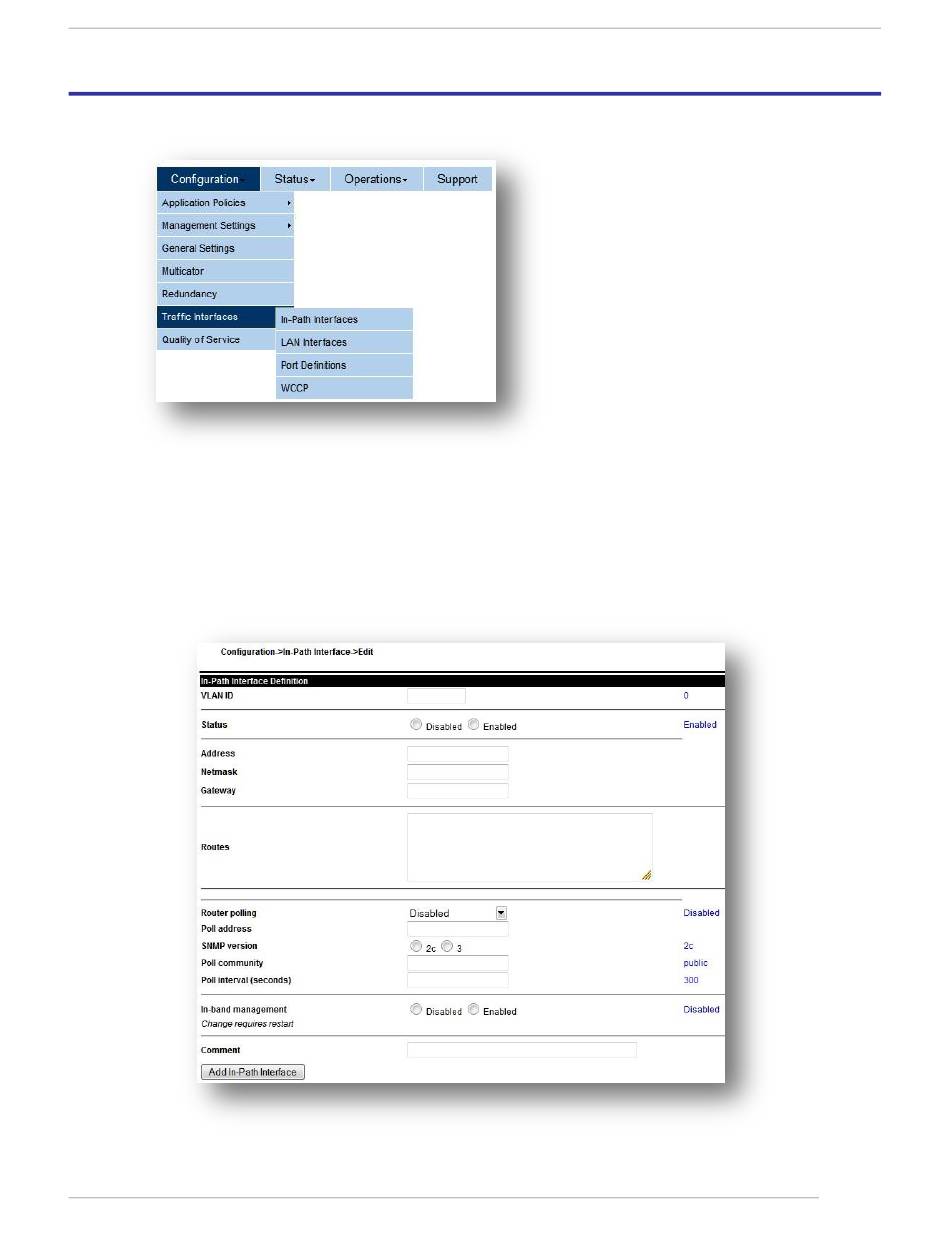

Figure 3-6 FX Series In-Path Interfaces Screen
