Configure Breakout Mode - Network Critical SmartNA-X User Manual

Note: Slicing applies to the ingress traffic mapped to other system ports, not to the Live Ports themselves.
4. Configure port communication settings, noting the following requirements for effective port communications:
Mapping to other TAP modules
If a V-Line module is mapped to another TAP module, the V-Line module ports must be set to 1G bps.
Live ports
If operating in V-Line, Aggregation or Breakout mode, the V-Line module live ports (A and B) must have
matching communication settings (same speed, duplex and MDI settings).
Tool ports
If operating in V-Line or Breakout mode, the V-Line module tool ports (C and D) must have the same
communication settings as the live ports (A and B) .
5. Click Review/apply and review pending changes. To apply these changes to the system, click Apply changes or click
'X' to cancel.

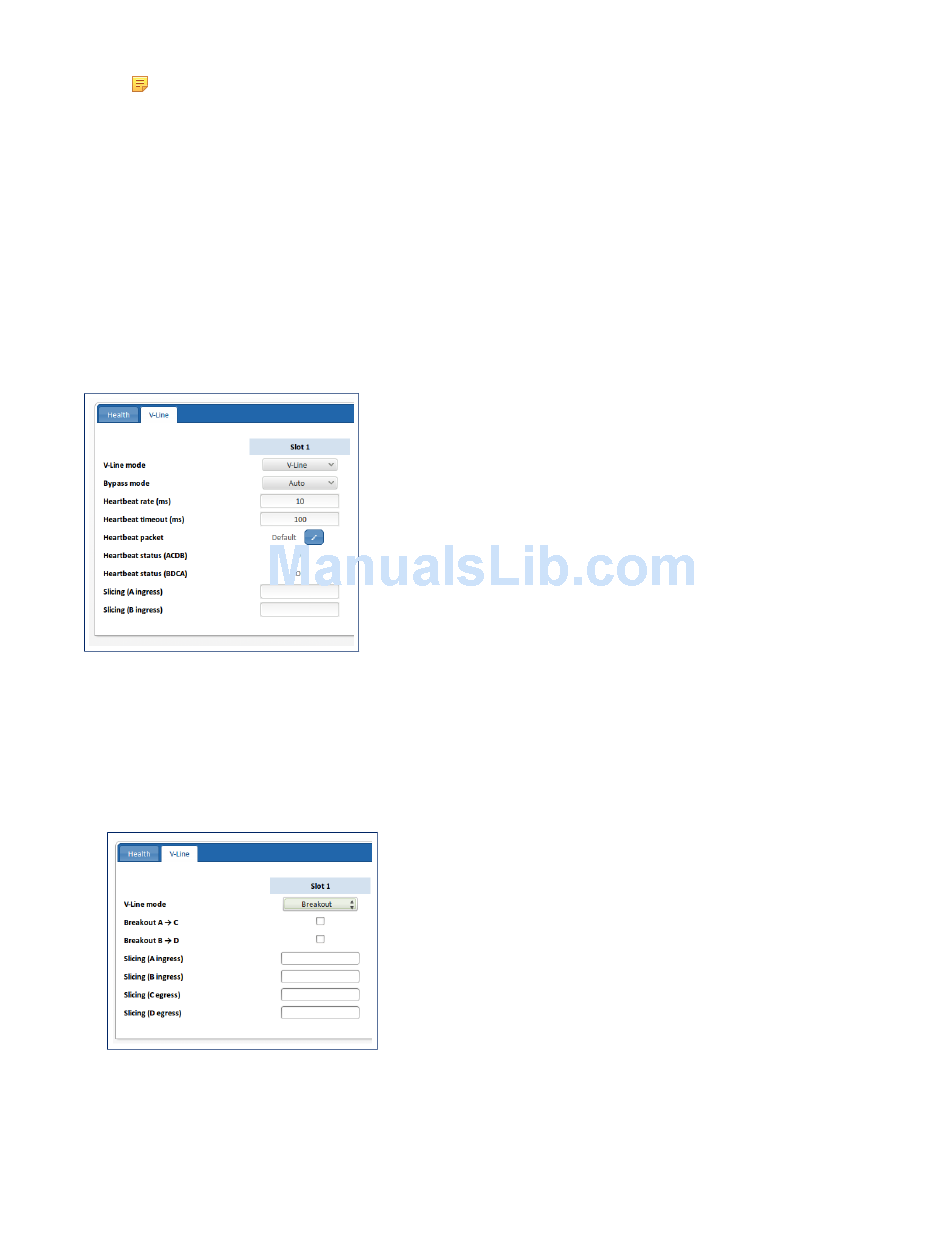

Figure 58: V-Line Module: V-Line mode settings dialog

Configure Breakout mode

1. Click on the V-Line module you wish to configure and select the V-Line tab.
2. From V-Line mode, select Breakout. The V-Line Module: Breakout mode dialog is displayed (see the figure below).
Figure 59: V-Line Module: Breakout mode settings dialog
3. Enter values for the parameters.
™ ©
