62 | Working with the V-Line Module | SmartNA-X 1G/10G Modular

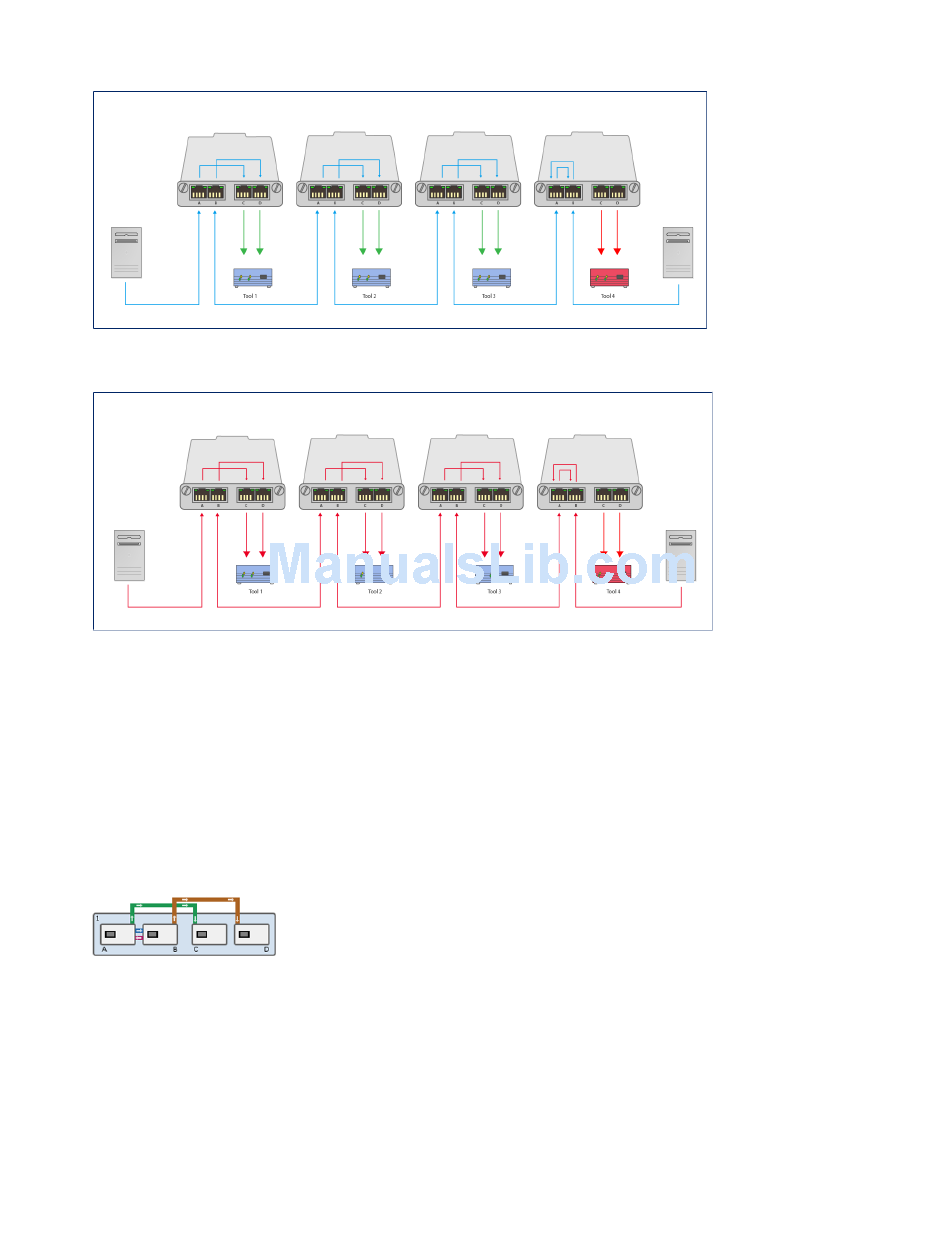

Figure 51: V-Line auto-bypass mode: Tool 4 has failed and is being bypassed but Tools 1-3 continue to receive data.
Figure 52: V-Line reverse-bypass mode: Tool 4 has failed and the network has been stopped until Tool 4 is back online.
When operating in V-Line mode the AB port pair always operate as a TAP, with failsafe enabled. If required, you can
override this to disable the failsafe behaviour for that port pair by activating Reverse Bypass. For more information about
failsafe, see About TAP mode on page 43.

Breakout mode

V-Line Module Breakout mode (see the figure below) sends copies of traffic from the live network A and B ports to a
selectable combination of C and D ports with or without optional packet slicing. Packets received on the live network
ports (A, B) can be passed to other modules in the system. Filters are not supported on maps from the V-Line module to
other modules in the system
Figure 53: Breakout port mapping
When operating in Breakout mode, the AB port pair always operate as a TAP with failsafe enabled. If required, you can
override this to disable the failsafe behaviour for the AB port pair by activating Reverse Bypass. For more information
about failsafe, see About TAP mode on page 43.
™ ©
