186 | V-Line Module Specifications | SmartNA-X 1G/10G Modular
Live ports (A & B)
Feature
Interface
Capability
Failover Protection (Bypass TAP
Mode)
Data Filtering
Jumbo Frames
Link Failure Propagation
Link Synchronization
Latency
TAP ports (C & D)
Feature
Interface
Capability
Failover Protection
Data Filtering
Jumbo Frames
Link Failure Propagation
Link Synchronization

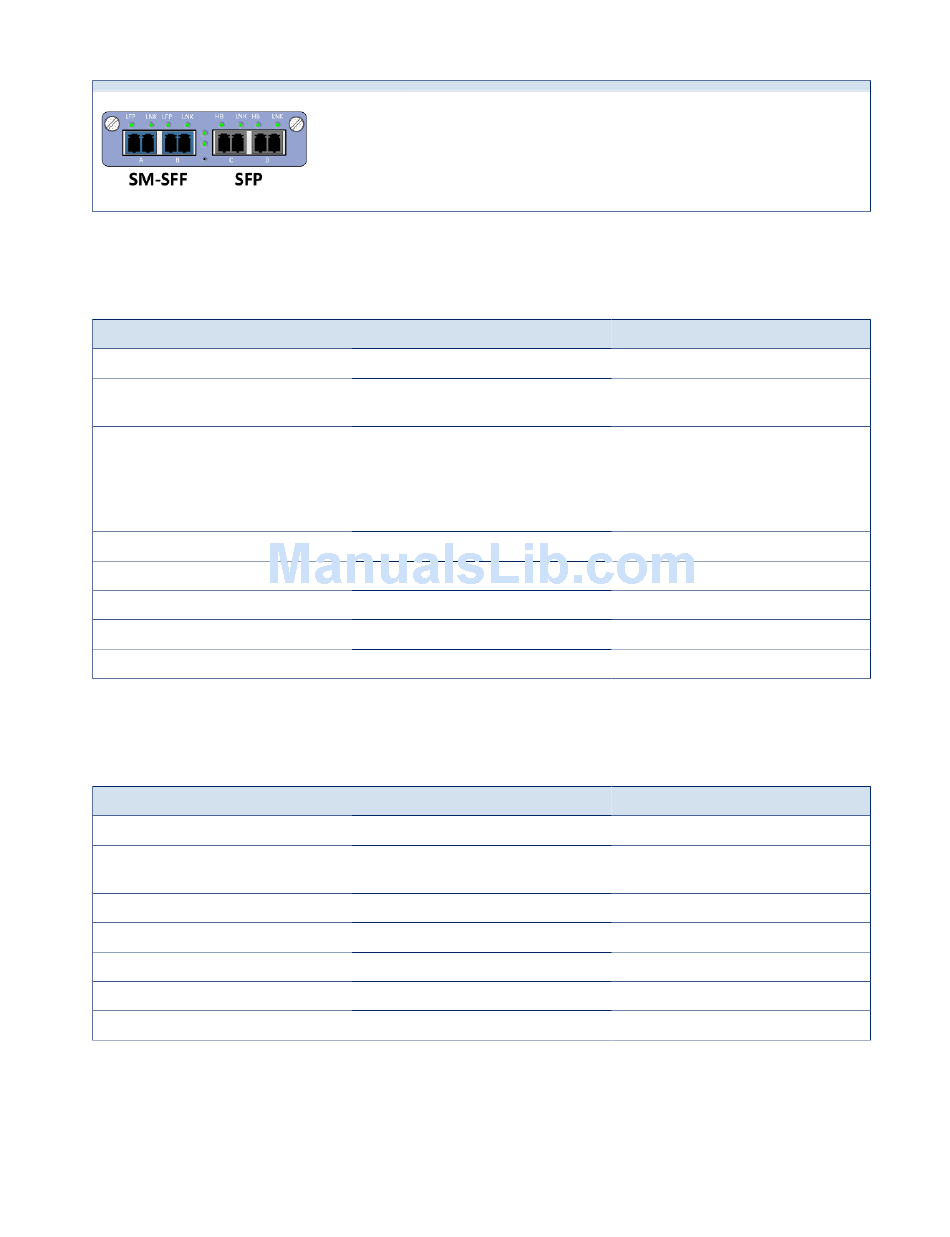

5642 (SM/SFP V-LINE Module)
2x 1000Mbps Multi Mode LC Network Ports
2x 100/1000Mbps SFP TAP Ports
Copper Ports
2x RJ45
Auto-negotiating or Fixed
10/100/1000Base-T Ethernet
Relays switch automatically when
the module detects a power failure to
provide an electrical bypass connection
between the Live RJ45 ports
None
Supported up to 16KB
Supported
Supported
< 50μs
Copper Ports
2x RJ45
Auto-negotiating or Fixed
10/100/1000Base-T Ethernet
None
None
Supported up to 16KB
Not applicable
Not applicable
™ ©
SmartNA-X 1G/10G User Guide 1.4 2015 Network Critical Solutions Limited
Fiber Ports
2x LC connectors
Fixed 100Base-X or 1000Base-X SMF
of MMF Ethernet interfaces
Optical switch switch automatically
when the module detects a power
failure to provide an optical bypass
connection between the Live LC
connectors
None
Supported up to 16KB
Supported
Not applicable
< 50μs
Fiber Ports
2x LC connectors
Fixed 100Base-X or 1000Base-X SFP
ethernet interfaces
None
None
Supported up to 16KB
Not applicable
Not applicable
