60 | Load Balancing | SmartNA-X 1G/10G Modular

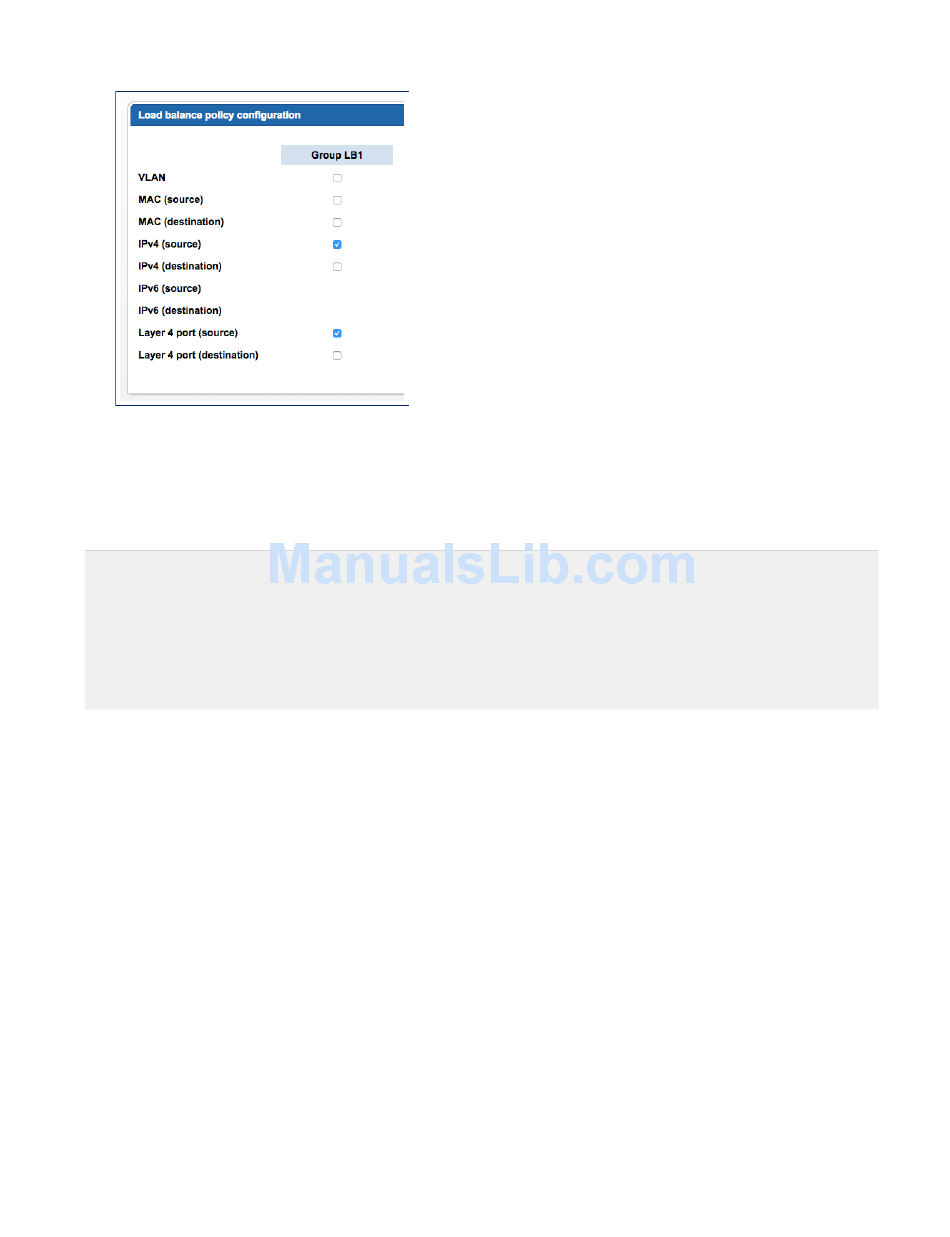

Figure 50: Choose load balancing policy headers
7. Click Review/apply and review pending changes. To apply these changes to the system, click Apply changes or click
'X' to cancel.
The complete set of CLI commands for the example configuration are shown below.
CONTROLLER>set map 3a to 3b
CONTROLLER>set map 3b to 3a
CONTROLLER>set map 3A 3B to LB1 require HTTP
CONTROLLER>set LB1 to 1C 1D 2C 2D
CONTROLLER>set lbheaders LB1 ipv4_src port_dest
CONTROLLER>commit
Committing maps
Committing filters
Committing load balance policy headers
™ ©
SmartNA-X 1G/10G User Guide 1.4 2015 Network Critical Solutions Limited
