190 | Intelligent Packet Processor (IPP) Module Specifications | SmartNA-X 1G/10G Modular

IPP Module front panel

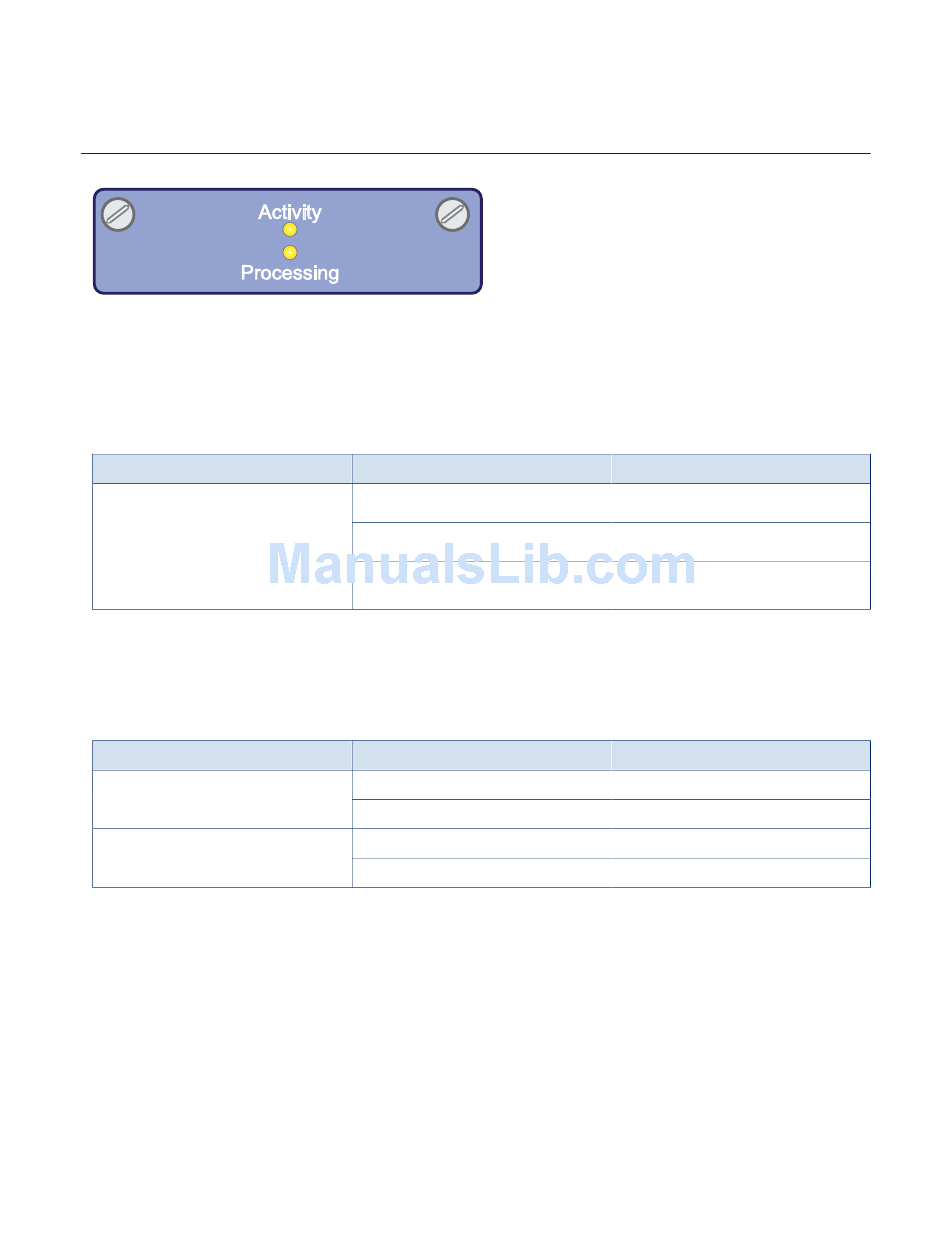

Figure 82: Front panel
Table 6: Chassis LED
LED
Power (on board)
Table 7: IPP module LEDs
LED
Activity (Top)
Processing (Bottom)
Status
OFF
BLUE
RED
Status
OFF
YELLOW (Flashing)
OFF
YELLOW (Flashing)
™ ©
SmartNA-X 1G/10G User Guide 1.4 2015 Network Critical Solutions Limited
Use
Module not powered.
Module booted.
Chassis 12V detected. Module not
booted.
Use
No packets being received.
Activity (packets received).
Not used.
Processing (packet matches detected).
