18 | Introduction | SmartNA-X 1G/10G Modular

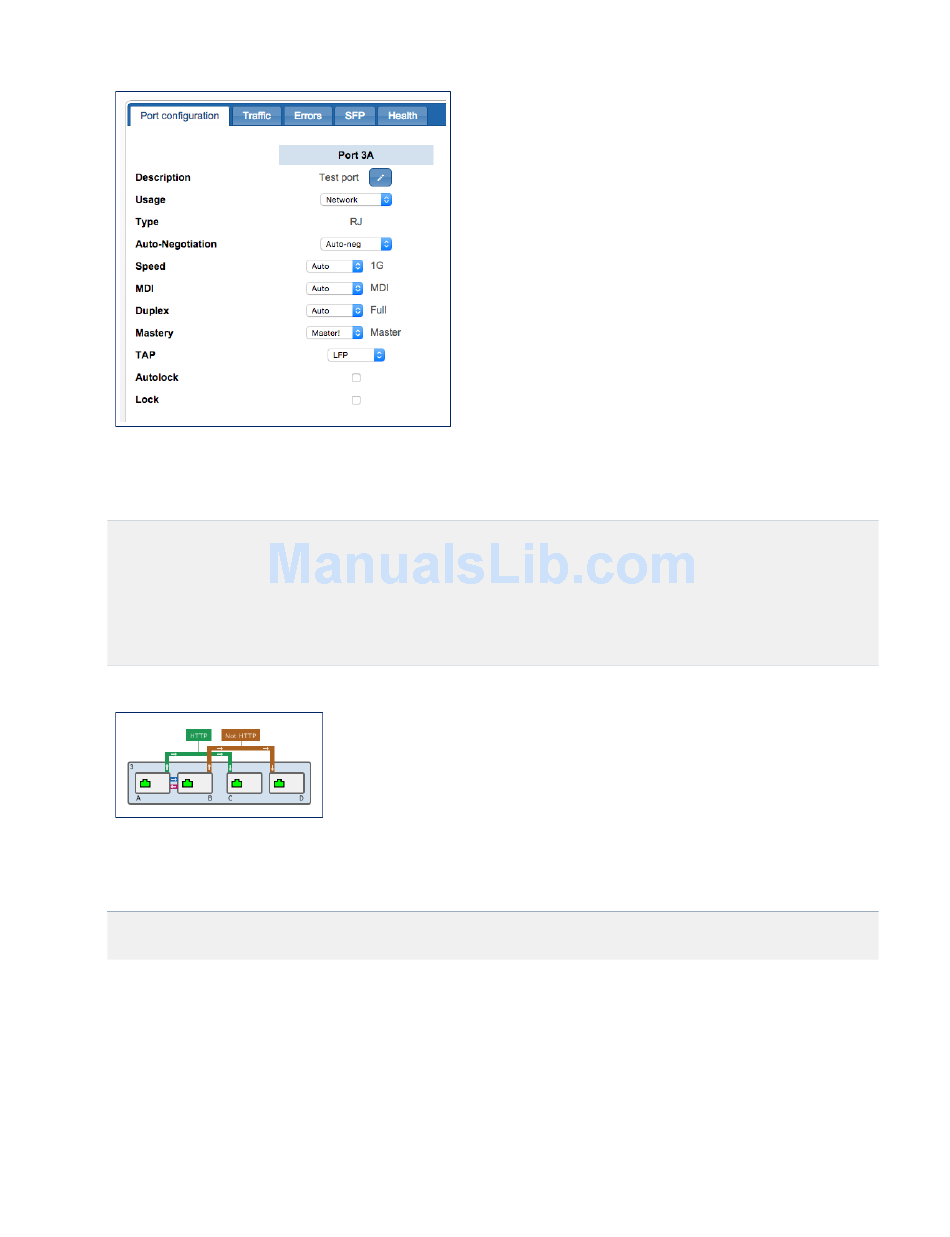

Figure 9: Configure port settings
The equivalent CLI commands for port 3A shown in the above figure are as follows:
CONTROLLER>select slot 3
SLOT3>set port A usage network
SLOT3>set port A autoneg
SLOT3>set port A mdi auto
SLOT3>set port A speed auto
SLOT3>set port A duplex auto
SLOT3>set port A mastering preferMaster
SLOT3>set port A tap LFP
5. If required, define and apply filters to limit the packets sent to the output ports to a subset of the overall data stream.
Figure 10: Apply filters
The equivalent CLI commands for the filters shown in the above figure are as follows:
SLOT3>set map 3a to 3c require HTTP
SLOT3>set map 3b to 3d exclude HTTP
6. Connect your network tool(s) to port C and/or D depending on whether you want to analyse data on the upstream or
downstream links, or both.
™ ©
