40 | SmartNA-X Administration | SmartNA-X 1G/10G Modular
Add TACACS+ accounting servers
1. Click on the chassis and select the Security tab.
Any existing TACACS+ accounting servers are shown in the TACACS+ accounting dialog, shown below.

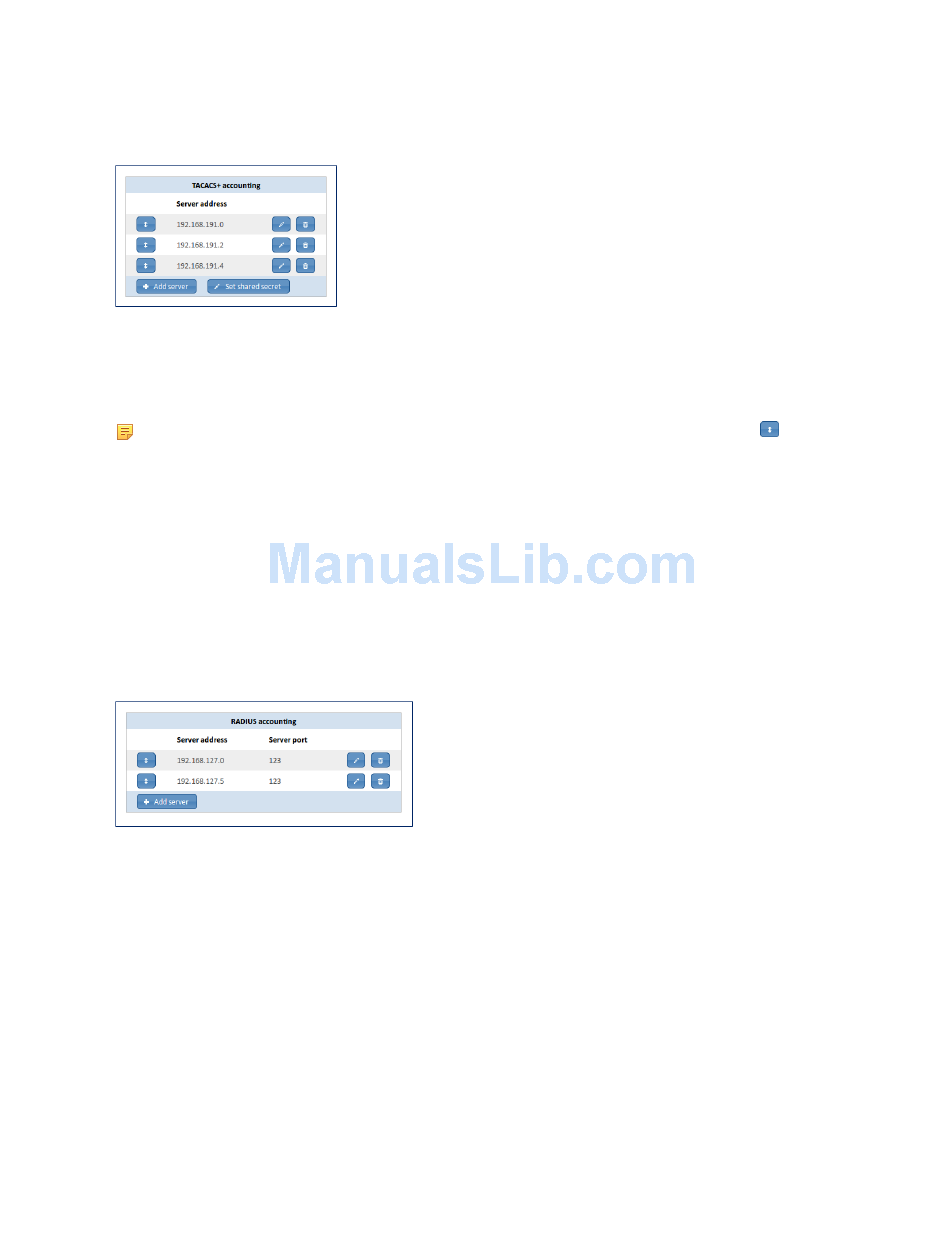

Figure 31: TACACS+ accounting servers list
2. Click Add server and enter the IPv4 address of the TACACS+ accounting server. The server is added to the list of
TACACS+ accounting servers.
Note: If you have multiple servers set up, you can organize server priority with the Arrange
the servers into the required order. Servers higher up the list have higher priority than those further down and
will be contacted first.
3. If you have not done so already, click Set shared secret and enter the global shared secret for the TACACS+
accounting servers.
4. Click Review/apply and review pending changes. To apply these changes to the system, click Apply changes or click
'X' to cancel.
Add RADIUS accounting servers
1. Click on the chassis and select the Security tab.
Any RADIUS accounting servers already been set up will be shown in the RADIUS accounting server list, shown
below.
Figure 32: RADIUS accounting server list
2. Click Add server and enter the RADIUS accounting server's parameters in the Add RADIUS server (shown below):
Server address—Enter the RADIUS server's IPv4 address.
•
• Server port—Enter the UDP port number, usually port 1813 for RADUS accounting servers.
• Shared secret—Enter the RADIUS accounting server's shared secret.
Confirm secret—Enter the shared secret again to confirm it.
•
™ ©
SmartNA-X 1G/10G User Guide 1.4 2015 Network Critical Solutions Limited
by dragging
