13
USING AN SD CARD

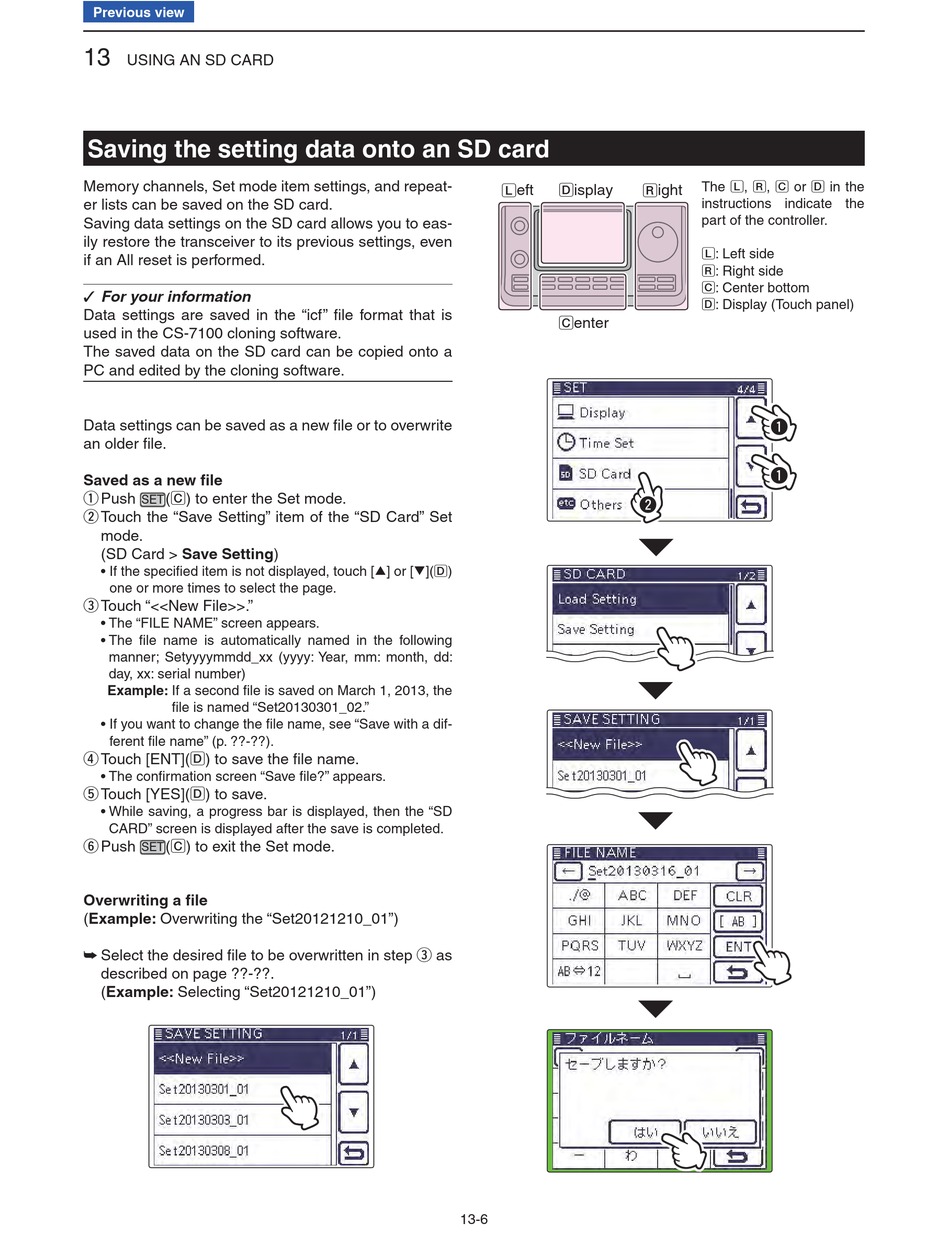

Saving the setting data onto an SD card

Memory channels, Set mode item settings, and repeat-
er lists can be saved on the SD card.
Saving data settings on the SD card allows you to eas-
ily restore the transceiver to its previous settings, even
if an All reset is performed.
✓
For your information
Data settings are saved in the "icf" fi le format that is
used in the CS-7100 cloning software.
The saved data on the SD card can be copied onto a
PC and edited by the cloning software.
Data settings can be saved as a new fi le or to overwrite
an older fi le.
Saved as a new fi le
q
Push (C) to enter the Set mode.
SET
w
Touch the "Save Setting" item of the "SD Card" Set
mode.
(SD Card > Save Setting)
• If the specifi ed item is not displayed, touch [∫] or [√](D)
one or more times to select the page.
e
Touch "<<New File>>."
• The "FILE NAME" screen appears.
• The fi le name is automatically named in the following
manner; Setyyyymmdd_xx (yyyy: Year, mm: month, dd:
day, xx: serial number)
Example: If a second fi le is saved on March 1, 2013, the
fi le is named "Set20130301_02."
• If you want to change the fi le name, see "Save with a dif-
ferent fi le name" (p. ??-??).
r D) to save the fi le name.
Touch [ENT](
• The confi rmation screen "Save fi le?" appears.
t D) to save.
Touch [YES](
• While saving, a progress bar is displayed, then the "SD
CARD" screen is displayed after the save is completed.
y
Push (C) to exit the Set mode.
SET
Overwriting a fi le
(Example: Overwriting the "Set20121210_01")
➥ Select the desired fi le to be overwritten in step e as
described on page ??-??.
(Example: Selecting "Set20121210_01")
L eft D isplay
C enter
w
●
13-6
The L, R, C or D in the
R ight
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch panel)
q
q
