13

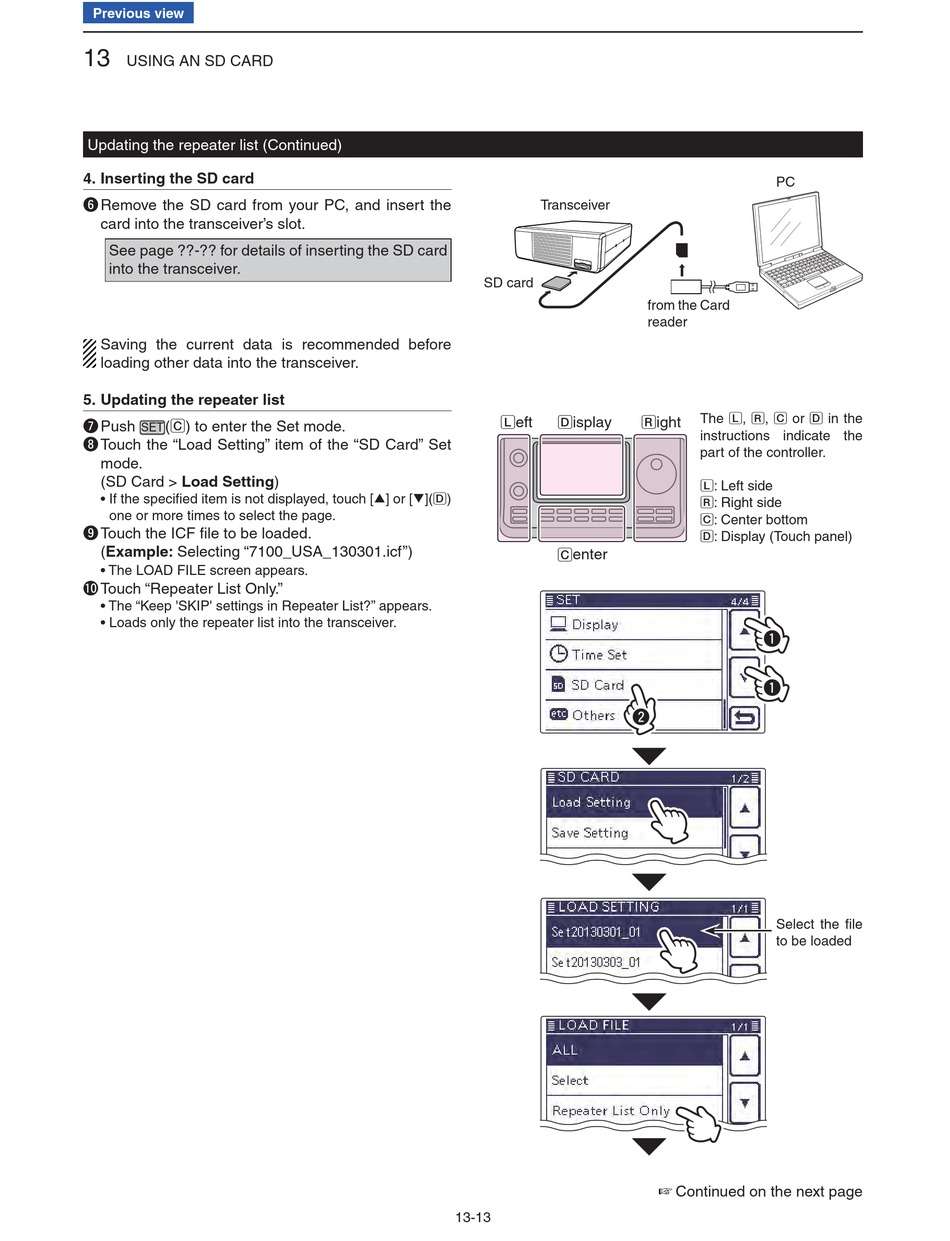

USING AN SD CARD
Updating the repeater list (Continued)
4. Inserting the SD card
y Remove the SD card from your PC, and insert the
card into the transceiver's slot.
See page ??-?? for details of inserting the SD card
into the transceiver.
Saving the current data is recommended before
loading other data into the transceiver.
5. Updating the repeater list
u Push
(C) to enter the Set mode.
SET
i Touch the "Load Setting" item of the "SD Card" Set
mode.
(SD Card > Load Setting)
• If the specifi ed item is not displayed, touch [∫] or [√](D)
one or more times to select the page.
o Touch the ICF fi le to be loaded.
(Example: Selecting "7100_USA_130301.icf")
• The LOAD FILE screen appears.
!0 Touch "Repeater List Only."
• The "Keep 'SKIP' settings in Repeater List?" appears.
• Loads only the repeater list into the transceiver.
Transceiver
SD card
L eft D isplay
C enter
w
●
13-13
PC
from the Card
reader
The L, R, C or D in the
R ight
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch panel)
q
q
Select the fi le
to be loaded
☞
Continued on the next page
