6
FUNCTIONS FOR TRANSMIT
Split frequency operation (Continued)
D

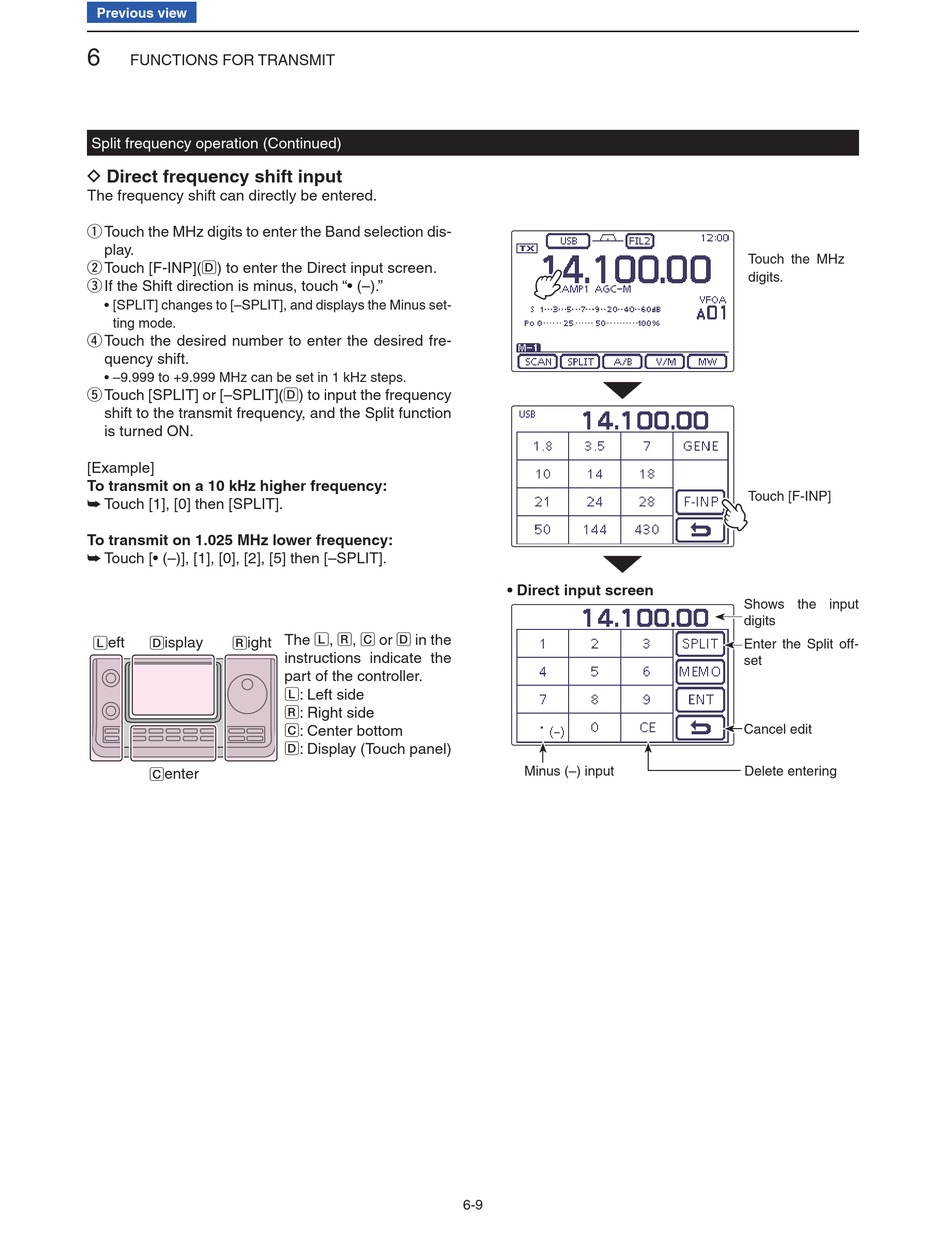

Direct frequency shift input
The frequency shift can directly be entered.
q
Touch the MHz digits to enter the Band selection dis-
play.
w D) to enter the Direct input screen.
Touch [F-INP](
e
If the Shift direction is minus, touch "• (–)."
• [SPLIT] changes to [–SPLIT], and displays the Minus set-
ting mode.
r
Touch the desired number to enter the desired fre-
quency shift.
• –9.999 to +9.999 MHz can be set in 1 kHz steps.
t
Touch [SPLIT] or [–SPLIT](
shift to the transmit frequency, and the Split function
is turned ON.
[Example]
To transmit on a 10 kHz higher frequency:
➥
Touch [1], [0] then [SPLIT].
To transmit on 1.025 MHz lower frequency:
➥
Touch [• (–)], [1], [0], [2], [5] then [–SPLIT].
L eft D isplay R ight
C enter
D) to input the frequency
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch panel)
• Direct input screen
Minus (–) input
6-9
Touch the MHz
digits.
Touch [F-INP]
Shows the input
digits
Enter the Split off-
set
Cancel edit
Delete entering
