1

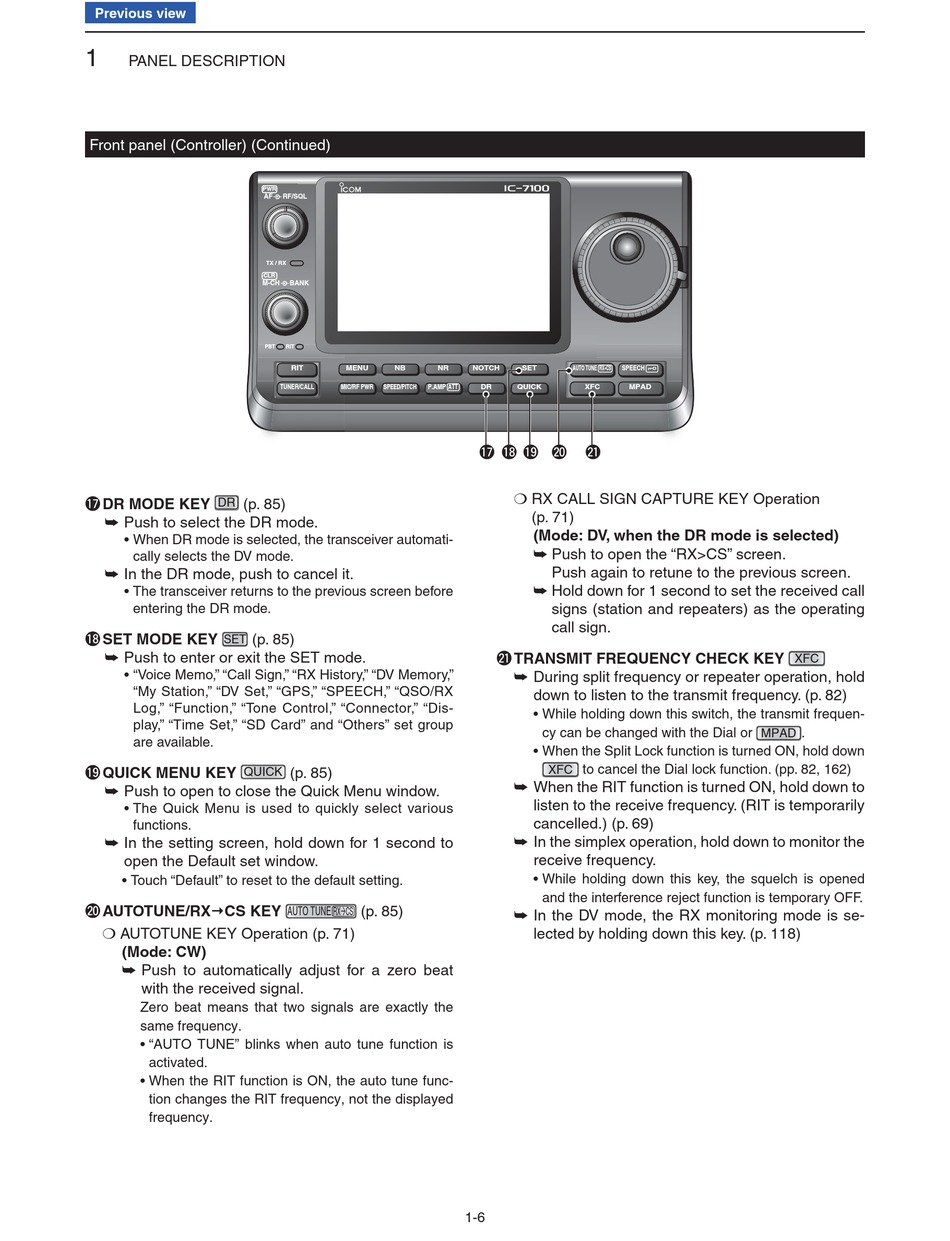

PANEL DESCRIPTION
Front panel (Controller) (Continued)
PWR
AF
CLR
M-CH
PBT
!7 DR MODE KEY
DR (p. 85)
➥ Push to select the DR mode.
• When DR mode is selected, the transceiver automati-
cally selects the DV mode.
➥ In the DR mode, push to cancel it.
• The transceiver returns to the previous screen before
entering the DR mode.
!8 SET MODE KEY
(p. 85)
SET
➥ Push to enter or exit the SET mode.
• "Voice Memo," "Call Sign," "RX History," "DV Memory,"
"My Station," "DV Set," "GPS," "SPEECH," "QSO/RX
Log," "Function," "Tone Control," "Connector," "Dis-
play," "Time Set," "SD Card" and "Others" set group
are available.
!9 QUICK MENU KEY
QUICK
➥ Push to open to close the Quick Menu window.
• The Quick Menu is used to quickly select various
functions.
➥ In the setting screen, hold down for 1 second to
open the Default set window.
• Touch "Default" to reset to the default setting.
@0 AUTOTUNE/RX€CS KEY
❍ AUTOTUNE KEY Operation (p. 71)
(Mode: CW)
➥ Push to automatically adjust for a zero beat
with the received signal.
Zero beat means that two signals are exactly the
same frequency.
• "AUTO TUNE" blinks when auto tune function is
activated.
• When the RIT function is ON, the auto tune func-
tion changes the RIT frequency, not the displayed
frequency.
RF/SQL
TX / RX
BANK
RIT
RIT MENU NB NR
TUNER/CALL MIC/RF PWR SPEED/PITCH P.AMP ATT
(p. 85)
(p. 85)
AUTO TUNE
RX CS
i7100
NOTCH SET AUTO TUNE RX ➔ CS SPEECH
DR QUICK XFC MPAD
!7 !8 !9 @0 @1
❍ RX CALL SIGN CAPTURE KEY Operation
(p. 71)
(Mode: DV, when the DR mode is selected)
➥ Push to open the "RX>CS" screen.
Push again to retune to the previous screen.
➥ Hold down for 1 second to set the received call
signs (station and repeaters) as the operating
call sign.
@1 TRANSMIT FREQUENCY CHECK KEY
➥ During split frequency or repeater operation, hold
down to listen to the transmit frequency. (p. 82)
• While holding down this switch, the transmit frequen-
cy can be changed with the Dial or
• When the Split Lock function is turned ON, hold down
to cancel the Dial lock function. (pp. 82, 162)
XFC
➥ When the RIT function is turned ON, hold down to
listen to the receive frequency. (RIT is temporarily
cancelled.) (p. 69)
➥ In the simplex operation, hold down to monitor the
receive frequency.
• While holding down this key, the squelch is opened
and the interference reject function is temporary OFF.
➥ In the DV mode, the RX monitoring mode is se-
lected by holding down this key. (p. 118)
1-6
