13
USING AN SD CARD

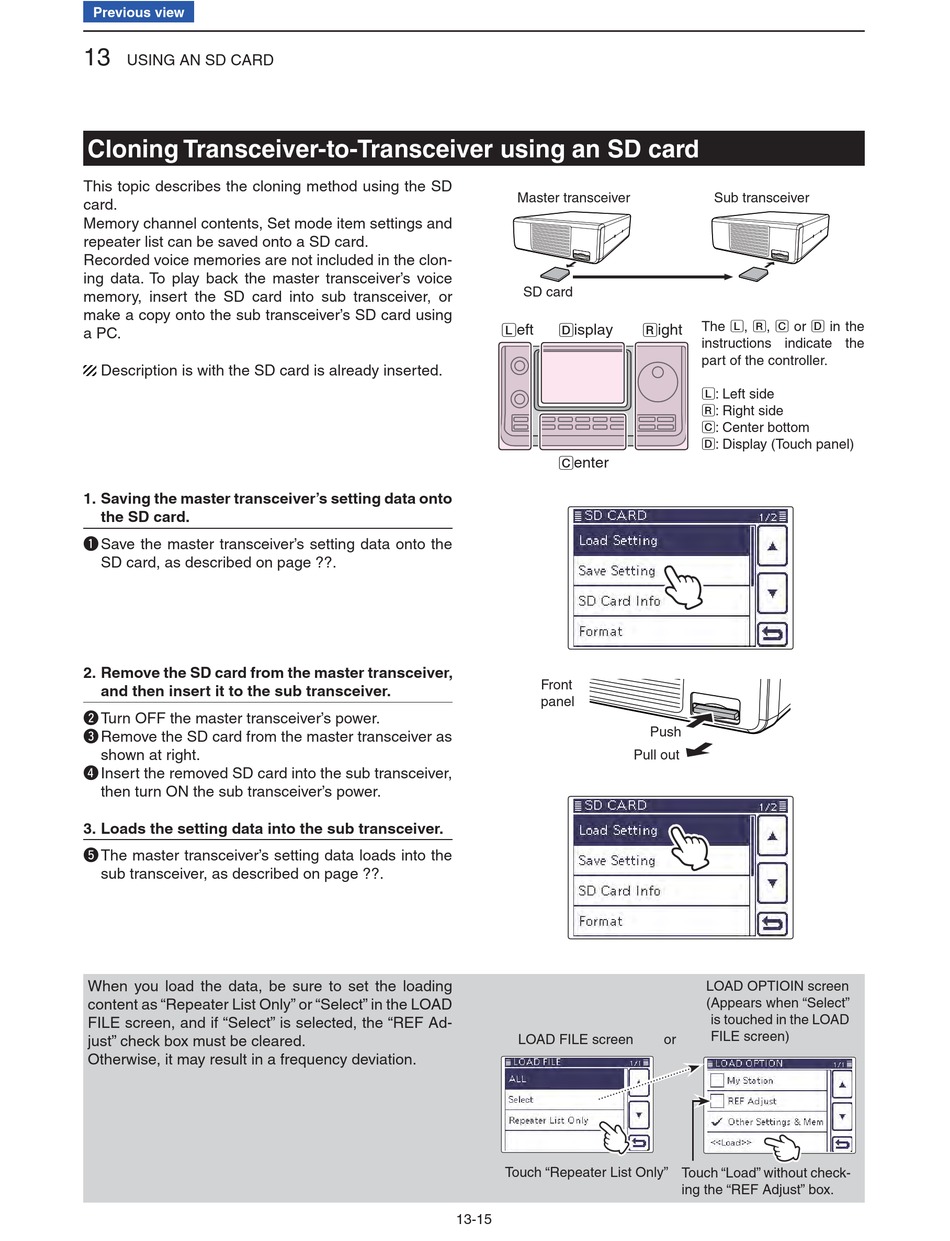

Cloning Transceiver-to-Transceiver using an SD card

This topic describes the cloning method using the SD
card.
Memory channel contents, Set mode item settings and
repeater list can be saved onto a SD card.
Recorded voice memories are not included in the clon-
ing data. To play back the master transceiver's voice
memory, insert the SD card into sub transceiver, or
make a copy onto the sub transceiver's SD card using
a PC.
Description is with the SD card is already inserted.
1. Saving the master transceiver's setting data onto
the SD card.
q Save the master transceiver's setting data onto the
SD card, as described on page ??.
2. Remove the SD card from the master transceiver,
and then insert it to the sub transceiver.
w Turn OFF the master transceiver's power.
e Remove the SD card from the master transceiver as
shown at right.
r Insert the removed SD card into the sub transceiver,
then turn ON the sub transceiver's power.
3. Loads the setting data into the sub transceiver.
t The master transceiver's setting data loads into the
sub transceiver, as described on page ??.
When you load the data, be sure to set the loading
content as "Repeater List Only" or "Select" in the LOAD
FILE screen, and if "Select" is selected, the "REF Ad-
just" check box must be cleared.
Otherwise, it may result in a frequency deviation.
Master transceiver
SD card
L eft D isplay
C enter
Front
panel
Pull out
LOAD FILE screen
Touch "Repeater List Only"
13-15
Sub transceiver
The L, R, C or D in the
R ight
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch panel)
Push
LOAD OPTIOIN screen
( Appears when "Select"
is touched in the LOAD
FILE screen)
or
Touch "Load" without check-
ing the "REF Adjust" box.
