- Page 1 Icom IC-718 'Quickstart' Manual May 2013 de VE7DSN...

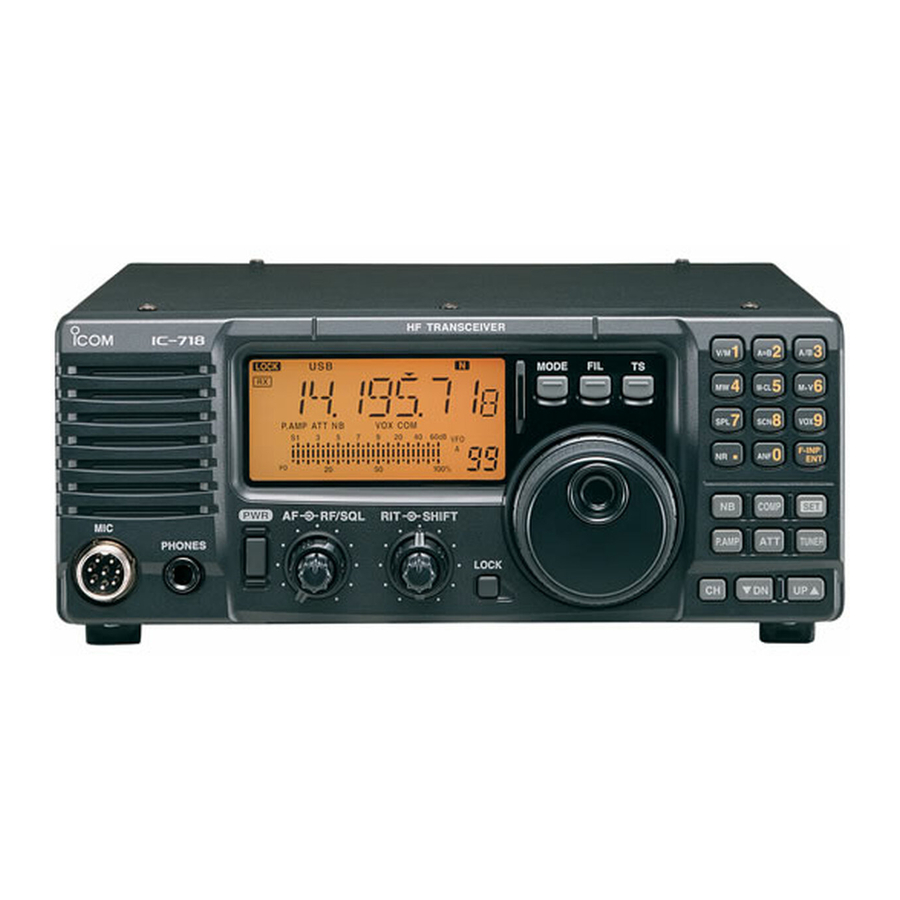

- Page 2 Of course, at the start of an incident, we will use conventional handwritten messaging. For this, we use the FT-8800 dual band VHF/UHF transceiver However, there may be a need for longer distance communications. We supply this with the Icom IC-718 HF Transceiver...
- Page 3 Power up the station - Remove front and back covers, set aside - Verify HF transceiver is connected to a HF antenna - Verify AC power plug is plugged into a power source - Turn on 12vdc power supply - Turn on power master switch (back of unit)
- Page 4 Turn on the Transceiver - Turn on, tune the HF Transceiver ( details next slide )
- Page 5 - Adjust volume and squelch to taste. You have no way to know what changes may have been made and left on the IC-718 the last time it is used. Therefore it is important to check both the 'Quick Set' and 'Settings' Avoid errors, accept no interruptions when performing these checklists Assumes channel is pre programmed in memory.
- Page 6 Verify 'Quick Set' Menus Quick Press ] POWER button to turn on the transceiver [ Press & Hold ] 1sec, [ SET ] button to enter 'Quick Set' mode One uses the [ Up ] & [ Dwn ] Buttons to navigate menus Rotate main tuning knob to adjust a setting within a menu...
- Page 7 'Quick Set' - RF Power [ Press & Hold ] 1sec, [ SET ] button to enter 'Quick Set' mode Use the [ Up ] & [ Dwn ] Buttons to navigate to 'RF power' Rotate main tuning knob to adjust power to anyone of 99 levels or H for the default, full power.
- Page 8 'Quick Set' - Mic gain [ Press & Hold ] 1sec, [ SET ] button to enter 'Quick Set' mode One uses the [ Up ] & [ Dwn ] Buttons to navigate to 'Mic gain' Rotate main tuning knob to adjust Mic gain to anyone of 99 levels or H.
- Page 9 'Quick Set' - Vox gain [ Press & Hold ] 1sec, [ SET ] button to enter 'Quick Set' mode One uses the [ Up ] & [ Dwn ] Buttons to navigate to 'Vox gain' Rotate main tuning knob to adjust Vox gain to anyone of 99 levels or H.
- Page 10 'Quick Set' - Vox delay [ Press & Hold ] 1sec, [ SET ] button to enter 'Quick Set' mode Use the [ Up ] & [ Dwn ] Buttons to navigate to 'Vox delay' Rotate main tuning knob to adjust Vox delay to any delay between 0 and 2 seconds in 0.1 increments...
- Page 11 'Quick Set' - Anti Vox level [ Press & Hold ] 1sec, [ SET ] button to enter 'Quick Set' mode One uses the [ Up ] & [ Dwn ] Buttons to navigate to 'Anti Vox level' Rotate main tuning knob to adjust 'Anti Vox level' to any of 100 increments.
- Page 12 'Quick Set' - Dimmer [ Press & Hold ] 1sec, [ SET ] button to enter 'Quick Set' mode One uses the [ Up ] & [ Dwn ] Buttons to navigate to 'Dimmer' Rotate main tuning knob to adjust 'Dimmer' to one of Off, Low, High.
- Page 13 Quick Set & then, Initial Set mode There are two 'Set' modes in the IC-718 transceiver. Previous slides have dealt with the 'Quick Set' mode but we must also realize that the 'Initial Set' Mode may have been changed. The next slides offers a checklist for the 'Initial Set' mode.
- Page 14 Enter 'Initial Set' mode [ Press & Hold ] , [ SET ] button and [ Press & Hold ] [ Pwr ] to enter 'Initial Set' mode One uses the [ Up ] & [ Dwn ] Buttons to navigate to navigate the options Rotating the main tuning knob...
- Page 15 'Initial Set' mode – RF/SQL p.20 One uses the [ Up ] & [ Dwn ] Buttons to navigate to navigate to RF/SQL Rotating the main tuning knob for one of: rS = optimizes rf & squelch settings At = use for best AM mode quality Sq = Sets squelch level only Default is 'rS'...
- Page 16 'Initial Set' mode – Beep p. 44 One uses the [ Up ] & [ Dwn ] Buttons to navigate to navigate to Beep Rotating the main tuning knob for Off or On Some operators do not like a 'beep' sounding each time they touch a button so it can be toggled On or Off Default is 'On'...
- Page 17 'Initial Set' mode – Beep level p. 44 One uses the [ Up ] & [ Dwn ] Buttons to navigate to navigate to Beep level Rotating the main tuning knob turn band edge warning Off or On Default is 'On'...
- Page 18 'Initial Set' mode – Beep level p. 44 One uses the [ Up ] & [ Dwn ] Buttons to navigate to navigate to Beep level Rotating the main tuning knob turn band edge warning Off or On Default is 'On'...
- Page 19 'Initial Set' mode – Meter peak hold p. 45 One uses the [ Up ] & [ Dwn ] Buttons to navigate to navigate to Meter peak hold Rotating the main tuning knob to set Off or On. Briefly, indicates last peak meter reading Default is 'On'...
- Page 20 'Initial Set' mode – Scan speed p. 45 One uses the [ Up ] & [ Dwn ] Buttons to navigate to navigate to Scan spd Rotating the main tuning knob to set Hi or Lo. Sets the rate of scanning frequencies or memories Default is 'Hi'...
- Page 21 'Initial Set' mode – AM noise blanker p. 45 One uses the [ Up ] & [ Dwn ] Buttons to navigate to navigate to AM NB Rotating the main tuning knob to set Off or On. May improve reception in noisy conditions Default is 'On'...
- Page 22 'Initial Set' mode – Auto TS p. 45 One uses the [ Up ] & [ Dwn ] Buttons to navigate to navigate to Auto TS Rotating the main tuning knob to set Off or On. OFF = 2.5Khz / revolution of tuning dial On = 50.0 Khz / revolution Default is 'On'...
- Page 23 'Initial Set' mode – Tuner type p. 46 One uses the [ Up ] & [ Dwn ] Buttons to navigate to navigate to Tuner Rotating the main tuning knob to set '4'. No: No tuner connected 4: AH-4 tuner connected 8: AT-180 tuner connected Default is 'No'...
- Page 24 'Initial Set' mode – Auto tune p. 46 One uses the [ Up ] & [ Dwn ] Buttons to navigate to navigate to AT - tune Rotating the main tuning knob to set 'On'. Off = Auto tuner is not activated On = Auto tuner is activated Default is 'Off'...
- Page 25 'Initial Set' mode – PTT tune p. 46 One uses the [ Up ] & [ Dwn ] Buttons to navigate to navigate to PTT - Tune Rotating the main tuning knob to set 'On'. Off = Auto tuner does not activate on pressing PTT button On = Auto tuner activates on pressing PTT button Default is 'Off'...
-
Page 26: Meter Selection
Meter Selection Repeatedly pressing the 'SET' button will cause the meter display to step through: PO - RF power output ALC - Alc level SWR - SWR on the transmission line... - Page 27 Voice procedure hints Speak slowly and clearly Pause every 3 to 5 words when messaging If assigned, identify with your 'tactical' callsign, otherwise the stations formal callsign 'Check In' with net control every half hour Maintain the logbook and copies of formal messages...
- Page 28 3.652 mhz CW Pacific Region Traffic net tba 3.613.5 usb - VE7RAH RMS Pactor Gateway – EMBC office tba 7.089.5 usb - VE6DXI RMS Pactor Gateway - Alberta ( see 'IC-718- comprehensive memory channel list ' for the full list )
- Page 29 Summary This slide set reviewed the key features you need know to use the IC 718 transceiver in 'voice' mode. More detailed instructions can be found in the printed manual which should be located in the lower tray of this Grab and Go box.
- Page 30 Questions or Comments ??? Tnx fer ur attn de VE7DSN...
