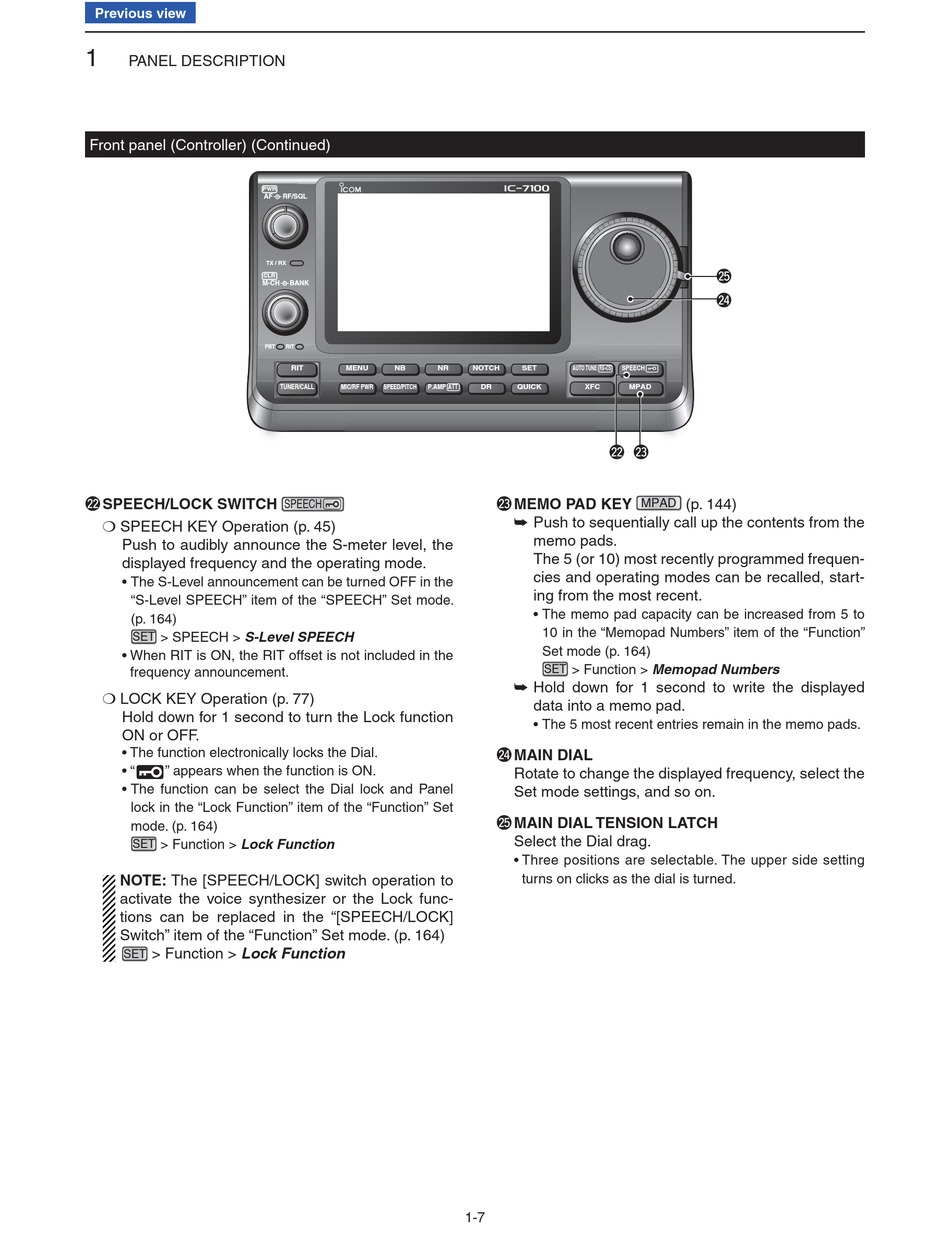

PANEL DESCRIPTION
Front panel (Controller) (Continued)
PWR
AF
CLR
M-CH
PBT
@2 SPEECH/LOCK SWITCH
❍ SPEECH KEY Operation (p. 45)
Push to audibly announce the S-meter level, the
displayed frequency and the operating mode.
• The S-Level announcement can be turned OFF in the
"S-Level SPEECH" item of the "SPEECH" Set mode.
(p. 164)
SET > SPEECH > S-Level SPEECH
• When RIT is ON, the RIT offset is not included in the
frequency announcement.
❍ LOCK KEY Operation (p. 77)
Hold down for 1 second to turn the Lock function
ON or OFF.
• The function electronically locks the Dial.
• " " appears when the function is ON.
• The function can be select the Dial lock and Panel
lock in the "Lock Function" item of the "Function" Set
mode. (p. 164)
SET > Function > Lock Function
NOTE: The [SPEECH/LOCK] switch operation to
activate the voice synthesizer or the Lock func-
tions can be replaced in the "[SPEECH/LOCK]
Switch" item of the "Function" Set mode. (p. 164)
> Function > Lock Function
SET
RF/SQL
TX / RX
BANK
RIT
RIT MENU NB NR
TUNER/CALL MIC/RF PWR SPEED/PITCH P.AMP ATT
SPEECH
i7100
NOTCH SET AUTO TUNE RX ➔ CS SPEECH
DR QUICK XFC MPAD
@2 @3
@3 MEMO PAD KEY
MPAD
➥
Push to sequentially call up the contents from the
memo pads.
The 5 (or 10) most recently programmed frequen-
cies and operating modes can be recalled, start-
ing from the most recent.
• The memo pad capacity can be increased from 5 to
10 in the "Memopad Numbers" item of the "Function"
Set mode (p. 164)
SET > Function > Memopad Numbers
➥
Hold down for 1 second to write the displayed
data into a memo pad.
• The 5 most recent entries remain in the memo pads.
@4 MAIN DIAL
Rotate to change the displayed frequency, select the
Set mode settings, and so on.
@5 MAIN DIAL TENSION LATCH
Select the Dial drag.
• Three positions are selectable. The upper side setting
turns on clicks as the dial is turned.
1-7
@5
@4
(p. 144)
