Icom IC-7100 Instruction Manual page 3

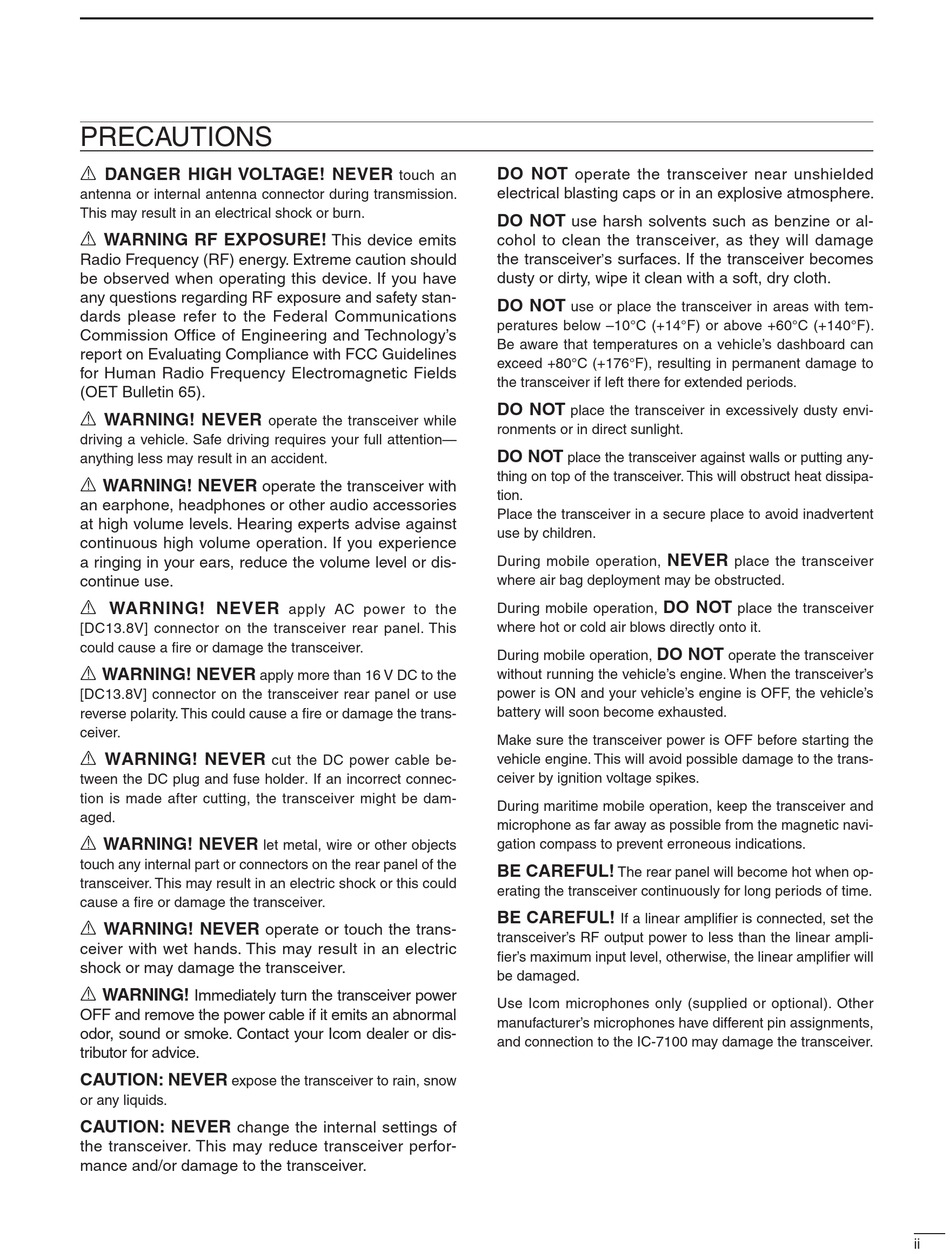

PRECAUTIONS
R DANGER HIGH VOLTAGE! NEVER
antenna or internal antenna connector during transmission.
This may result in an electrical shock or burn.
R WARNING RF EXPOSURE!
Radio Frequency (RF) energy. Extreme caution should
be observed when operating this device. If you have
any questions regarding RF exposure and safety stan-
dards please refer to the Federal Communications
Commission Offi ce of Engineering and Technology's
report on Evaluating Compliance with FCC Guidelines
for Human Radio Frequency Electromagnetic Fields
(OET Bulletin 65).
R WARNING! NEVER
driving a vehicle. Safe driving requires your full attention—
anything less may result in an accident.
R WARNING! NEVER
an earphone, headphones or other audio accessories
at high volume levels. Hearing experts advise against
continuous high volume operation. If you experience
a ringing in your ears, reduce the volume level or dis-
continue use.
R WARNING! NEVER
[DC13.8V] connector on the transceiver rear panel. This
could cause a fi re or damage the transceiver.
R WARNING! NEVER
[DC13.8V] connector on the transceiver rear panel or use
reverse polarity. This could cause a fi re or damage the trans-
ceiver.
R WARNING! NEVER
tween the DC plug and fuse holder. If an incorrect connec-
tion is made after cutting, the transceiver might be dam-
aged.
R WARNING! NEVER
touch any internal part or connectors on the rear panel of the
transceiver. This may result in an electric shock or this could
cause a fi re or damage the transceiver.
R WARNING! NEVER
ceiver with wet hands. This may result in an electric
shock or may damage the transceiver.
R WARNING!
Immediately turn the transceiver power
OFF and remove the power cable if it emits an abnormal
odor, sound or smoke. Contact your Icom dealer or dis-
tributor for advice.
CAUTION: NEVER
expose the transceiver to rain, snow
or any liquids.
CAUTION: NEVER
change the internal settings of
the transceiver. This may reduce transceiver perfor-
mance and/or damage to the transceiver.
touch an
This device emits
operate the transceiver while
operate the transceiver with
apply AC power to the
apply more than 16 V DC to the
cut the DC power cable be-
let metal, wire or other objects
operate or touch the trans-
DO NOT
operate the transceiver near unshielded
electrical blasting caps or in an explosive atmosphere.
DO NOT
use harsh solvents such as benzine or al-
cohol to clean the transceiver, as they will damage
the transceiver s surfaces. If the transceiver becomes
'
dusty or dirty, wipe it clean with a soft, dry cloth.
DO NOT
use or place the transceiver in areas with tem-
peratures below –10°C (+14°F) or above +60°C (+140°F).
Be aware that temperatures on a vehicle's dashboard can
exceed +80°C (+176°F), resulting in permanent damage to
the transceiver if left there for extended periods.
DO NOT
place the transceiver in excessively dusty envi-
ronments or in direct sunlight.
DO NOT
place the transceiver against walls or putting any-
thing on top of the transceiver. This will obstruct heat dissipa-
tion.
Place the transceiver in a secure place to avoid inadvertent
use by children.
NEVER
During mobile operation,
where air bag deployment may be obstructed.
DO NOT
During mobile operation,
where hot or cold air blows directly onto it.
DO NOT
During mobile operation,
without running the vehicle's engine. When the transceiver's
power is ON and your vehicle's engine is OFF, the vehicle's
battery will soon become exhausted.
Make sure the transceiver power is OFF before starting the
vehicle engine. This will avoid possible damage to the trans-
ceiver by ignition voltage spikes.
During maritime mobile operation, keep the transceiver and
microphone as far away as possible from the magnetic navi-
gation compass to prevent erroneous indications.
BE CAREFUL!
The rear panel will become hot when op-
erating the transceiver continuously for long periods of time.
BE CAREFUL!
If a linear amplifi er is connected, set the
transceiver's RF output power to less than the linear ampli-
fi er's maximum input level, otherwise, the linear amplifi er will
be damaged.
Use Icom microphones only (supplied or optional). Other
manufacturer's microphones have different pin assignments,
and connection to the IC-7100 may damage the transceiver.
place the transceiver
place the transceiver
operate the transceiver
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
ii
