Install the Keypad, Display, and Display Power
Converter
1. Route the Keypad flex data and ground cables into the Right
Cover Assembly through the hole provided for the Keypad.
2. Place the Keypad into position and hold. Turn the Right Cover
Assembly over and position the Display Assembly onto the
threaded studs of the Keypad. Secure using four standoffs with
a 1/4" socket or wrench.
3. Attach the Keypad grounding flex cable to the cover standoff as
shown in Figure 5-4.
4. Secure the Display Power Converter onto the Display standoffs
using four kepnuts with a 1/4" socket or wrench. Torque to 6 in-
lbs.
102 Assembly\Disassembly

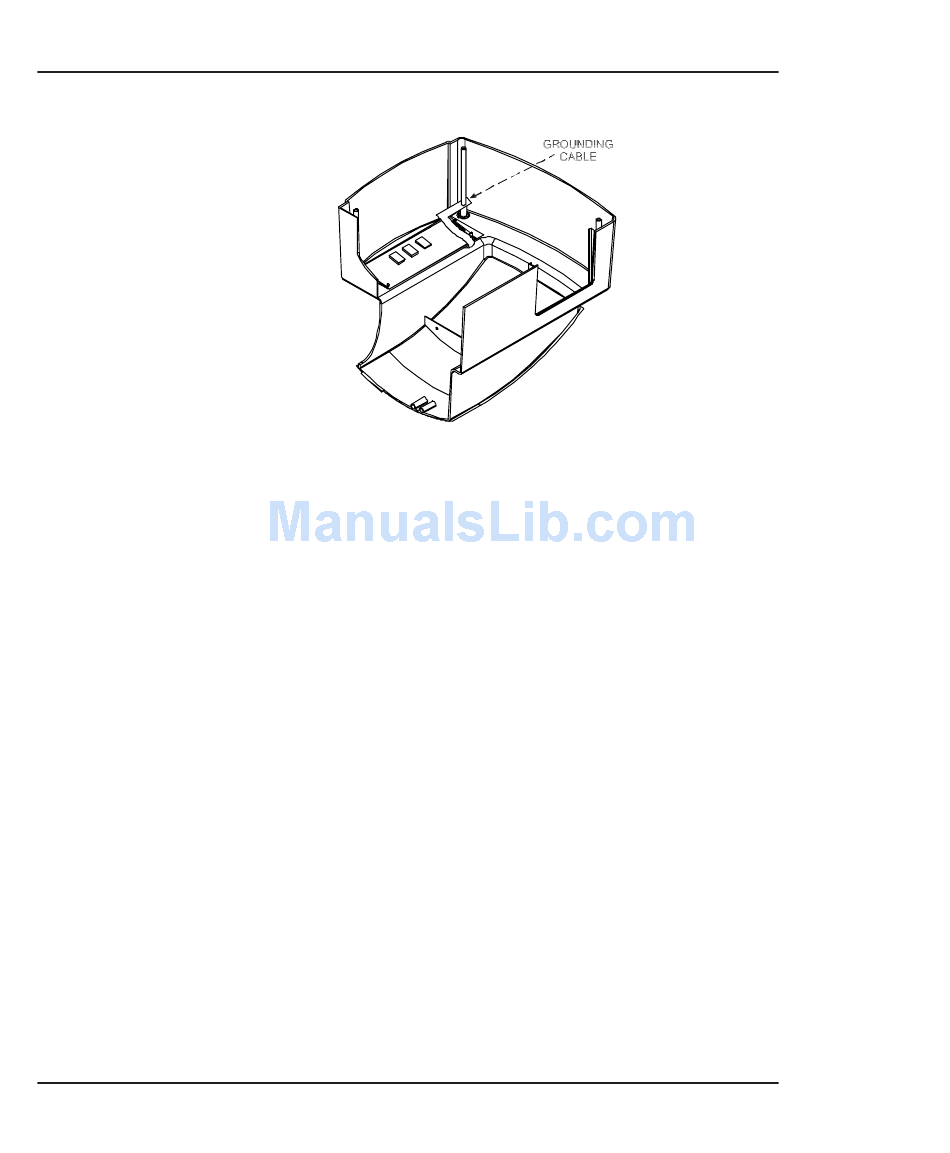

Figure 5-4. Keypad Grounding Connection.
