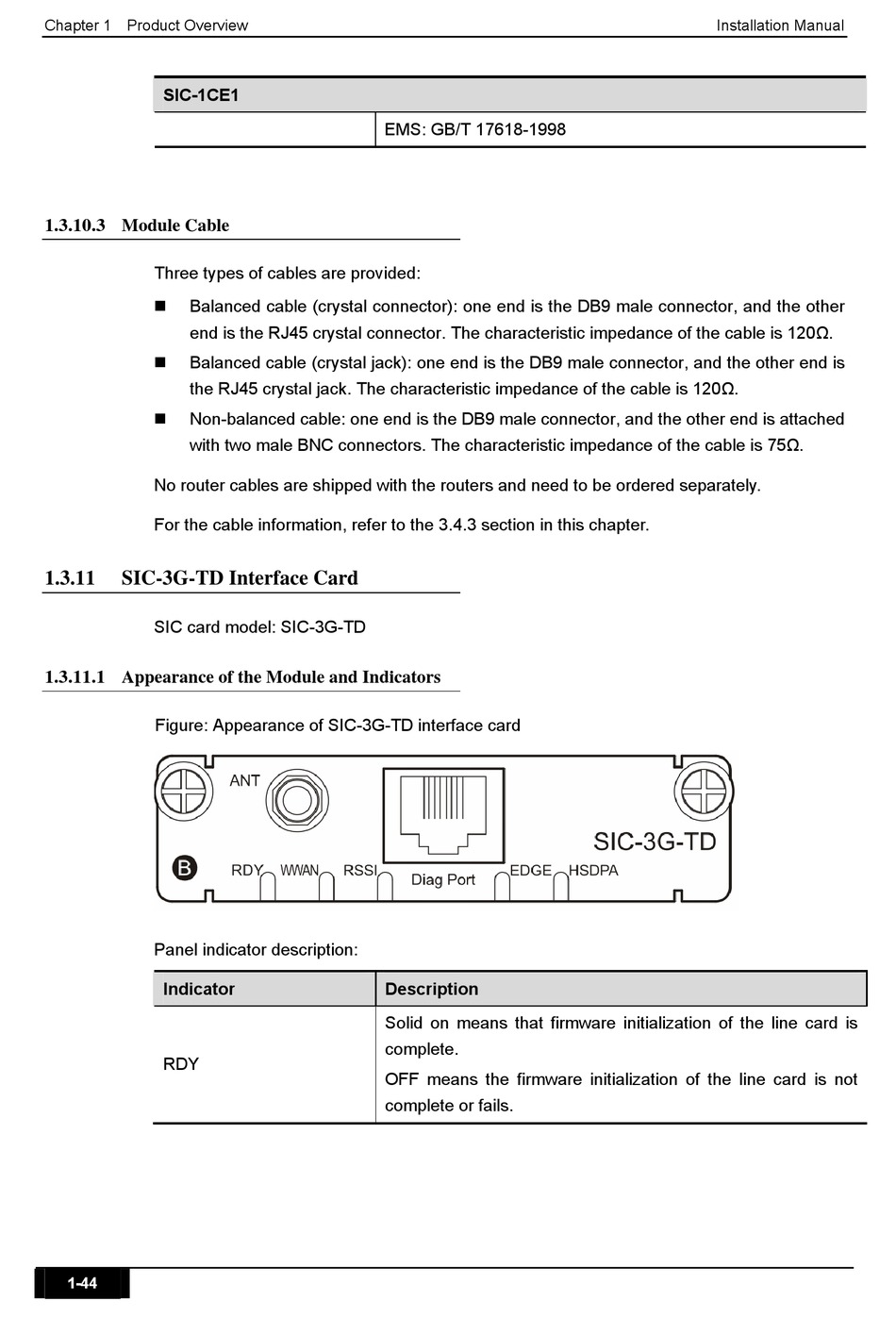

Chapter 1 Product Overview
SIC-1CE1
1.3.10.3 Module Cable
Three types of cables are provided:
 Balanced cable (crystal connector): one end is the DB9 male connector, and the other
end is the RJ45 crystal connector. The characteristic impedance of the cable is 120Ω.
 Balanced cable (crystal jack): one end is the DB9 male connector, and the other end is
the RJ45 crystal jack. The characteristic impedance of the cable is 120Ω.
Non-balanced cable: one end is the DB9 male connector, and the other end is attached

with two male BNC connectors. The characteristic impedance of the cable is 75Ω.
No router cables are shipped with the routers and need to be ordered separately.
For the cable information, refer to the 3.4.3 section in this chapter.
1.3.11

SIC-3G-TD Interface Card

SIC card model: SIC-3G-TD
1.3.11.1 Appearance of the Module and Indicators
Figure: Appearance of SIC-3G-TD interface card
Panel indicator description:
Indicator
RDY
1-44
EMS: GB/T 17618-1998
Description
Solid on means that firmware initialization of the line card is
complete.
OFF means the firmware initialization of the line card is not
complete or fails.
